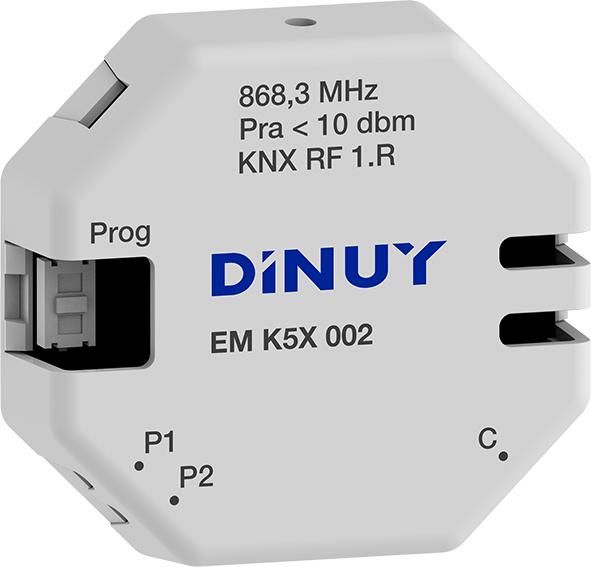

KNX-RF Pushbutton Interface
EMK5X002
• Wireless KNX RF S-Mode transmitter with 2 pushbutton inputs.
• The Pushbutton Interface incorporates 2 inputs, each of which can be parameterized individually through the ETS:
· Acting on 1 or 2 independent output channels.
· Function of each input:
· Switch.
· Timed Start/Stop.
· Dimmer.
· Multiple Switch.
· Shutter control.
· Scene control.
· Fixed value/Forced.
• The Temperature Sensor incorporates different options that must be parameterized:
· Transmission frequency.
· Over-heating or over-cooling alarms.
· Temperature sensor calibration.
• Perfect solution for using in conventional installations without placing KNX bus cables.
• Communication with the KNX Bus must be carried out using a KNX / KNX RF S-Mode media coupler.
| Category | Value |
|---|---|
| Catalog Item Name | KNX-RF Pushbutton Interface |
| Application Program Name | DINUY KNX-RF Push button Interface |
| Order Number | EMK5X002 |
| Rail Mounted | No |
| Manufacturer Website | Dinuy |
