KNX-SA41.230.16.1

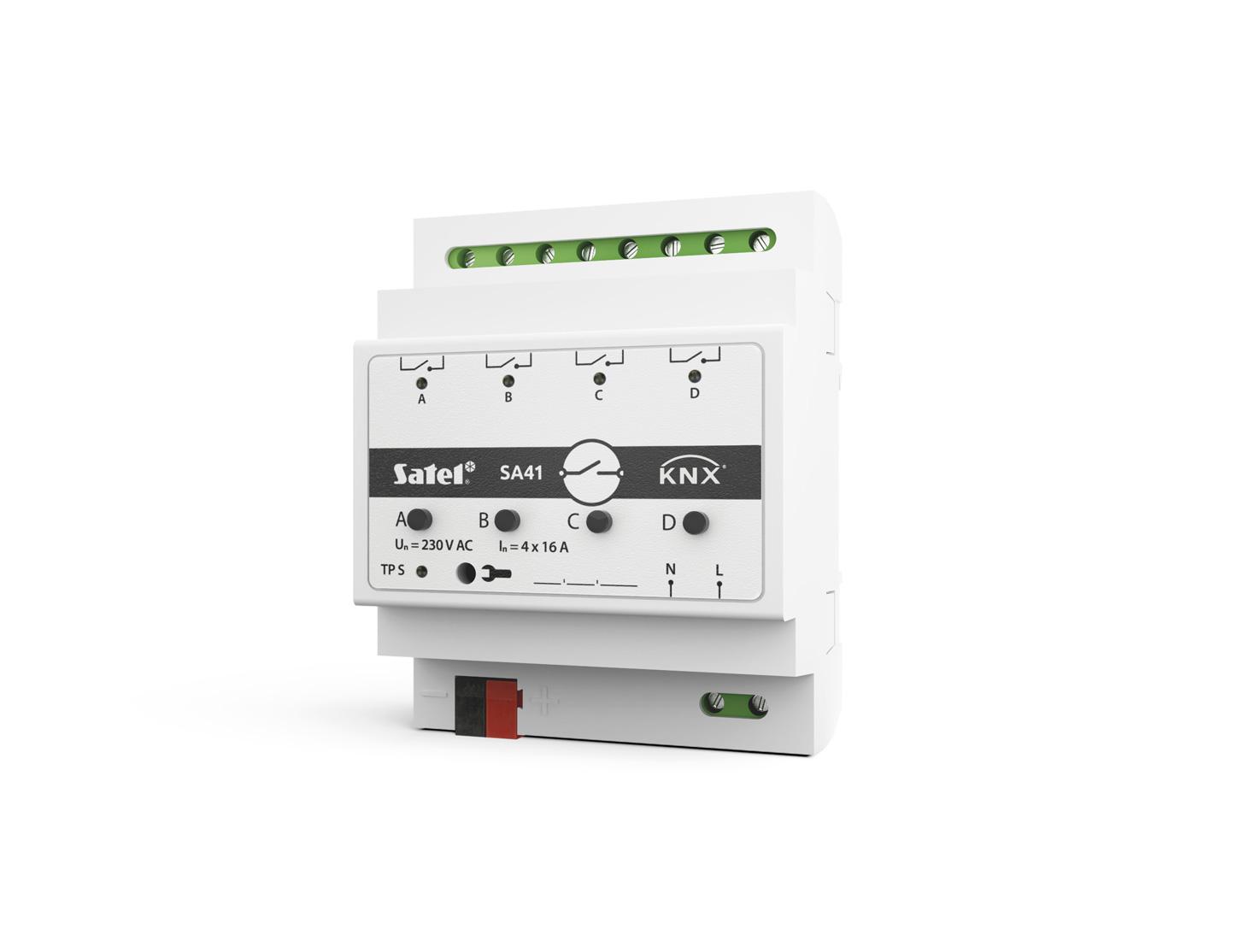

The KNX-SA41 module is a universal switch actuator, which makes it possible to control electrical devices (lighting, sirens, ventilation). The module constitutes an interface between the electrical devices and the KNX system. Signals received from various sensors and other control devices are converted, via the module, into concrete actions, such as switching on/off light or fan. The KNX-SA41 module has 4 relay outputs. Each of them corresponds to one logical channel. Features • communication with KNX bus via integrated bus connector • feedback on the state of module and individual channels • behavior of each channel can be defined in case of KNX bus voltage loss and recovery • behavior of each channel can be defined in case of mains voltage recovery • time functions (flashing, on/off delay, staircase light function with advance warning option and operating time change) • logic functions (AND, NAND, OR, NOR, XOR, XNOR) • threshold value function • safety functions • state forcing functions • scenes for each of the channels can be called up by using 1- and 8-bit commands • manual control of each channel state by using buttons situated on enclosure • status LEDs for each channel • capability of switching between resistive, inductive and capacitive loads • module configuration using ETS software • mounted in distribution boxes, on DIN rail (35 mm)
