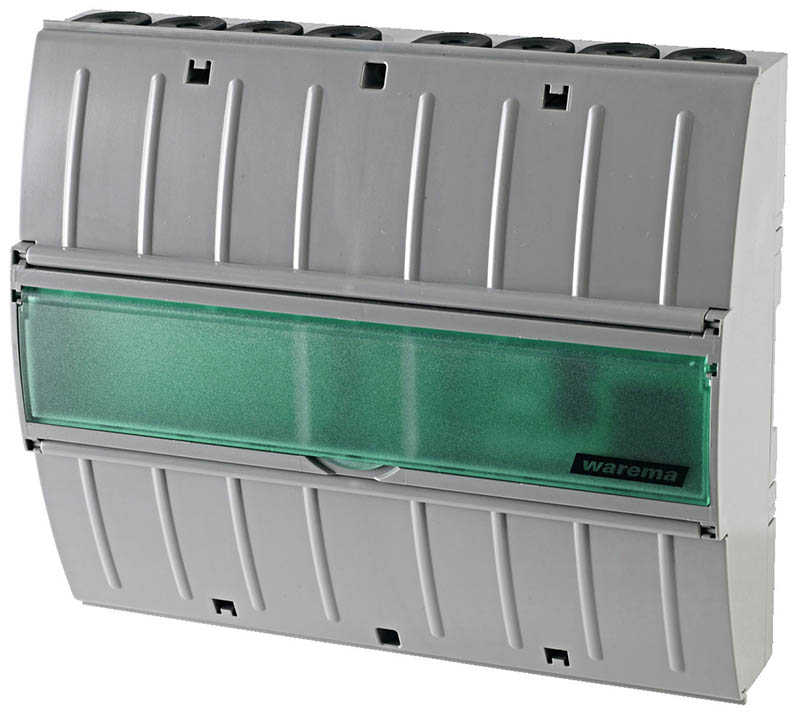

KNX secure 6M230.16I AP v2

The KNX secure actuator in surface-mounted housing enables the individual control and parameterization of up to six 230 V AC sun shading drives. The free KNX actuators app for smartphones (Bluetooth) helps you with commissioning. Up to 16 freely parameterisable binary inputs (e.g. switching, dimming, venetian blind control, scenario push button, free state and edge evaluation) open up a wide range of possible applications. The integrated automation functions are suitable for both simple and complex requirements. The actuator has a wind alarm, sun control, slat tracking and a connection to presence sensors and window contacts. It also takes the building condition into consideration (heating/cooling). Measuring values can be evaluated directly via the function inputs as required. The individual functions can be flexibly prioritised. A wide range of status objects deliver precise information on the current state of the actuator and the position of the sun shading system. Future function and security updates can be easily imported via KNX using the WAREMA KNX Service app. **Information on the program versions:** Program version 2.1 / shipped starting with device identification V005 / compatible firmware `2007379_20x_xxx` Information regarding the firmware supplied can be found on the device on the double label beneath the green cover. In addition, the information can be found on the packaging label. www.warema.com/knx
