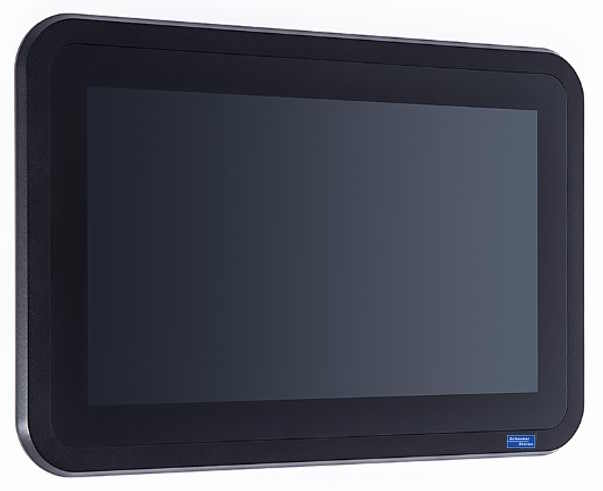

KNX Touch 10

The KNX Touch 10” is adapted primarily for operation and visualisation in façade applications.
Façade automation is carried out depending on the number of different façade controls required on the building.
The façade calculation is carried out in an external KNX device such as the KNX-GPS-24VDC weather station (art. no. 19416581, 8 façades) or the KNX shading control unit BZ-24 (art. no. 19416030, 24 fa-çades).

Functions
1. Home page with date and time display. Local weather data, outside temperature, brightness,
precipitation, wind speed in m/s or alternatively km/h, air pressure (optional).
2. Control, display and parameter settings for up to 32 façades.
3. Settings for each façade regarding shading: solar threshold value in lux, extension delay, re-traction delay and actuation of
shading.
Indoor temperature threshold, outside temperature threshold in °C and actuation for each threshold. Wind threshold value in
m/s or alternatively km/h.
4. Global twilight limit value in lux for night closing with activation per façade.
5. 8-channel weekly timer with activation per façade.
6. 4-channel calendar timer with activation per façade.
7. One page for special functions, for a maximum of 12 functions such as switching, dimming, RGB actuation, blind actuation,
measured values.
