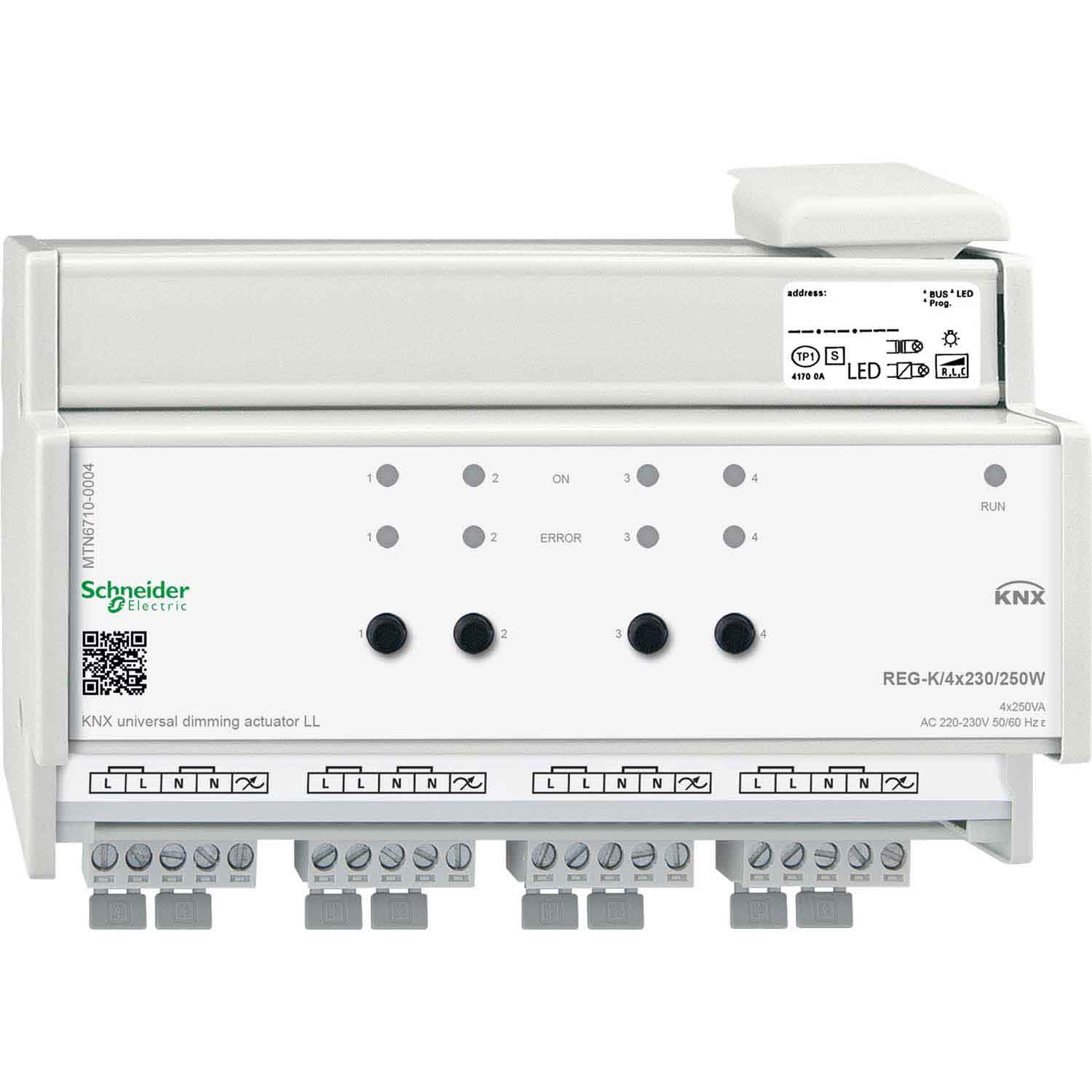

KNX uni.dim.actuat. LL REG-K/4x230/250 W

Universal dimming actuator has 4 channel 250W/VA with manual override. It has automatic load detection and Different phases can be connected. the actuator can be installed for Installation on DIN rails TH35 according to EN 60715. Each output has Nominal voltage: AC 220 - 230 V, 50/60Hz. Nominal power is 4 x 250 W/VA or 3 channels: 1 x 350 W/VA and 2 x 250 W/VA or 2 channels: 2 x 350 W/VA. In controls dimmable LED, incandescent, HV halogen and LV halogen or dimmable compact fluorescnet. Minimum load per channel is 4 W (ohmic) 4 W (ohmic-capacitive) 25 VA (ohmic-inductive. It is able to control different dimming curves and dimming speeds, the same dimming tim. The device has 8 module width, approximately 144 mm. The color of device is light grey.
