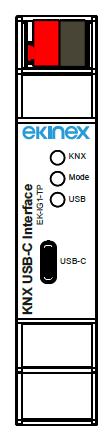

KNX USB-C interface

ORDERING CODE EK-IG1-TP DESCRIPTION Compact KNX/USB Type-C interface. Enables programming of KNX devices via ETS® software and supports KNX long telegrams. Designed for 35 mm DIN rail mounting. FUNCTIONS / CHARACTERISTICS KNX - Medium TP - Interface protocol: HID/cEMI - Max. APDU length: 233 Bytes - Object Server: BAOS V2 - Device model: System B Indicators - 3 LEDs (multicolor) Technical data - Supply powered by USB. An external power supply is not necessary. - Current consumption: <15mA from KNX bus, <3mA from USB-C port Connectors Connectors - Connector for KNX TP Bus (red/black) - USB: Connector type C, max. cable length: 5m Environmental conditions - Operating temperature: - 5 ... + 45 °C - Non-operating ambient temp.: - 25 ... + 70 °C - Relative humidity: 5 ... 93% not condensing Other characteristics - Housing in plastic material (PC) - Mounting on 35 mm rail (according to EN 60715) - Protection degree IP20 (installed device, according to EN 60529) - Appliance class III (according to EN 60664-1) - Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2) - 1 modular units (1 unit = 18 mm) - Weight 40 g - Dimensions (WxHxD): 17.8 x 90 x 60 mm SUPPLY The supply includes a terminal for connection to the KNX bus line. CONFIGURATION AND COMMISSIONING The individual address of the interface can be set locally via the ETS. Therefore no programming button or LED is available on this device. The ETS entry is not required to use the KNX USB device as programming interface. It is just a placeholder to show all installed devices in the topology. Application program for ETS: APEKIG1TP##.knxprod (## = version).
