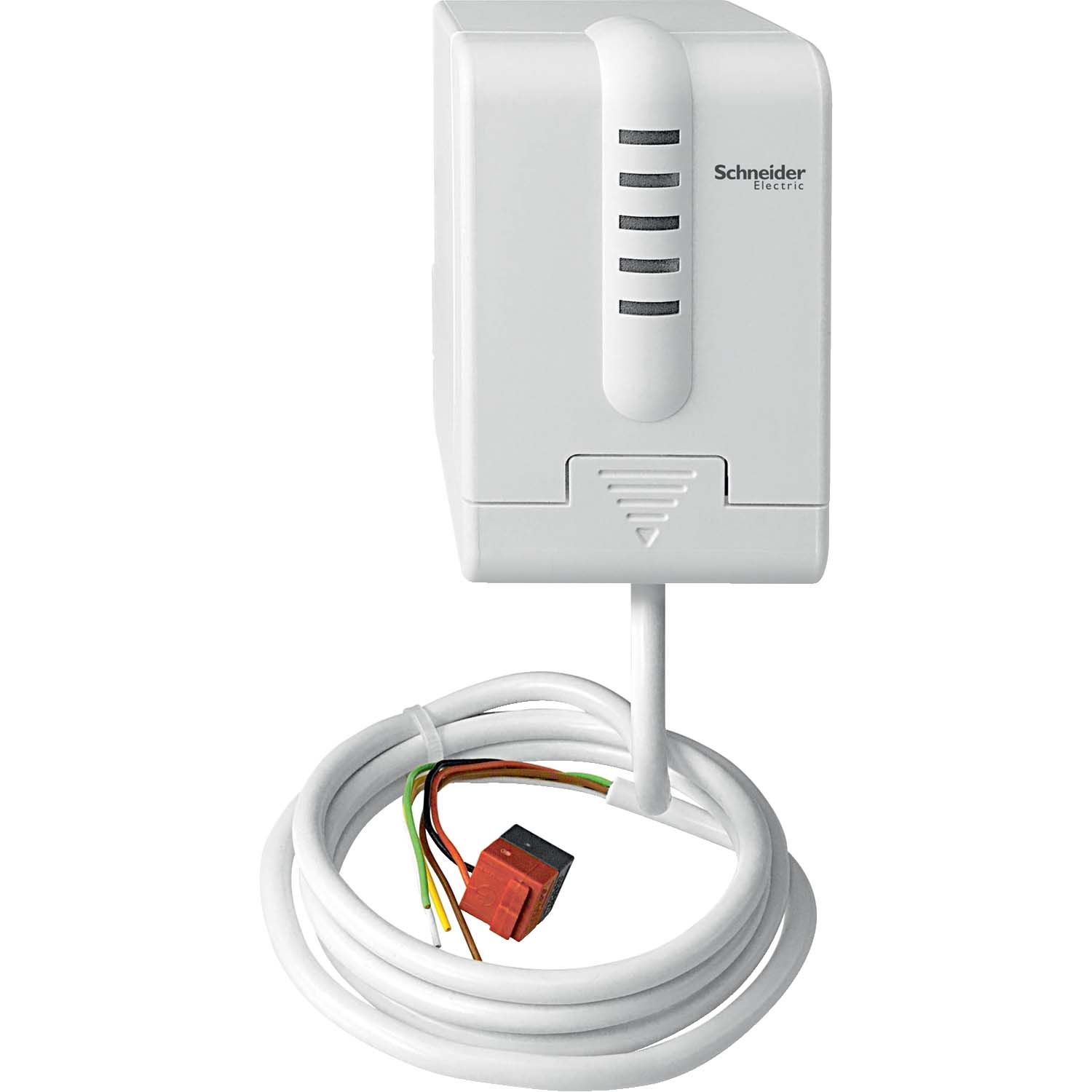

KNX Valve Drive with Status LED and 2 Inputs

KNX valve drive with status LED and 2 inputs. EMO valve drive for heating valves. The device has 2 inputs for window contacts or presence detectors for instance. Valve lift display via red LEDs. With automatic valve lift detection. The valve drive can be connected directly to the KNX. A separate power supply is not required. With integrated bus coupler. Power consumption: max. 10 mA. Lift: max. 7,5 mm. Positioning force: 120 N. Type of protection: IP 21. Protection class: III as per EN 60730. Installation: Snaps onto the valve adapter. Dimensions: (H x Wx D) 82 x 50 x 65 mm. Contents: With 2 valve adapters (VA10/VA78).
