KNX/DALI-2 Smart Gateway 1-Fold with Secure

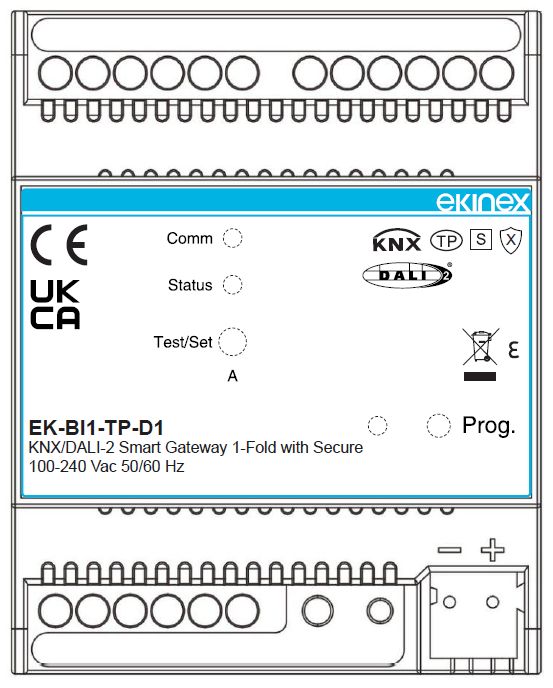

ORDERING CODE EK-BI1-TP-D1 DESCRIPTION The ekinex® KNX device EK-BI1-TP-D1 is a bidirectional gateway interface between KNX bus and DALI network, for converting KNX telegrams into DALI commands (addressed by short address) for controlling lighting functions such as on/off, dimming, brightness setpoint, colour temperature and colour management on DALI ballasts. Suitable for 35mm profile rail mounting. FUNCTIONS / CHARACTERISTICS - One output channel to configure up to 64 DALI devices - Individual control of each DALI device for switching, dimming, brightness value setting, colour control, etc. - Support of different types of devices, such as the DT6 LED dimmer control device, the DT8 colour control device, with RGB, RGBW, XY and colour temperature control, as well as the DT7 relay module and the DT1 stand-alone battery-operated lamp; - Group control: up to 16 different groups. Assignment of DALI devices to groups via DCA. Switching, dimming and colour control for each group. - Up to 16 different DALI scenes, with brightness value of each scene configurable by DCA - Up to 8 DALI sensors, for control with motion and light sensors. - Group or global scenes can be called up on the DALI channel via KNX scenes. - Broadcast control: switching, brightness, colour temperature, colour control for all DALI devices in the channel - Operating modes: supports normal, normal/night, scale, permanent, burn-in mode - 8 behaviour templates for setting group and ECG actions and ECG configuration editable via DCA - Sends or responds to various states, such as switching, brightness, hours of operation, etc. - Fault detection of lamps and ballasts for DALI devices. - Monitoring of DALI bus voltage, current and short-circuit status - Support of the KNX data security protocol Technical data Power supply - Voltage 21-30 Vdc via KNX bus - Current consumption from bus 9.5mA @30Vdc, 11.0mA @24Vdc - Max. power from KNX bus < 285 mW Auxiliary power supply - Voltage 100-240Vac, 50-60Hz - Current consumption < 55mA @220Vac - Max. power consumption < 12W @220Vac DALI output - Max. 64 devices - Current consumption < 250mA - Load voltage 15~19Vdc Connectors - KNX bus line: terminal with spring-loaded clamping of conductors. Conductor 0.6 ... 0.8 mm, unipolar. Colour coding: red = bus conductor + (positive), black = bus conductor - (negative) - Auxiliary power supply line, DALI bus: screw terminals Environmental conditions and other characteristics - Operating temperature:- 5 ... + 45°C - Storage temperature:- 25 ... + 55°C - Transport temperature:- 25 ... + 70°C - Ambient humidity: < 93% non-condensing - Dimensions (LxHxW): 72 x 90 x 64 mm - Weight 250 g SUPPLY The supply includes a terminal for connection to the KNX bus line. CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5.7 or later versions. ETS application program: APEKBI1TPD1##.knxprod (## = release). Available languages: English, Italian.
