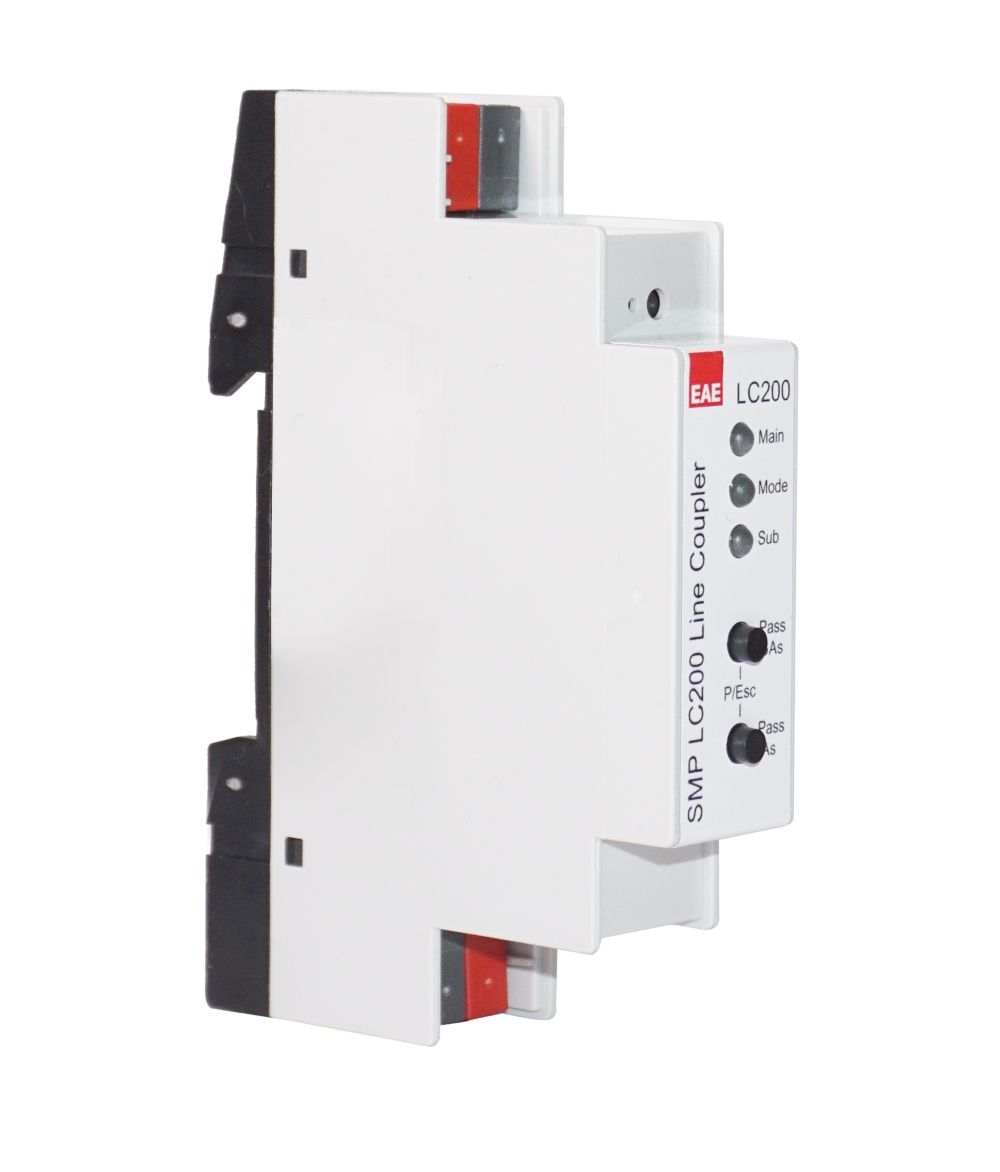

LC200 Linienkoppler

#LC200 Line Coupler #KNX Line Coupler LC200 is able to filter the traffic according to the installation place in the bus system hierarchy or according to the built in filter tables for group oriented communication ##General Specifications - The KNX LineCoupler 200 is a KNX line coupler in a compact design. It connects two KNX bus segments (for example, a KNX line with a KNX area). - The device has an extended filter table for main group 0 … 31 and ensures a galvanic isolation between the lines. The coupler supports KNX longframes and is compatible with the ETS® software (ETS 4.2 or higher). - The buttons on the front panel allow disabling the telegram filter for testing purposes. The LEDs indicate operating conditions as well as communication errors on the KNX bus. - The power is supplied via the KNX bus (main line). The documents are available at the following link: `https://www.eaetechnology.com/en/products/knx-products/system-devices/lc200-line-coupler`
