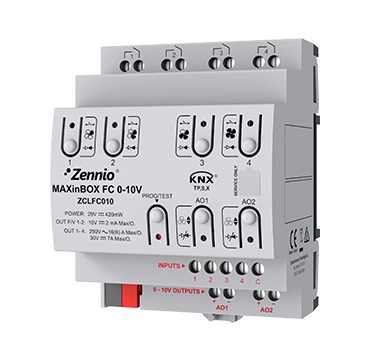

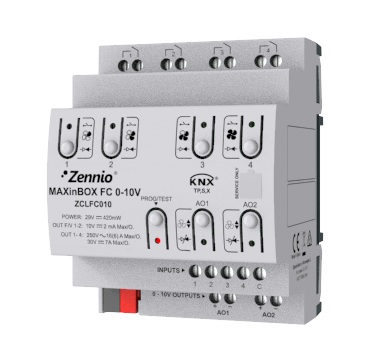

MAXinBOX FC 0-10V

Controller for 2-pipe or 4-pipe fan-coil units with 2 x 0–10 V outputs for control of fan and/or valves and 4 relay outputs (16 A C-Load) for fan speed or on/off valve control. The outputs not used can be used for other control purposes. It has 4 analog-digital multifunction inputs that can be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. It also includes 2 thermostats, 10 logical functions and allows manual control of the outputs with status indication through LEDs. DIN rail mounting (4 modules). It is compatible with KNX Secure.
