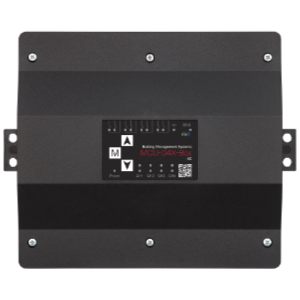

MCU-04X AC Box

V2 MCU-04X-Box - motor control unit 4 channels

Blind actuator 4 fold, for drives with 2 end switches, automatic runtime measurement, binary inputs for 4 standard push buttons or 8 single inputs, feedback of motor positon and status, different shading products preconfigured, automatic lock. Product data base ETS4 Professional or later.

Technical data

Surface mounted housing 170 x 220 x 40mm |
Power 230V/ 50Hz |
KNX bus 29V DC |
Motor 4 x 230V AC/ 2,5A, 2 end switches |
Degree of protection IP41 |
Pluggable in- and outputs
