Modbus / KNX interface for RDZ air handling units

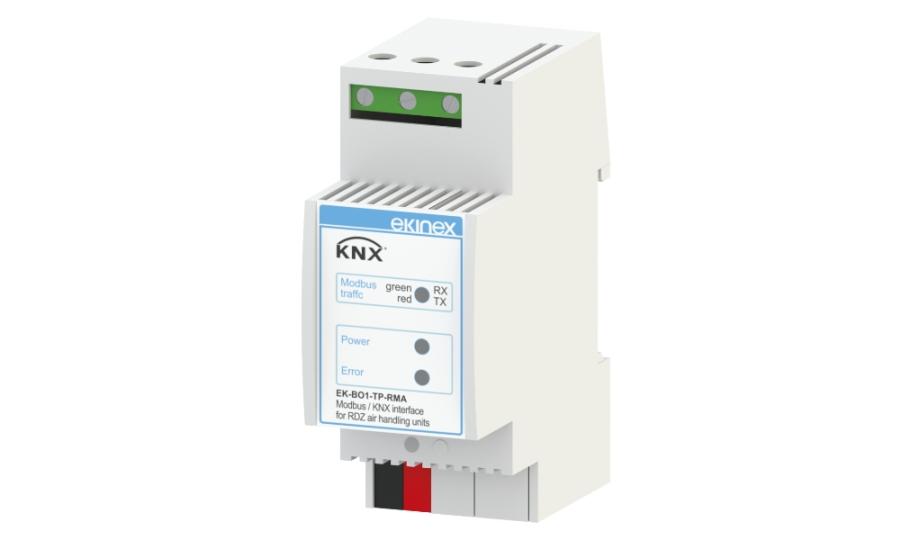

ORDERING CODE EK-BO1-TP-RMA DESCRIPTION The Ekinex® EK-BO1-TP-RMA interface is a modular KNX S-mode device that allows bidirectional communication between the RDZ air handling units, equipped with control board with RS-485 Modbus communication port, and the KNX system (TP). Thanks to the interface, the functions performed by the air handling units can be controlled and monitored by KNX devices. The unit has an integrated KNX bus communication module and is realized for mounting on a 35 mm rail. Power is supplied via the KNX bus. FUNCTIONS / CHARACTERISTICS • Housing in plastic material • Mounting on 35 mm rail (according to EN 60715) • Protection degree IP20 (installed device) • Safety class II • Weight 70 g • 2 modular units (1 unit = 18 mm) • Dimensions 36 x 94 x 71 mm (WxHxD) • Power supply 30 Vdc from KNX bus line • Current consumption (from main bus line) < 13 mA CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKBO1RMATP##.knxprod (## = release). Available languages: English, French, German, Italian.
