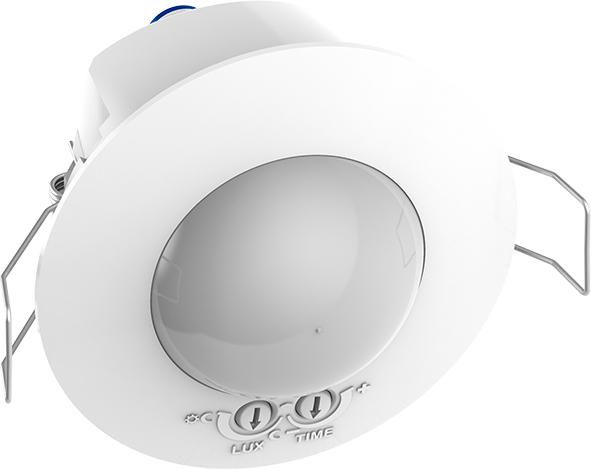

Movement Detector

Battery- or 230V-operated wireless infrared movement detector for flush-ceiling mounting. It has a PIR sensor of high sensitivity, which, together with the design of the lens, allows detecting the smallest movement within its coverage area. It incorporates a brightness sensor, which allows limiting its functionality to natural light existing at any time. It has a second potentiometer that allows to adjust the lag time from the last detection. Perfect solution for using in conventionel installations without placing KNX bus cables. Communication with the KNX Bus must be carried out using a KNX / KNX RF S-Mode media coupler. The movement detector includes several parameters and functionalities that must be parameterized through the ETS: · Adjustment of the time delay and brightness by potentiometers or ETS. · Sending telegram after the detection and at the end. · Movement Monitoring function. · Twilight Switch funcion. · Temperature Sensor function. · Brightness Sensor function. It has a programming button (A) to carry out its programming. It also has a potentiometer (B) without any assigned functionality. Programming and commissioning by ETS5 or later.
