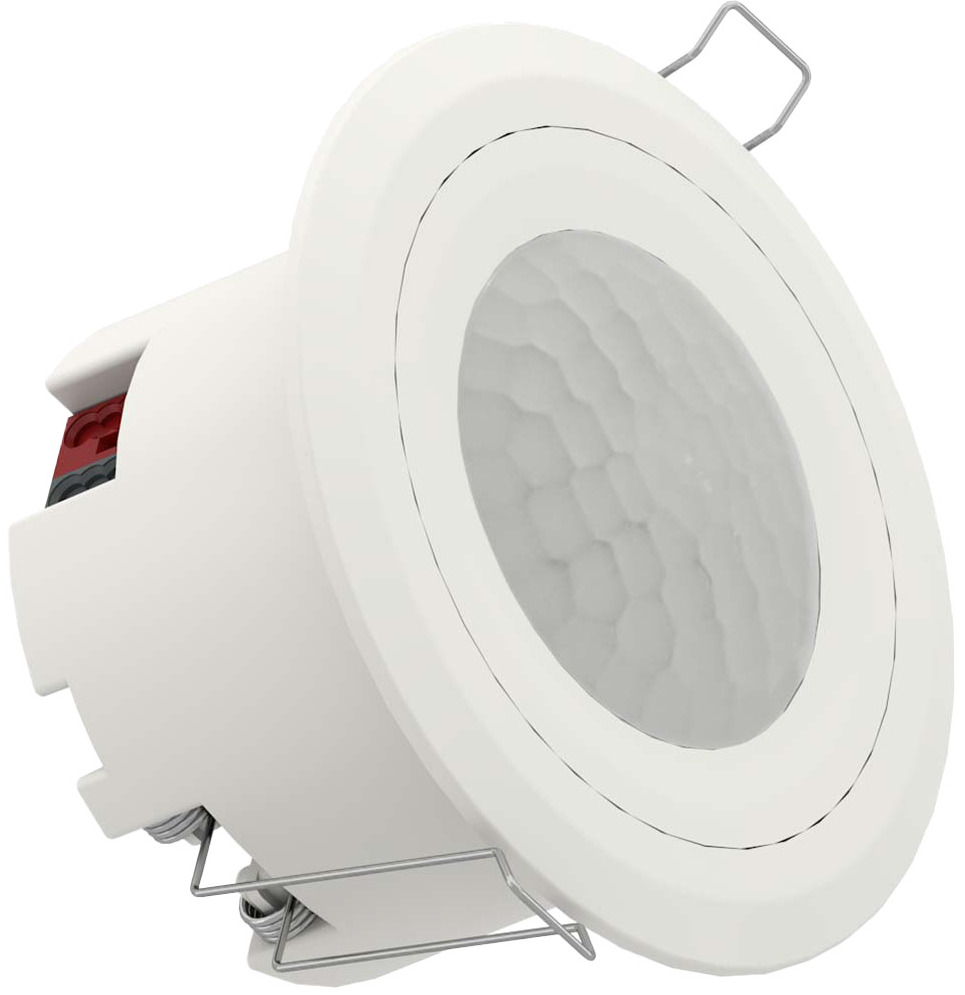

Multi Presence Detector

ITR415-XXXX

Multi Presence Detector is a multi-functional device suitable for indoor usages with detection capability. It includes 4 independent presence channels that can be used with constant light switch and constant light controller functionality. Independent presence channels can be configured as the automatic or semi-automatic mode for user requirements. Moreover, ITR415-0XXX also supports sensor functionality without presence channels for simple usage. Temperature measurements can be made via an integrated temperature sensor and temperature information can be reported to KNX bus. ITR415-0XXX also includes 4 independent logic blocks to make logical associations. The logical blocks can be associated with such as “AND”, “OR” and “XOR” logic. The logic input conditions contain presence, brightness, movement and external conditions. The sensor can also be configured as the master or slave mode. The thermostat feature can be utilized with an internal or external temperature.

Category	Value
Catalog Item Name	ITR415 - Multi Presence Detector
Application Program Name	Presence with Constant Light, Thermostat and Logic/1.0
Order Number	ITR415-XXXX
Rail Mounted	No
Manufacturer Website	Interra
