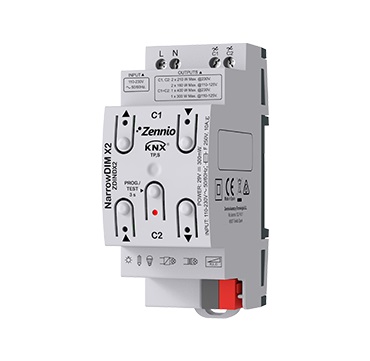

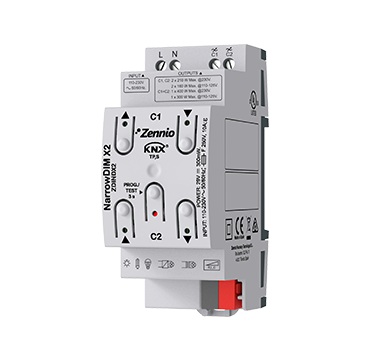

NarrowDIM X2

Universal dimming actuator (RLC, LED, CFL*) for DIN-rail mounting (2 units) with 2 channels for up to 210 W at 230 V AC (160 W at 110 V AC). It allows double channel connection, up to 400 W at 230 V AC (300 W at 110 V AC). Auto load type detection (RLC). Configurable dimming curves for LED and CFL. It allows manual control of its outputs using the push buttons. It includes 10 independent logical functions. Error detection: short circuit, voltage surge, overheating, anomalous frequency, power failure, parameterization error. *Only dimmable loads.
