Office Controller

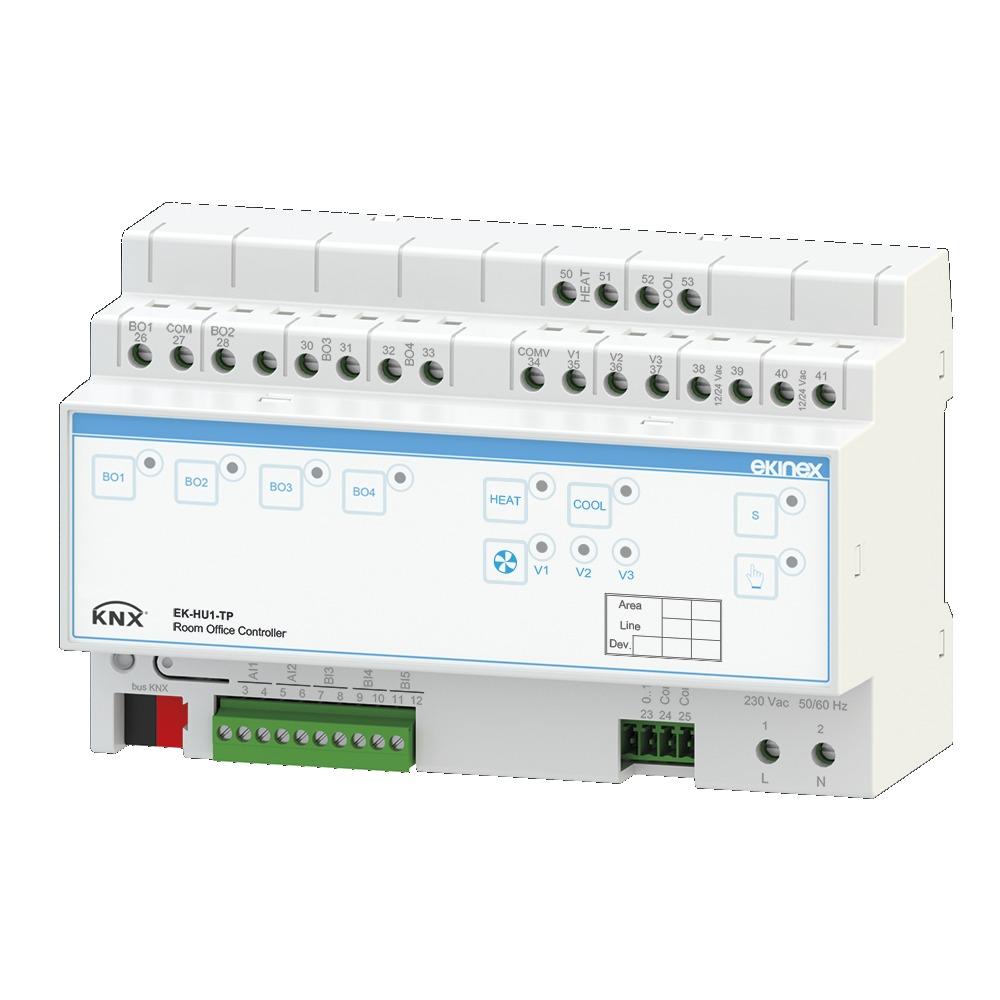

ORDERING CODE EK-HU1-TP DESCRIPTION Input/output module allows to manage all functions of an office or a open-space zone: lighting, temperature control, shades and input/output indications. The device is equipped with membrane keys for manual control and status indication LEDs; a pushbutton allows to switch mode from automatic to manual and vice versa. The device integrates a KNX bus communication module. It is supplied by the KNX bus; in order to be operational it also requires a 230 Vac voltage. Mounting in distribution board on EN 60715 rail (8 modular units, each 18 mm). To be used in KNX installations for home and building automation. FUNCTIONS / CHARACTERISTICS INPUTS • 1 analog for NTC temperature sensor (thermostat function) • 4 digital OUTPUTS • 10 digital of which: - 3 general purpose - 2 (paired) for blind or shade control - 5 fancoil: 3 for fan speed (3 speeds) and 2 for controlling electrothermal actuators on hot/cold valves • 1 analog 0-10V for fan speed control CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 2.0 or later versions. ETS application program: APEKHU1TP##.knxprod (## = release). Available languages: English, French, German, Italian
