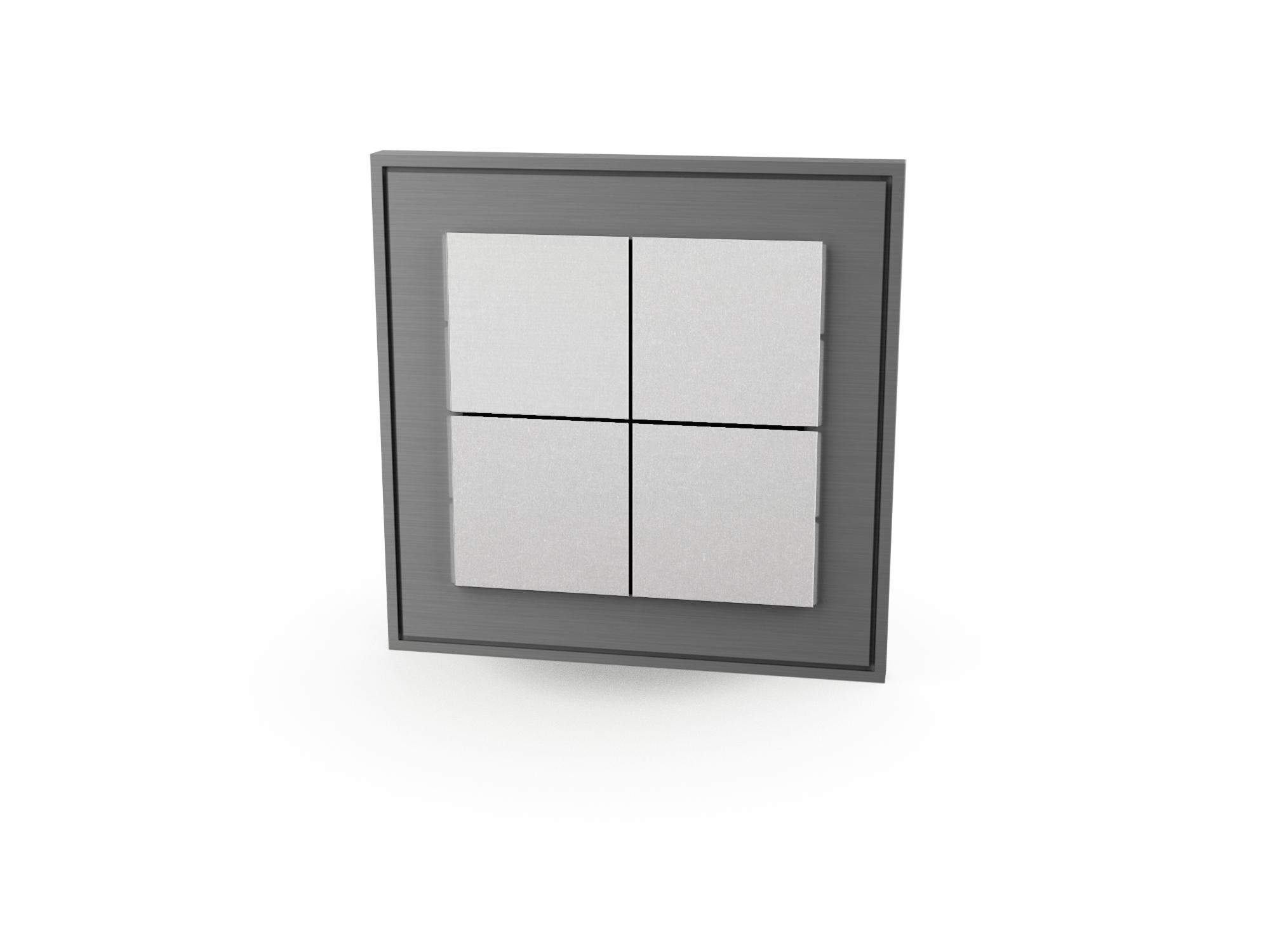

Push button interface 4 channels with room thermostat VIVO

VIVO Rubi

RUBI is a KNX device for loads on/off switching, light fittings dimming, control of motorised actuators and other programmable switching and control
functions. Thanks to the integrated temperature probe it can serve as room or area temperature controller. It is equipped with a bus communication
module and is designed for wall installation on flush-mounting box. Each channel can be configured independently to perform 1 or 2 bus functions and
is provided with programmable LED (red/white) e.g. as status feedback or orientation nightlight. When you press a rocker key, the device transmits a
telegram onto the bus. The telegram is received and executed by one or more KNX actuators, depending on the initial programming. The device is powered
by the KNX bus line with 30 Vdc SELV voltage and does not require auxiliary power supply.

Category Value
Catalog Item Name Push button interface 4 channels with temperature and brightness probes
Application Program Name Push button interface 4 channels with room thermostat
Order Number VIVO Rubi
Rail Mounted No
Manufacturer Website VIVO
Technical Documentation
