Pushbutton 71 Serie

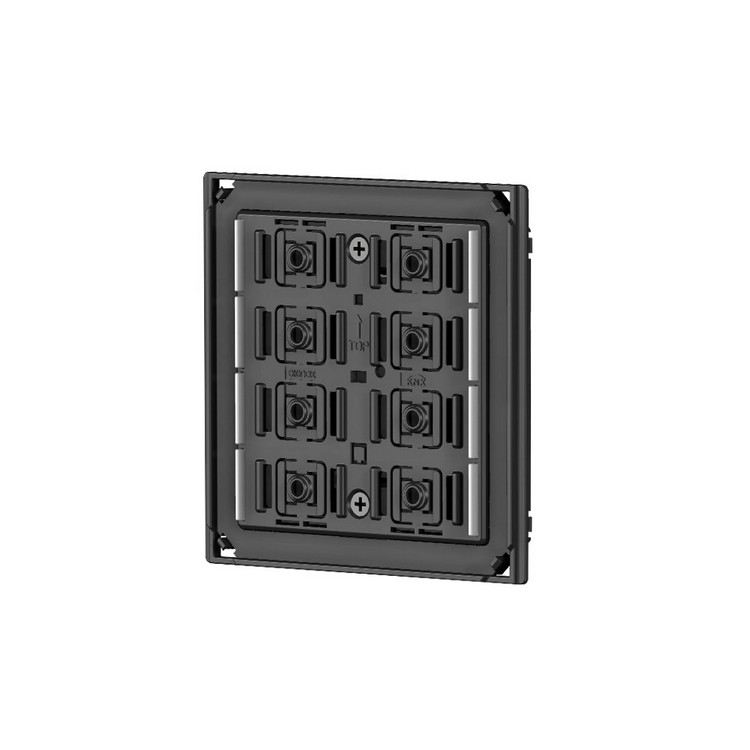

DESCRIPTION 1-, 2- or 4-fold KNX pushbutton (max. 8 independent functions) with integrated room temperature controller. Mounting on round or square wall box. Power supply via bus. To be used in KNX installations for home and building automation. Bus terminal block and fixing screws included in the delivery, a metal support for wall mounting box and a plastic adapter have to be ordered separately. The device has to be to completed alternatively with: one square 60 x 60 mm rocker (EK-T1Q-...) two rectangular 30 x 60 mm rockers (EK-T2R-...) four square 30 x 30 mm rockers (EK-T4Q-...) four rectangular 60 x 15 mm rockers (EK-T4R-...) The rockers have to be ordered separately; the basic code must be completed with the extension for the colour. Versions to be completed with a square frame of the series form or flank: EK-E13-TP (leds colours: blue / green) EK-E13-TP-RW (leds colours: red / white) 'NF (No Frame) versions for mounting without frame: EK-E13-TP-BG-NF (black side profile, LED colours: blue / green) EK-E13-TP-BG-NFW (white side profile, LED colours: blue / green) EK-E13-TP-RW-NF (black side profile, LED colours: red / white) EK-E13-TP-RW-NFW (white side profile, LED colours: red / white) Possibility of mounting with 2-fold plates EK-P2G-... and EK-P2S-... FUNCTIONS / FEATURES on/off switching of single loads or groups of loads dimming of lighting devices control of motor drives (for roller shutters, blinds, curtains, etc.) function of room temperature controller with integrated temperature sensor sending on the bus of values (temperature, etc.) recalling and saving of scenes switching to forced functioning (lock) CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKE13TP##.knxprod (## = release).
