Pushbutton SIGNUM

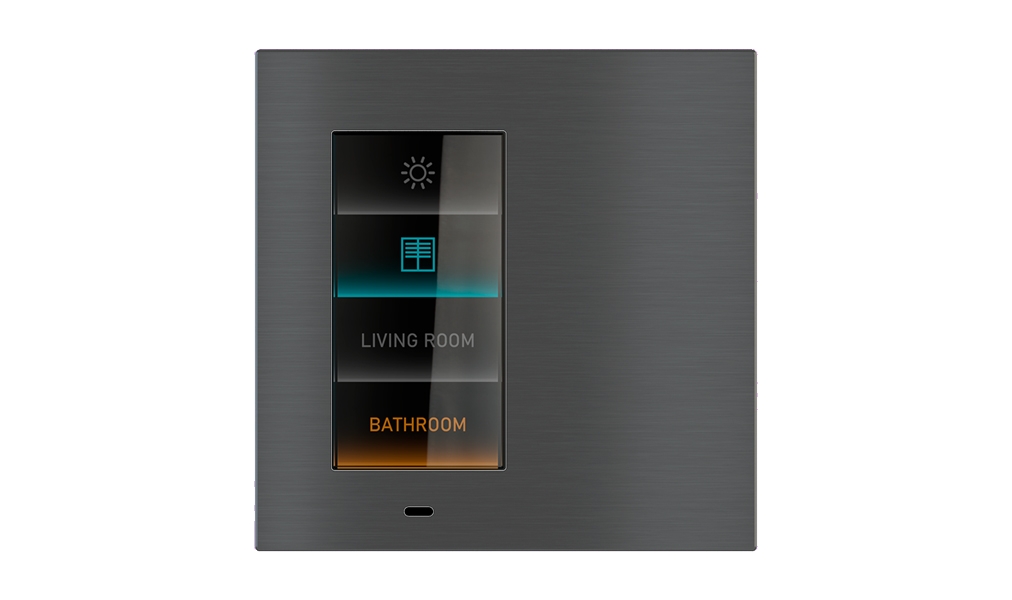

ORDERING CODE EK-EV2-TP EK-EV2-TP-S DESCRIPTION “Virtual” KNX-standard pushbutton, i.e. based on a borderless IPS touch display, in which each button can be customised via a dedicated app. it is possible to modify certain attributes of each button even after installation, e.g. position, symbols and lettering. FUNCTIONS / FEATURES • Up to 4 buttons per screen and up to 3 screens in total can be configured • Haptic pressure feedback • Control and dimming of lighting devices • Control of motorised drives for blinds (such as roller shutters, awnings blinds or shutters) • Partially programmable attributes for each button • 2.65” IPS RGB display, 162 x 320 pixels, 262K colours with haptic feedback • Bluetooth BLE module for connection to programming app • Room temperature detection via integrated sensor • Proximity sensor integrated in the faceplate (to be ordered separately) • Room thermostat function • Connection to bus line via KNX terminal • Recessed wall mounting on round or square box • Configuration via App TECHNICAL DATA • 30 Vdc power supply via KNX bus • Stand-by current consumption: 8 mA @30Vdc / max: 35 mA @30Vdc • Wall mounting on round or square box • IP20 degree of protection (installed) • Plastic housing • Climatic classification 3K5 and mechanical classification 3M2 (according to EN 50491-2) • Pollution degree 2 (according to IEC 60664-1) • Dimensions: 83 x 77 x 37 mm • Operating temperature: 5... + 45°C • Storage temperature: 25... + 55°C • Transport temperature: 25... + 70°C • Relative humidity: 95% non-condensing DELIVERY Delivery includes a terminal block for connection to the bus, a plastic adapter, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart), two pairs of fixing screws. ACCESSORIES The following accessories are available to be ordered separately: • square plate of the Deep or Surface version with 30 x 60 mm window MOUNTING CODES EK-EV2-TP with Deep plate EK-EV2-TP-S with Surface plate Functions EK-EV2-V1-TER Voucher to enable graphic display of thermostat function EK-EV2-V1-AUD Voucher to enable the graphic display of the audio function CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKEV2TP##.knxprod (## = version)
