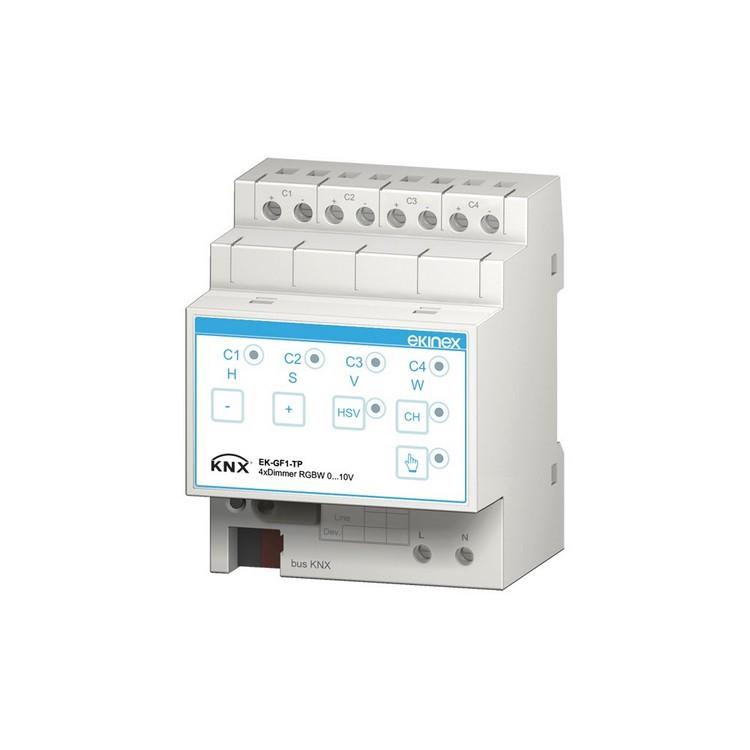

RGBW LED 0-10V dimming actuator 4 channels

ORDERING CODE
EK-GF1-TP

DESCRIPTION
4-fold KNX dimmer-actuator for switching and dimming of ballast with 0-10V. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.

FUNCTIONS / CHARACTERISTICS
• ON/OFF switching and brightness regulation of single or groups of lighting devices
• Logical gates and forced mode for each channel
• Manual control by membrane pushbuttons
• Status feedback of output channels through LEDs
• Switching pushbutton manual/automatic mode
• Block function for each channel
• Time scheduling: switching delay for on and off
• Integration in scenarios

CONFIGURATION AND COMMISSIONING
A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 or later versions. ETS application program: APEKGF1TP##.knxprod (## = release). Available languages: English, French, German, Italian
