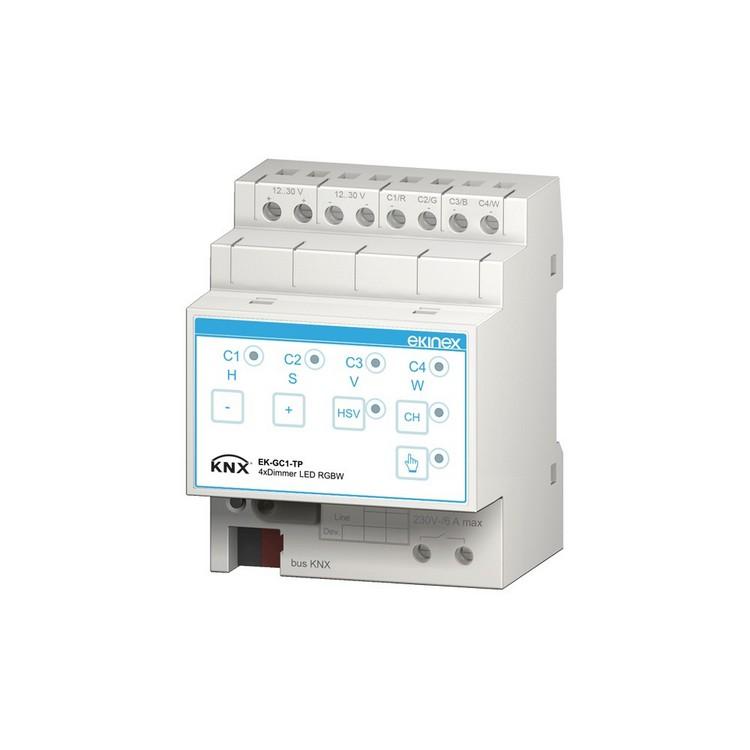

RGBW LED PWM-CV dimming actuator 4 channels

ORDERING CODE EK-GC1-TP DESCRIPTION 4-fold KNX dimmer-actuator for switching and dimming of LED RGBW lighting devices. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation. FUNCTIONS / CHARACTERISTICS • ON/OFF switching and brightness regulation of single or groups of lighting devices • Logical gates and forced mode for each channel • Manual control by membrane pushbuttons • Status feedback of output channels through LEDs • Switching pushbutton manual/automatic mode • Block function for each channel • Time scheduling: switching delay for on and off • Integration in RGBW scenarios CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 or later versions. ETS application program: APEKGC1TP##.knxprod (## = release). Available languages: English, French, German, Italian
