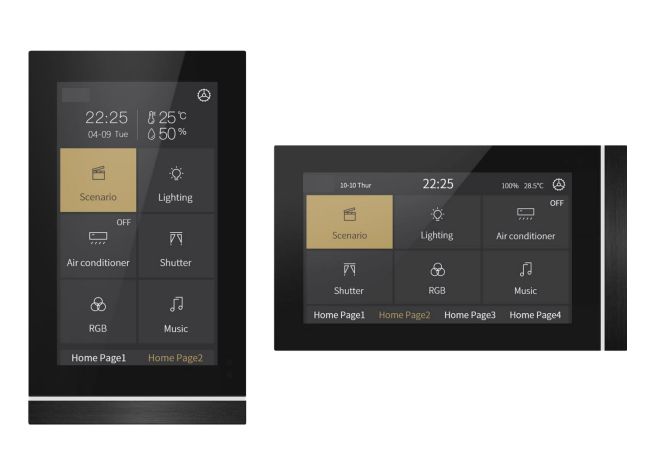

Room Controller 5" KNX Touch&Control EK-EI2-TP-5

DESCRIPTION KNX S-mode device designed for the independent regulation of the temperature of a room or an area of a building. It also allows you to view the status and control a variety of KNX devices by touching the icons on the touch display interface to perform the preset function. TECHNICAL DATA - Supply voltage 21-30 Vdc via KNX bus - Current absorption from bus: 6mA @24Vdc, 5mA @30Vdc - Max power from KNX bus < 150 mW DELIVERY The supply includes two terminals for connection to the bus line and to the auxiliary power supply FUNCTIONS / FEATURES - 5" colour IPS, 480x854 resolution, capacitive touch screen - Support vertical or horizontal display via ETS - Switching, dimming, curtains control, scene, value send and switch indicator function - Room temperature control, Air conditioner, Floor heating and Ventilation System - Audio control - RGB, RGBW, RGBCW control and colour temperature setting - Air quality display, with PM2.5, AQI, CO2, VOC etc. - Energy Metering display, with current, voltage, power, energy. - 16 Time functions, 8 Scene Group functions - 8 Logic functions, with AND, OR, XOR, Gate forwarding, Threshold comparator, Format convert, Delay function and Staircase lighting - Proximity sensor, Screen brightness setting,Colorful strip indication,Touch vibration feedback - Time and Date display, Temperature and Humidity display, Day/Night status send - Password protection, Screen saver and Panel block - Alarm function, Built-in temperature sensor - SD card slot - Main page navigation function - Weekly timer, support to edit on screen - Available colors and codes: black (EK-EI2-TP-5), white with aluminum bar (EK-EI2-TP-5-W) - Dimensions (WxHxD): 86 x 148.8 x 11.5mm (32.5mm) - Weight: 300g CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 5.7 or later versions. ETS application program: APEKEI2TP5##.knxprod (## = release).
