Router interface

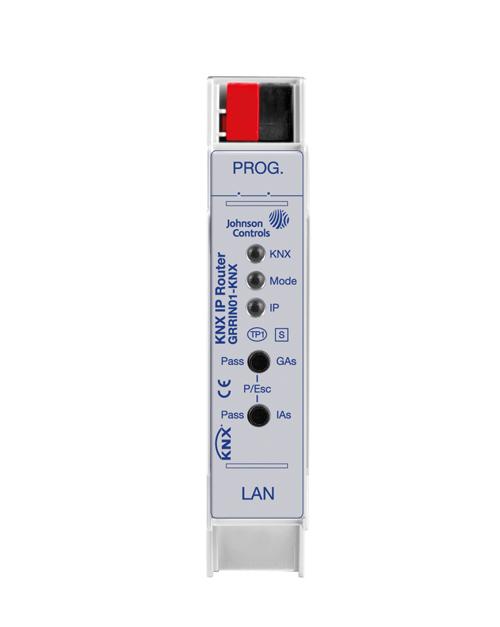

GRRIN01-KNX ROUTER INTERFACE The compact KNX IP Router GRRIN01-KNX allows the forwarding of telegrams between different lines through a LAN (IP) as a fast backbone. In addition this device is suited to connect a PC to the KNX network e.g. for ETS® programming. FEATURES -The IP address can be obtained by a DHCP server or by manual configuration (ETS®) respectively. -This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part. -The KNX IP Router GRRIN01-KNX has a filter table (8 kByte) and is able to buffer up to 150 telegrams. -Power is supplied via the KNX bus.
