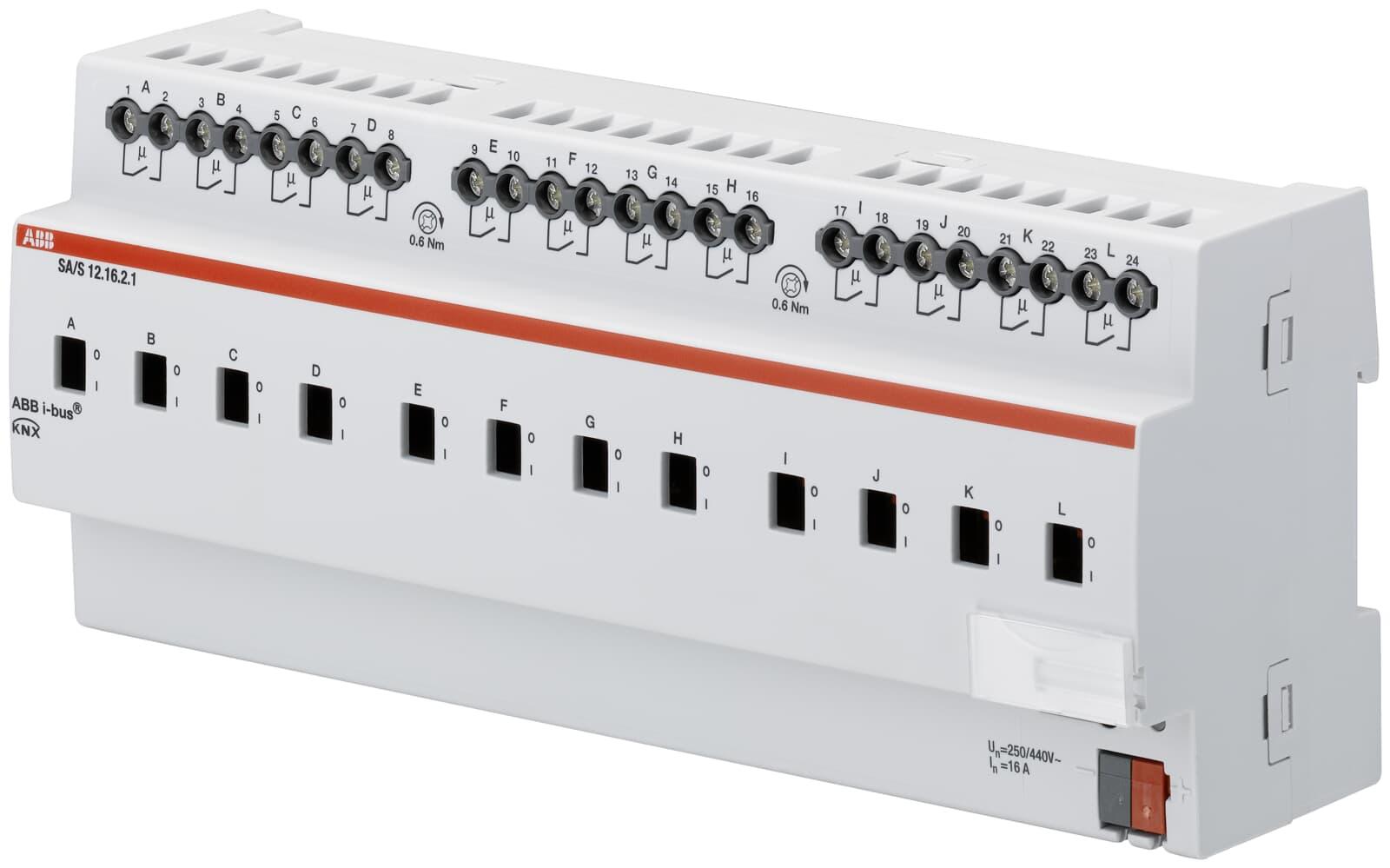

SA/S12.16.2.1 Switch Actuator,12-fold,16A,MDRC

2CDG 110 162 R0011

Uses potential free contacts to switch 12 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 16A-AC1 device is especially suited for resistive loads.

Category	Value
Catalog Item Name	SA/S12.16.2.1 Switch Actuator,12-fold,16A,MDRC
Application Program Name	Switch 12f 16A/3.2b
Order Number	2CDG 110 162 R0011
Rail Mounted	Yes
Manufacturer Website	ABB AG (Stotz - Kontakt)
