Sensore di presenza

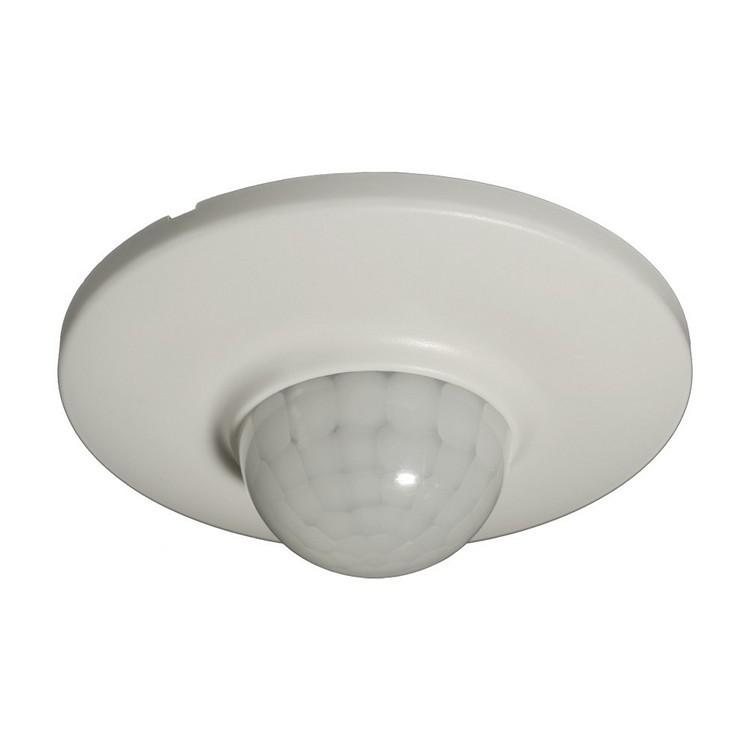

ORDERING CODE EK-Dx2-TP (x = B, C, D, E - It includes frame and lens) DESCRIPTION KNX presence sensor for ceiling mounting. 2 light channels c1 and c2 for constant light control (c2 as an offset to c1). Orientation light on/off, 10-50%, 2 values ​​can be selected. Constant light control setting via ETS or setpoint dimmable with a KNX pushbutton. Power supply via bus. To be used in KNX installations for home and building automation. The device is available in four versions: EK-DB2-TP - 16 m detection area, round frame Ø = 105 mm EK-DC2-TP - 16 m detection area, square frame 86 x 86 mm EK-DD2-TP - 30 m detection area, round frame Ø = 105 mm EK-DE2-TP - 30 m detection area, square frame 86 x 86 mm The frame is included in the delivery. FUNCTIONS / CHARACTERISTICS • 3 light channels, 1 HVAC channel • Semi-automatic or fully automatic operation • 360° detection area • Measuring range from 5 to 2000 Lux • 3 PIR sensors can be activated individually or in groups • Sensitivity adjustable (10 levels) • Light sensor with linear output • High-resolution lens for detection of small movements • Optical filter integrated • Height of mounting approx. 2-6 m CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS3 or later versions. ETS application program: APEKSP2TP##.vd4 (## = release)
