SMx Push button

#Oria Push Switches
#“Switch” to Superior Technology...

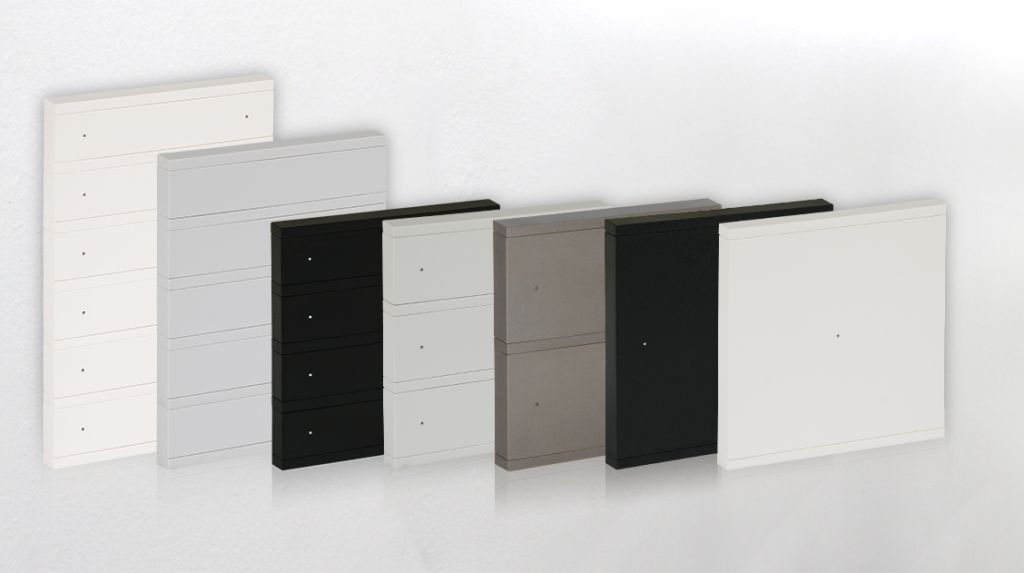

New generation Oria switches add a simple and elegant touch to the world of automation.

The new generation of Oria switches adds a simple and elegant touch to the
world of users while fulfilling unlimited needs with its design. With rich collection
options expandable to 12 buttons in a single frame, enjoy one-point
management of on-site lighting, heating-cooling, shutter-blind, speakers, scene
cali and panic buttons controls.

## General Specifications
- Serial switches with plastic push-button
- Can be configured with ETS5 or higher
- ndependent button configuration for each fold
- Different color options
- Cleaning Mode Function
- Logical Function
- Option to extend up to 6 Folds
- Easy mount into 60x60 mm standard switch junction boxes
- Integrated temperature sensor (°C) (Optional)
- Integrated humidity sensor (Optional)
- Dependent or independent programmable buttons
- Switching
- Dimming
- Shutter/Blind
- Feedback LEDs
- Value
- Short,Long,Double and Triple press
- Scene control
- 2 independent Logic Blocks

The documents are available at the following link:

`https://www.eaetechnology.com/en/products/knx-products/oria-push-switch…`

## Firmware Version
2.x
