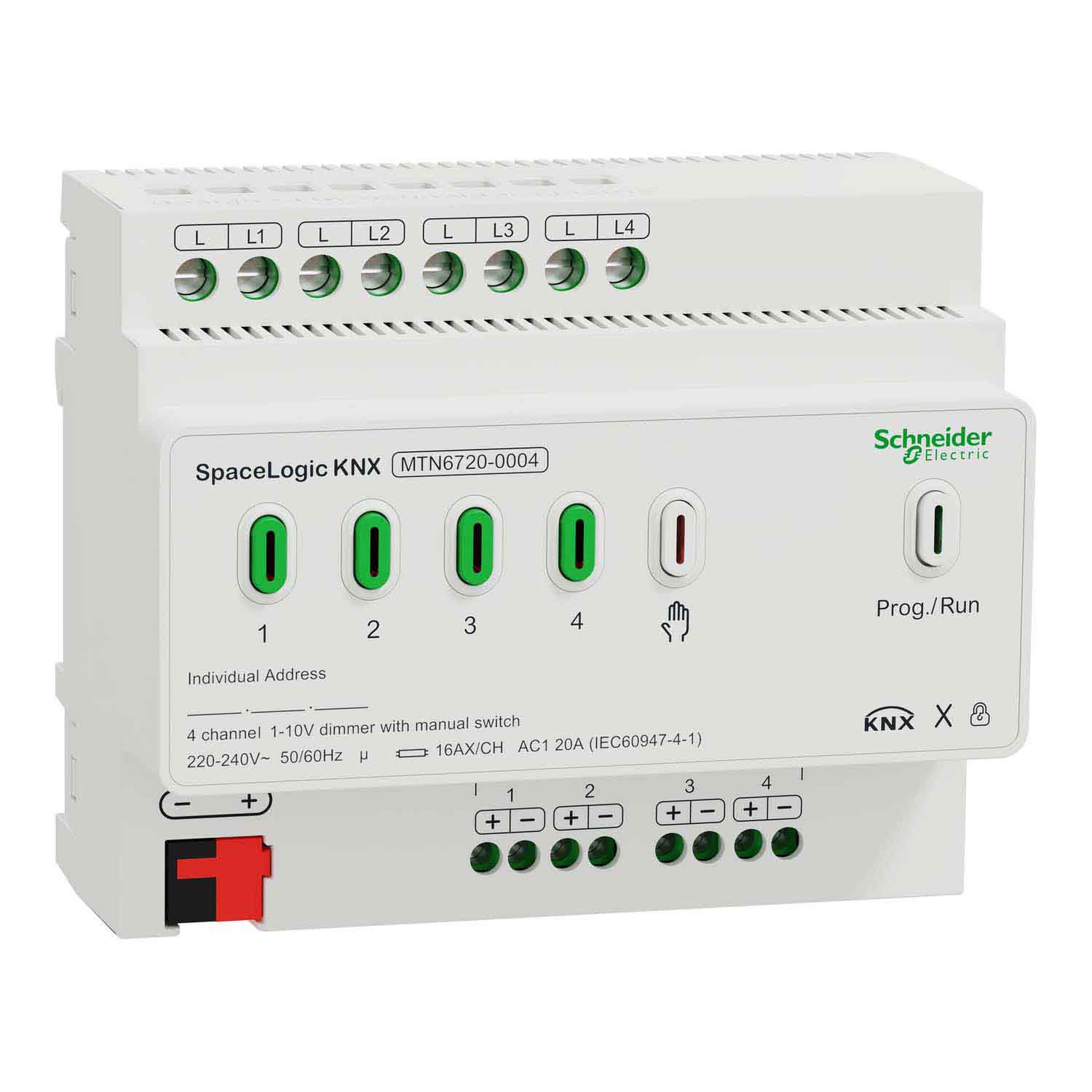

Spacelogic KNX 4 channel 1-10V dimmer with manual switch

The Schneider Electric SpaceLogic 1-10V Dimmer is a KNX DataSecure actuator, which can control up to 4 channels. Device designed for precision control in smart building automation systems, featuring integrated 20A AC1 relays per channel with manual override and bus-controlled operation capabilities. Installed on DIN rails TH35 according to EN 60715 standards. This white-housed actuator supports configurable dimming function via ETS software, including adjustable dimming curves, synchronized dimming speeds, memory functions, ON/OFF delays, and staircase lighting control with optional manual OFF function. The device incorporates Class II insulation and Overvoltage Category III safety ratings, with dual terminal options (screw terminals for 230V connections and plug-in terminals for 1-10V interfaces) and an integrated KNX bus coupler for seamless system integration. Optimized for LED applications, it delivers 650W nominal power at >0.6 power factor and 300W at 0.5–0.6 factor, while its 1-10V interface operates within 1-10V DC range with 100mA maximum sink current. The dimensions of the product are (W) 108mm x (H) 90mm x (D) 65.7mm. The KNX System by Schneider Electric is a comprehensive solution for smart building automation, designed to enhance energy efficiency, comfort, and security. An open standard of network communication KNX enhances building automation with easy-to-use, technology-driven functions. This compact solution enhances energy efficiency and occupant comfort through adaptive lighting control, complies with CE, KNX, and CB certifications.
