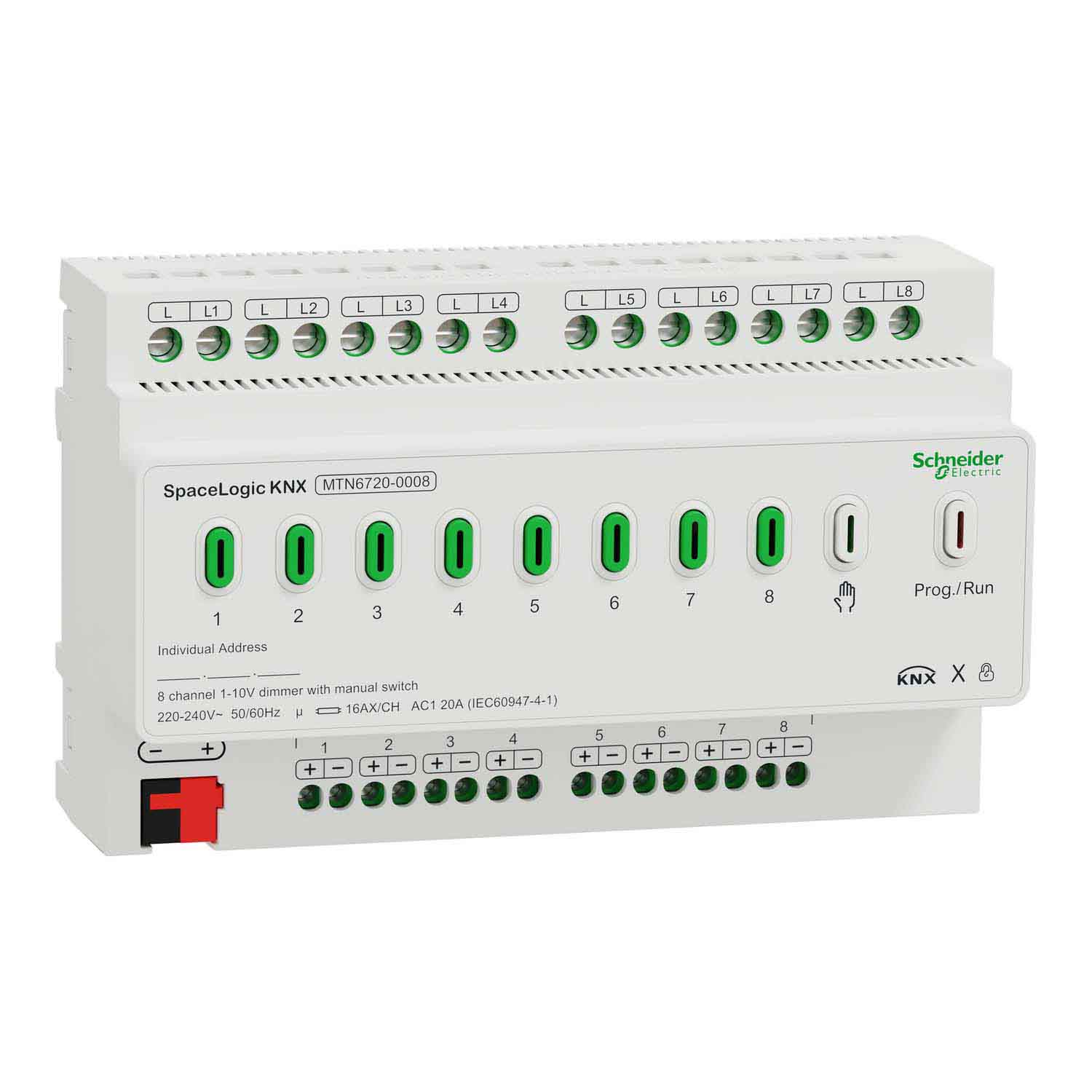

Spacelogic KNX 8 channel 1-10V dimmer with manual switch

The Schneider Electric SpaceLogic 1-10V Dimmer Actuator is a KNX DataSecure-certified, 8-channel solution engineered as a premium dimming solution for advanced smart building automation systems. Equipped with integrated 20A AC1 relays per channel, it delivers reliable manual override and bus-controlled operation while adhering to DIN rail TH35 installation standards (EN 60715). This actuator combines adaptive lighting control with enterprise-grade safety, featuring Class II insulation, Overvoltage Category III protection, and dual terminal configurations—screw terminals for 230V connections and plug-in terminals for 1-10V interfaces. Through ETS configuration, users access advanced dimming capabilities including customizable curves, synchronized speed control, memory retention, programmable ON/OFF delays, and staircase lighting sequences with optional manual override. Optimized for LED installations, it supports 650W nominal power at >0.6 power factor and 300W for 0.5–0.6 power factor loads. The max sink current of the 1-10V interface is 100mA, and the voltage range of DC is from 1-10V. The dimensions of the product are (W) 144mm x (H) 90mm x (D) 65.7mm. The KNX System by Schneider Electric is a comprehensive solution for smart building automation, designed to enhance energy efficiency, comfort, and security. An open standard of network communication KNX enhances building automation with easy-to-use, technology-driven functions. Certified to CE, KNX, and CB standards, this actuator integrates seamlessly into Schneider Electric’s open KNX ecosystem, enabling interoperable, technology-driven automation that enhances energy efficiency, occupant comfort, and operational security across commercial, hospitality, healthcare, and institutional environments.
