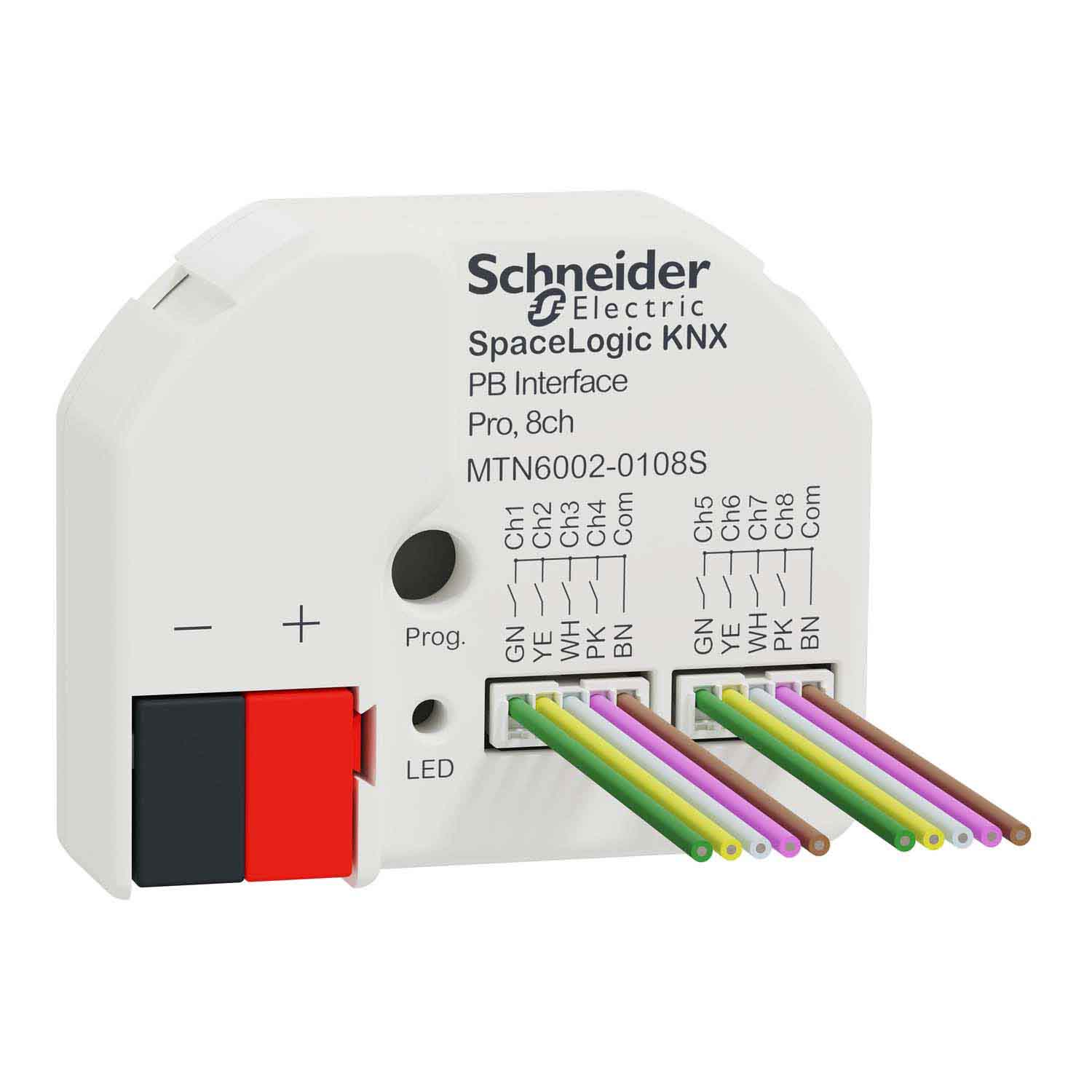

SpaceLogic KNX Push-Button Interface Pro, 8-channel

KNX system converts the state of the physical contact into a digital signal that can be used for Operation like lighting, blind, hvac control, automation and maintenance like notification, alert. Configurable channels helps to customize within a system to meet specific requirements. Potential free input with max cable length of 30m and analog input for temperature sensor. I has a LED output of 2.2 mA. It has a tunable white and color light control. This device comes with a logical functions and counter. This KNX bus powered by POB and rated current is 18mA. This device enables flush mounting. The dimensions are (W) 43.5mm x (H) 35.5mm x (D) 15.4mm. The color of this device is white with glossy finish. The operating temperature is from -5°C up to +45°C. It reaches IP20 degrees of protection. KNX Secure is a security feature of the KNX standard for home and building control. Flexiblity save installation time as well as to increase flexibility and adaptability to future developments.
