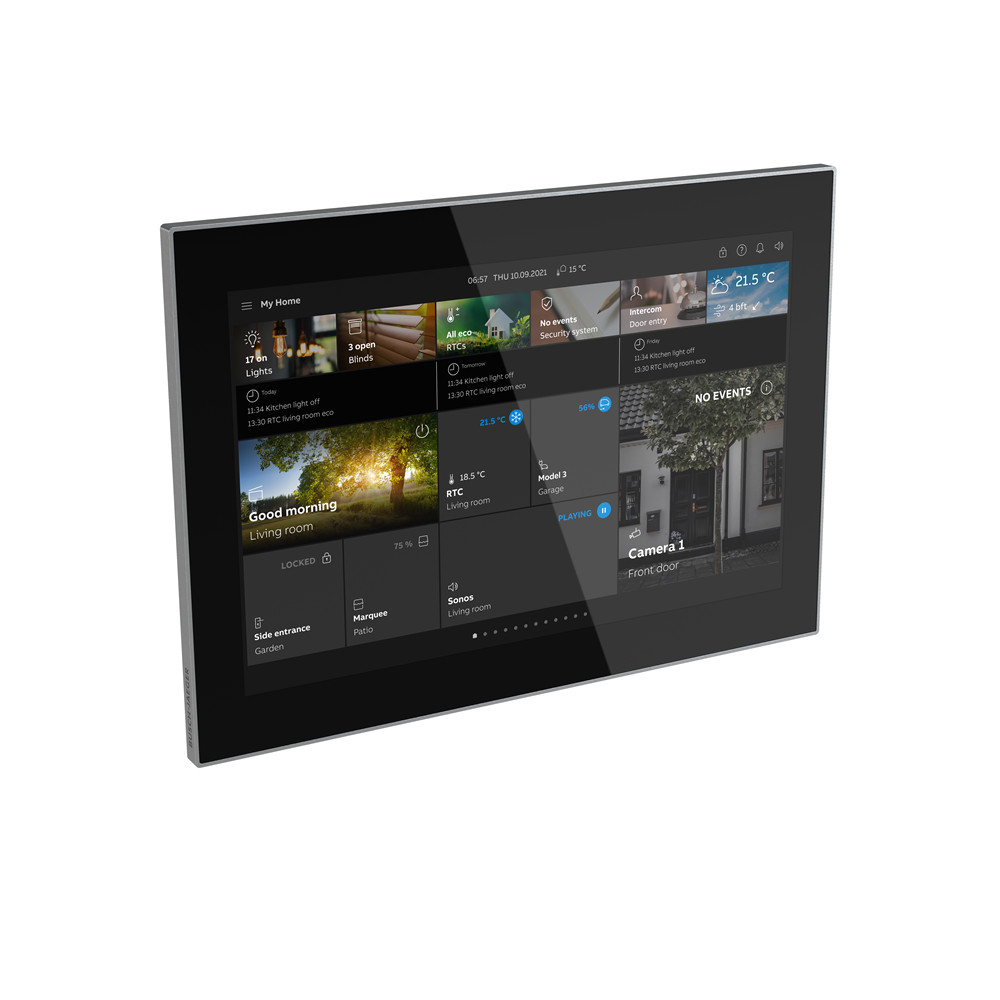

ST/U10.x.11-8xx Busch-SmartTouch 10

Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. Busch-SmartTouch® 10" offers home control and monitoring of the KNX system and the fully integrated functions of Busch-Welcome®. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. Busch-SmartTouch® 10” can also be used as an end device for communication with the Busch-Welcome® outdoor stations. Functions: • A total of 450 control elements are displayed on a maximum of 25 pages. • 80 fault and alarm messages • 30 logic functions • 40 time programs • presence simulation for 20 participants • 10 scene actuators • 3 object RTCs • Equipped with a hearing loop for coupling the audio signal into hearing aids • Page display with a maximum of 18 touch surfaces on one page External power supply: 20-32 VDC (SELV) or via the Busch-Welcome® system controller. Display size: 25,4cm (10”): Display resolution: 1280*800 : Display screen: IPS display Dimensions (L x W x D): (180.2mm x 254.6mm x 17.5mm) Flush or wall mounted, mount for desktop installation The flat design slim real metal frame sits almost flush with the wall (14mm) and is available in 4 col-ours (stainless steel, graphite, gold and rose gold) and black or white glass.
