Switch 16x / Shutter 8x (10A) VIVO

VIVO Naos

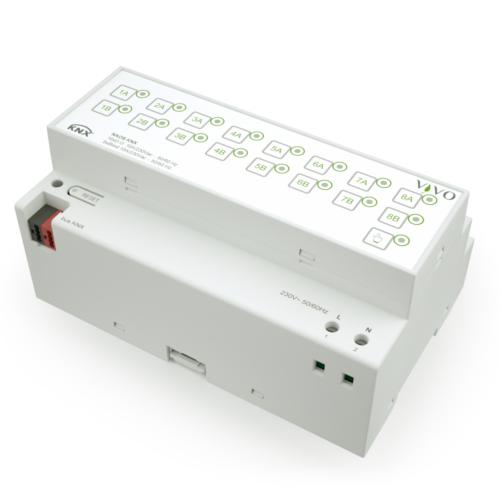

NAOS KNX actuator is an KNX rail mounting modular device for the independent switching of loads (single or groups) and controlling of 230 Vac motorised actuators. It features specific control functions like pump management by valve approval, working time counter (kWh) and up to 8 logic operators (AND, OR, XOR) configurable for each channel. To operate, the device receives a telegram from the bus, sent by a KNX device (such as a button, a sensor or another switching or control device), which causes one or more relays to open or close. The device requires an auxiliary 230 Vac power supply.
Category Value
Catalog Item Name Switch 16x / Shutter 8x (10A)
Application Program Name Switch 16x / Shutter 8x (10A)
Order Number VIVO Naos
Rail Mounted Yes
Manufacturer Website VIVO
Technical Documentation
