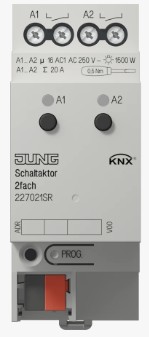

Switch actuator, 2-gang

Intended use Switching of electrical loads AC 230 V with floating contacts Operation in KNX system Mounting on DIN rail according to EN 60715 in distribution box Product characteristics Outputs can be operated manually, construction site mode Status indication on the front of the device with LED Switch-off of unnecessary outputs Xpress configuration in the ETS KNX Data Secure compatible with ETS 5.7.7 or ETS 6.3.0 or higher Can be updated with the ETS Service App Characteristics switching operation Operation as 1-way NO or 1-way NC contacts KNX status display in manual operation and in bus operation Logic operation and forced guidance Central switching function with collective feedback Time functions: switch-on delay, switch-off delay, staircase lighting timer with switch-off warning Scene function Operating hours counter Logic function characteristics Logic gates Transformer (conversion) Disabling element Comparator Limit value switch The total current of two adjacent outputs must not exceed 20 A.
