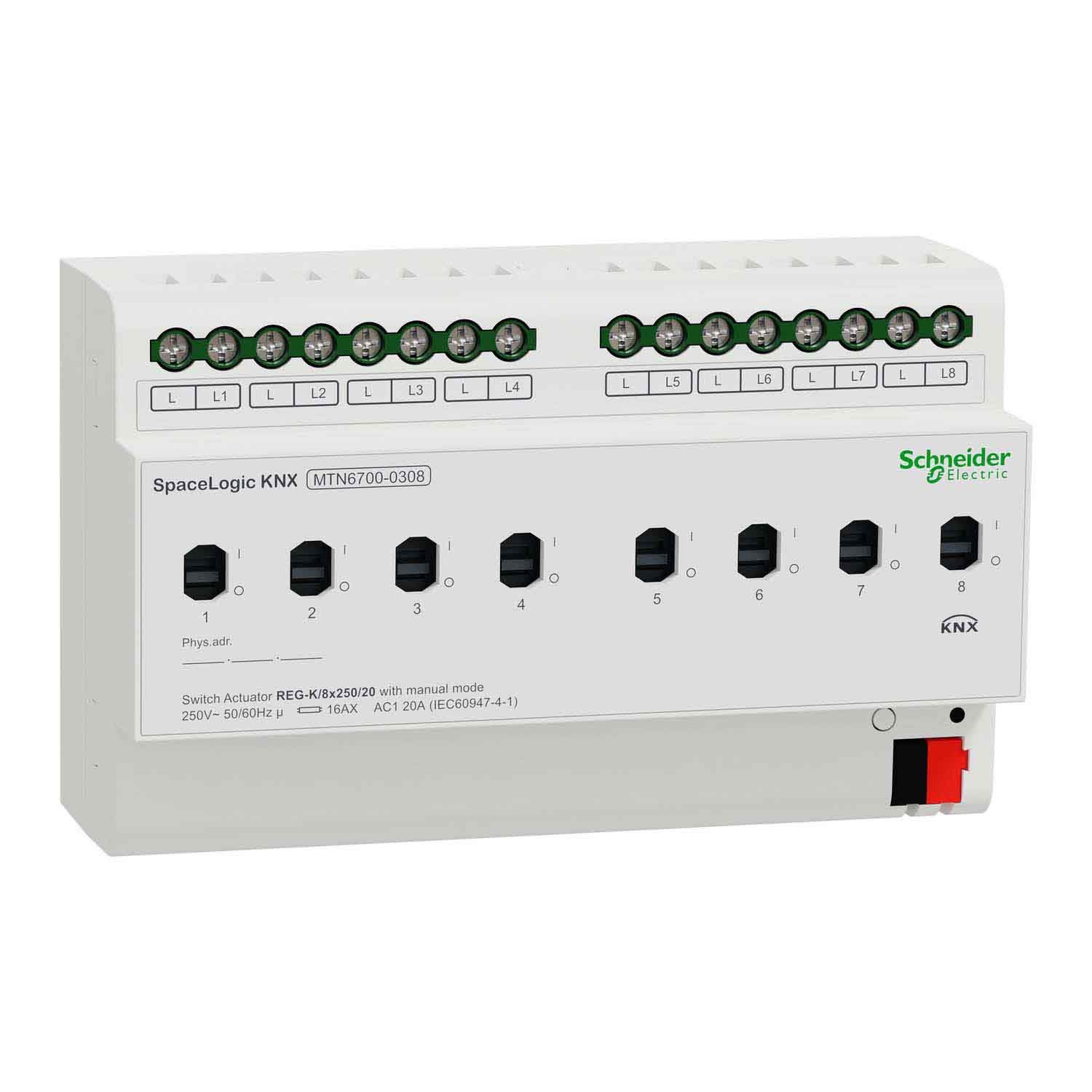

Switch Actuator REG-K/8x250/20 manual mode

This Schneider Electric SpaceLogic KNX Switch actuator operates by KNX bus type with manual mode for switching up to 8 loads via make contacts. A green LED indicates readiness for operation after the application has been loaded. The function of the blind or switch, and heating channels are freely configurable. The switch modular does not require an auxiliary power supply and is ready for immediate use after applying the bus voltage. The assignment of the physical addresses as well as the parameterization is carried out with ETS. The connection to the KNX is implemented using the bus connection terminal on the front. This switch actuator is used for infrastructure, commercial buildings, airports, subways, hospitals etc. Its Ue-rated operational voltage is 250VAC at 50/60Hz. Its rated current is 20A/16AX. The load handling of 250V LED lamp is 750W, incandescent lamps is 4000W and fluorescent lamps with electronic ballast is 4000W. This device enables DRA (DIN-rail adapter) mounting. The dimension of the product is (W) 114mm x (H) 64mm x (D) 90mm and the product weight is 433g. The color of this device is white. It is made of plastic material. The ambient air temperature for operation is from 5°C up to +45°C. It reaches IP20 degree of protection. This device is compliant with IEC60947-4-1, IEC60669-2-1 standards and with CCC certification.
