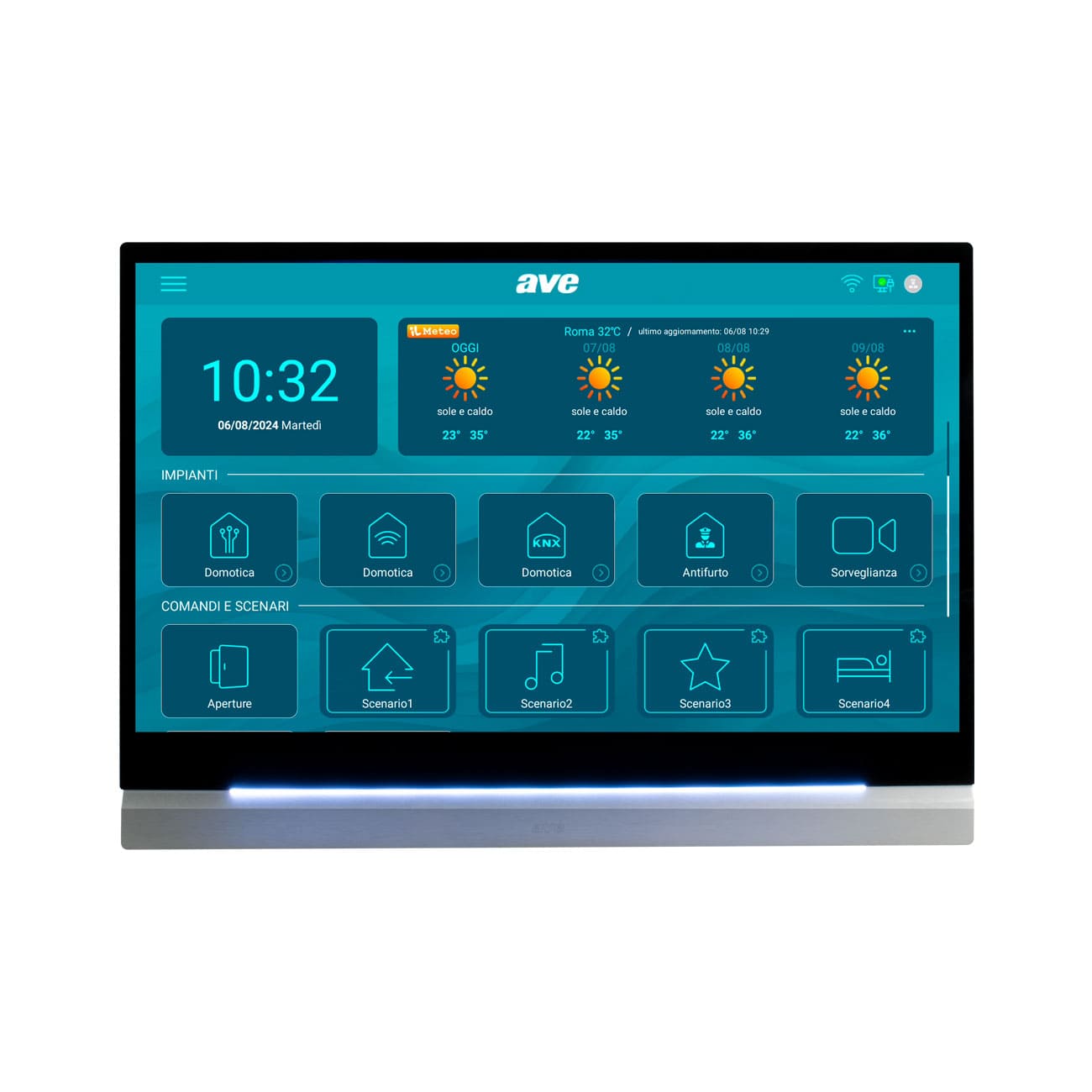

TS-SMART18ALS Touch panel 18" natural aluminium

DOMINA V44 SMART touch screen with 18" color graphic LCD. Bi-material structure: aluminium, brushed natural aluminium color and glass with black frame. User-selectable color LED bar. Can be powered directly by cable data through a 48V PoE switch or with a 24Vdc switching power supply. It can be interfaced, by opening a web page, with: KNX web server, AF927PLUS and AF927PLUSTC burglar alarm control units, external video intercom stations from the IP V44 SMART range, IP cameras visible via RTSP protocol. Double wired network card + WI-FI. Supervision of commands with KNX protocol: management of up to 6790 group objects (lights, RGB, dimmer, shutters, music, scenarios, HVAC, energy meters, etc...). Recessed installation on BL07P or BL07CG box installed horizontally using the special bracket supplied. Dimensions (LxHxD): 399x278x54 mm.
