Universal interface 4 DI / 4 DO

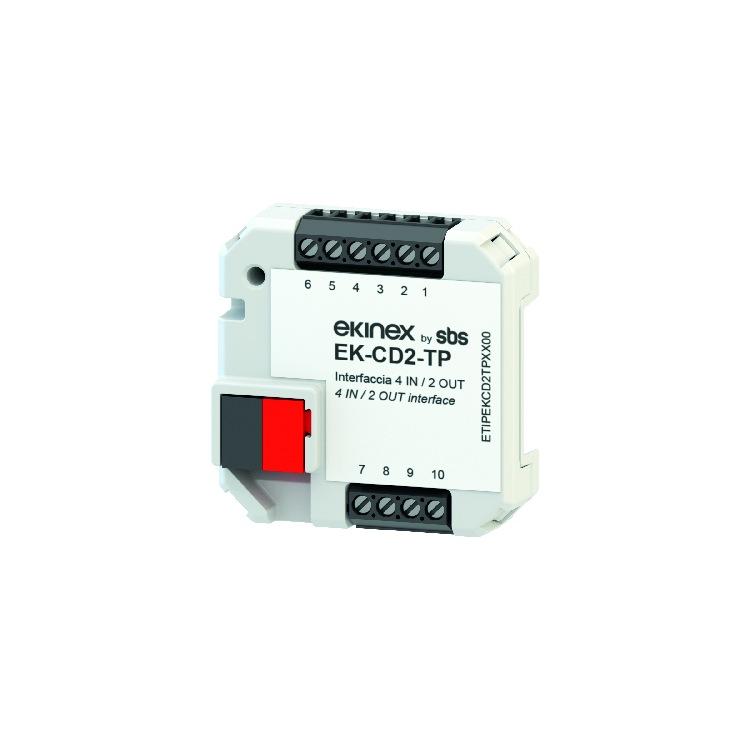

ORDERING CODE EK-CD2-TP DESCRIPTION KNX bus device functioning as 4-channel input for the connection of potential-free contacts and 4-channel output for control of low-consumption LED. Mounting in wall box or on 35 mm rail (EN 60715) with the support EK-SMG-35 (to be ordered separately). Power supply via bus. Bus terminal block included in the delivery. To be used in KNX installations for home and building automation. FUNCTIONS / CHARACTERISTICS INPUTS • ON/OFF switching of single loads or group of loads • dimming of lighting devices • operating of shutters and roller blinds • detecting the state of signaling contacts (from safety devices, alarms, etc.) • recalling and saving of scenes • sending on the bus of values (temperature, brightness, etc.) • switching to forced functioning (lock) • counting of impulses and switching cycles OUTPUTS • controlling of low-consumption LED to be used as state feedback, orientation nightlights, etc. CONFIGURATION AND COMMISSIONING A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS4 2.0 or later versions. ETS application program: APEKCD2TP##.knxprod (## = release). Available languages: English, French, German, Italian
