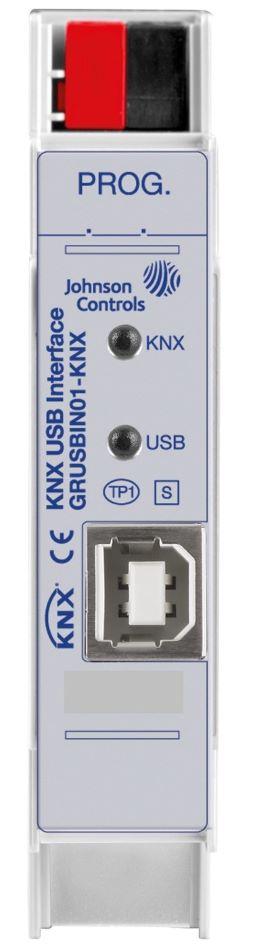

USB Interface

GRUSBIN01-KNX
USB INTERFACE
The device enables the KNX bus system to be interfaced to a PC equipped
with a USB 1.1 or USB 2 port for programming or managing through appropriate
software.
FEATURES
-It can be used as a programming interface for ETS® Software Version 3 (or higher) and supports KNX long
frames.
-Long telegrams enable a faster download to devices that can receive these telegrams.
-The LEDs on the device indicate the operating status and communication errors on the bus.
-The USB connector is galvanic isolated from the KNX bus.
