8 Residential project in Lusail, Qatar
Villa in Lusail
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Villa |
| Project Type | Residential |
| Year of Completion | 2026 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used

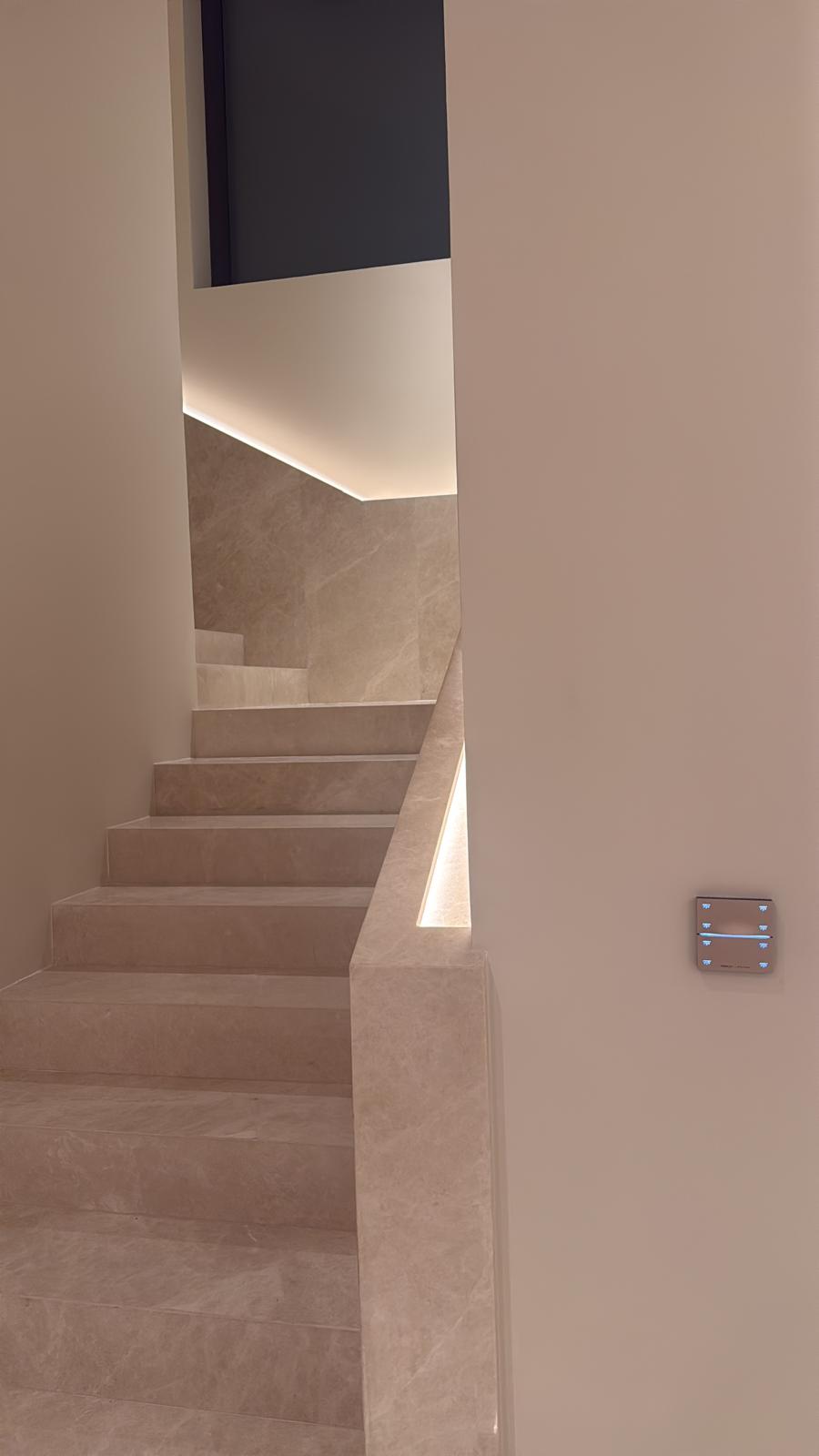

- Lighting - Switching, Dimming, Light Scenes
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control
- Security and Safety
- Operation and Visualisation
- Energy Management/Smart Metering
- Other - Audio Control
- Automation and Remote Access
- Blind and Shutter Control - Group & Central Control
Customers Description

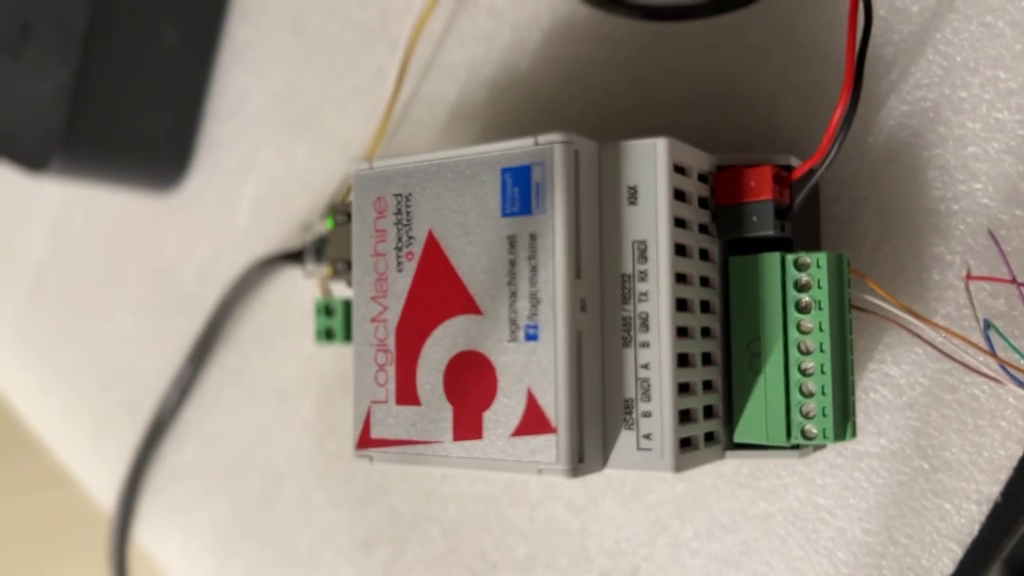

The project consists of 8 standalone villas each required audio and AC integation.A LogicMachine KNX controller was used as the central integration gateway, enabling communication between KNX and third-party systems.

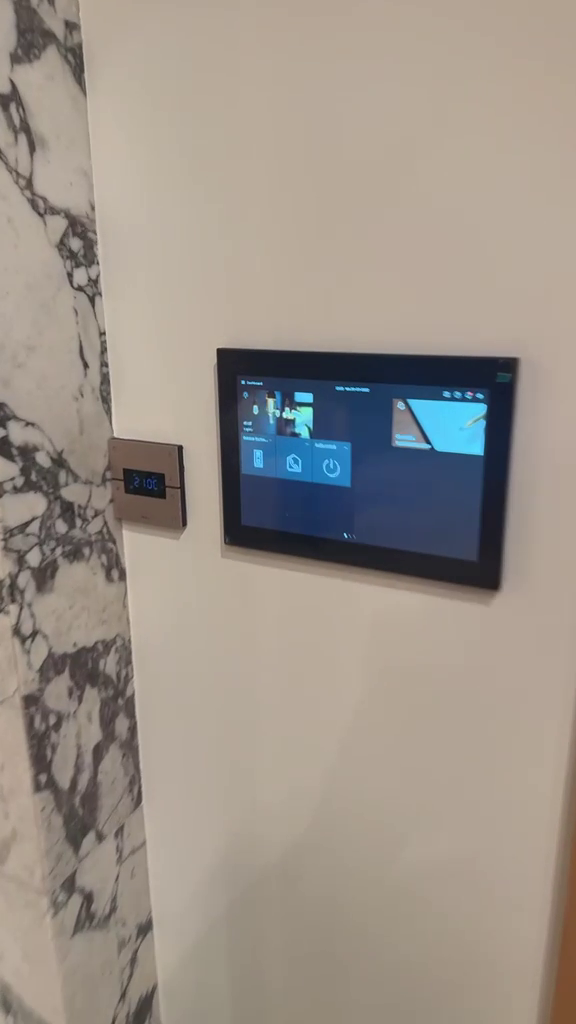

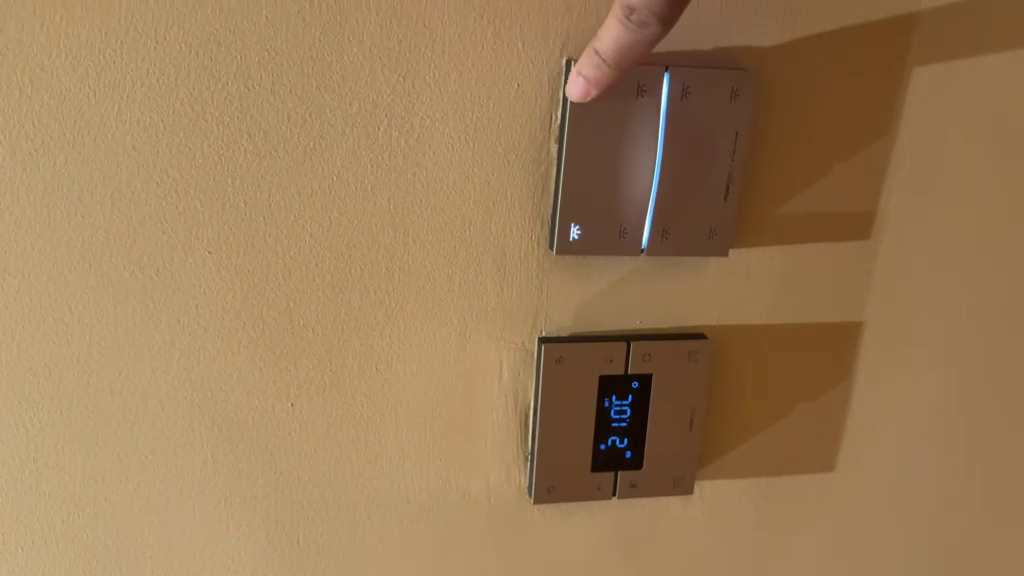

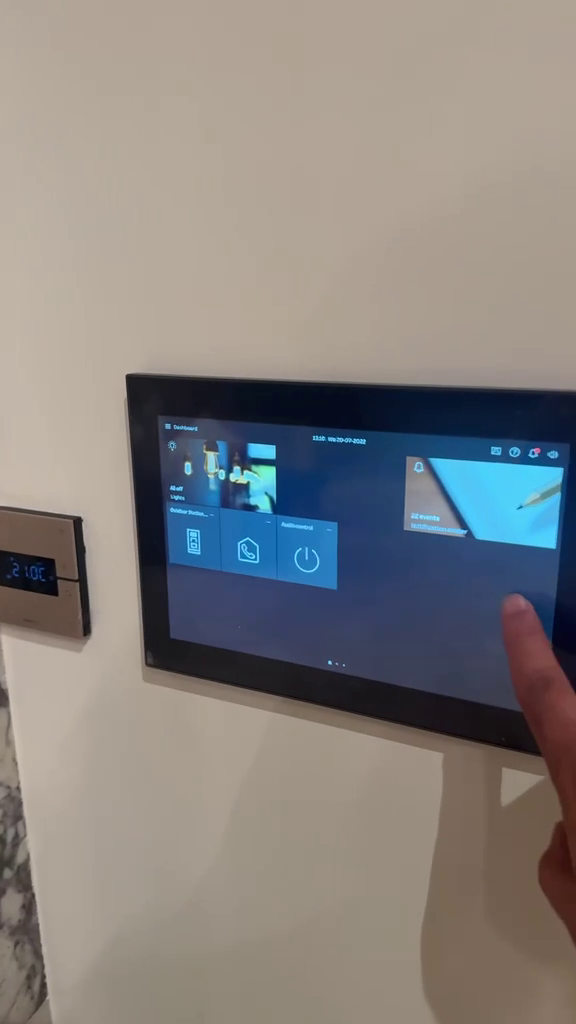

The Samsung VRF air-conditioning system was integrated via BACnet, allowing HVAC monitoring and control directly through the KNX infrastructure. Users could operate climate functions from KNX keypads and interfaces without requiring a separate HVAC control platform.

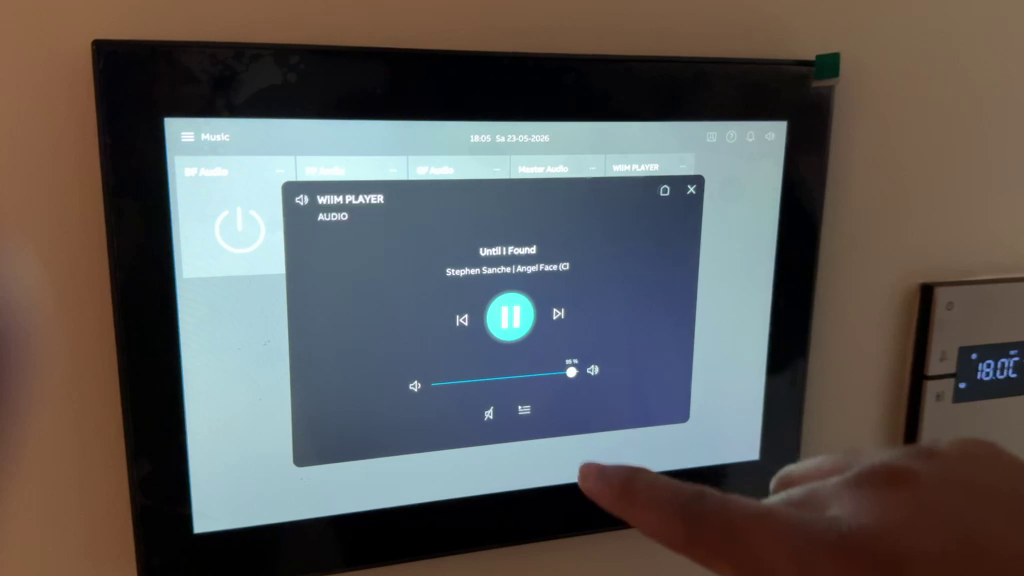

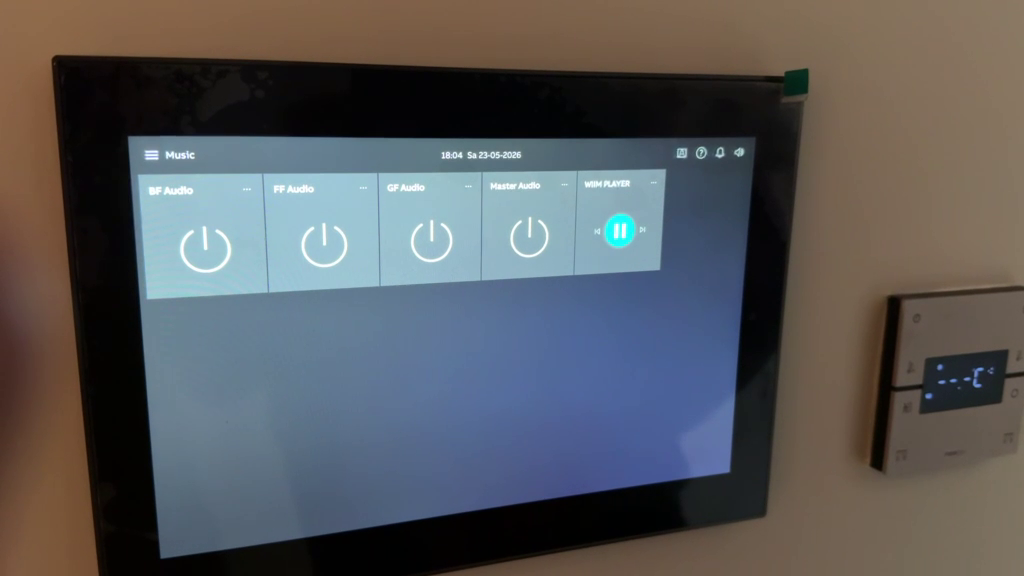

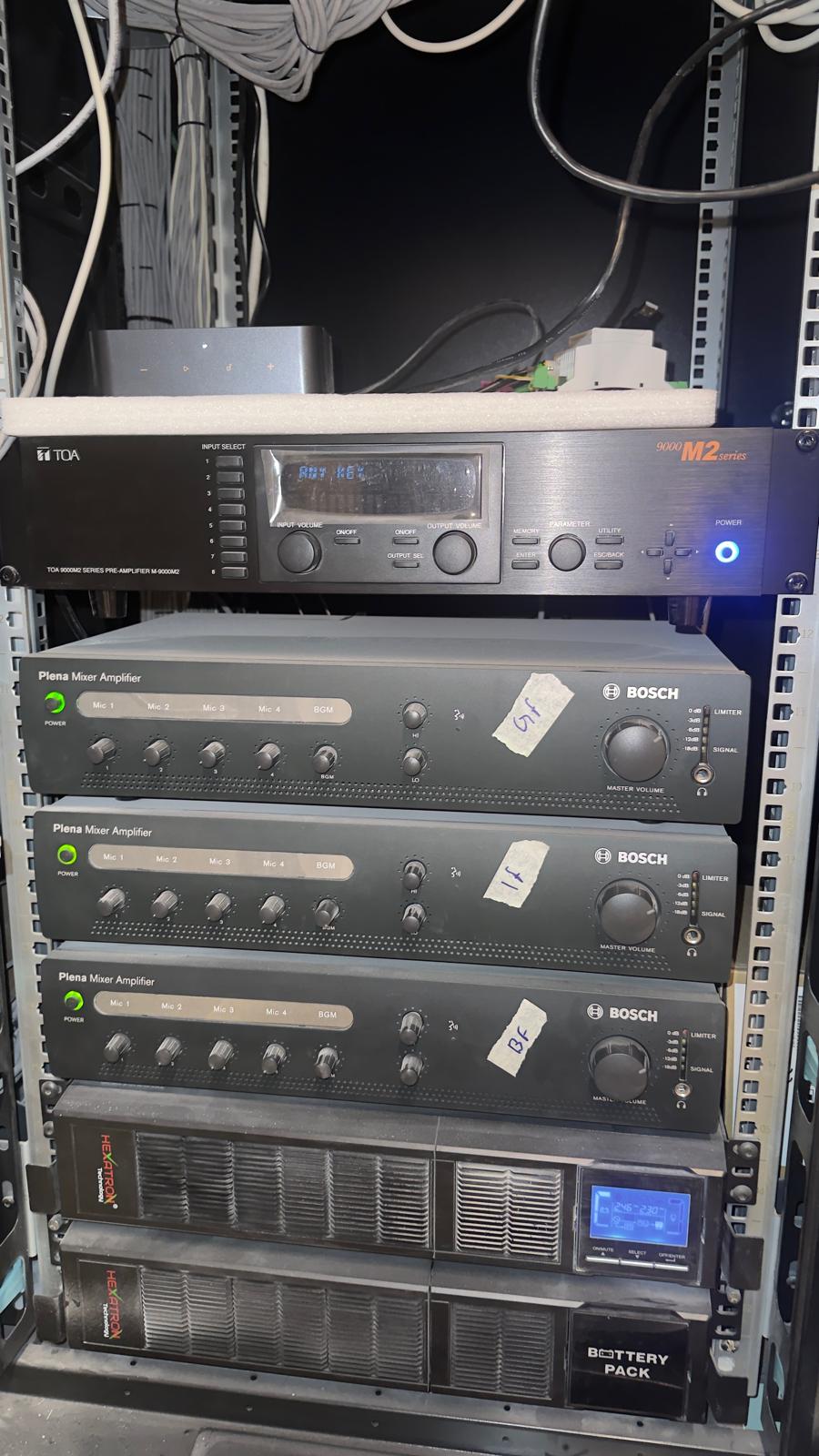

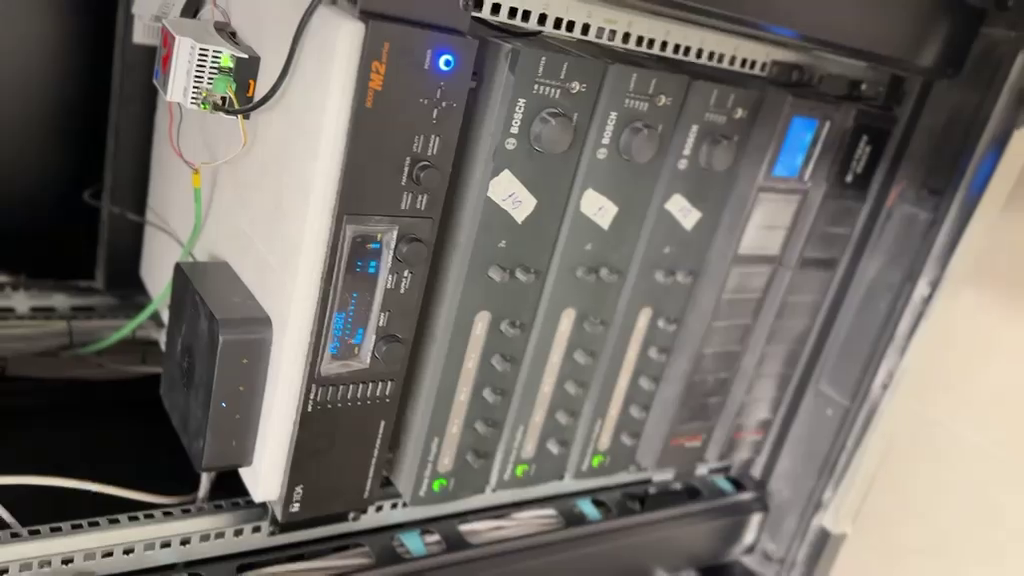

For audio integration, a TOA 9000M2 mixer/amplifier was connected through RS-232 communication, enabling control of audio functions such as power, source selection, and volume adjustment from KNX. A WiiM Pro music streamer was integrated using its network API, providing access to digital music sources and playback control, Audio titles within the same automation environment.
Controller allowed us to use scripting language like LUA script to perfom logic and api calls and pass it to KNX TP.
Contact Information
| Company Name | Gravity International |
| Company Email | glen@gravitywll.com |
| Company Website | https://gravitywll.com/ |
| Contact Name | Glenn Lloyd Saldanha |
| Contact Function | System Integrator |
