Administrative Building
Office building in Cairo
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2026 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, Web Servers, Touch Panels & Display Panels
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions
- Blind and Shutter Control
Customers Description

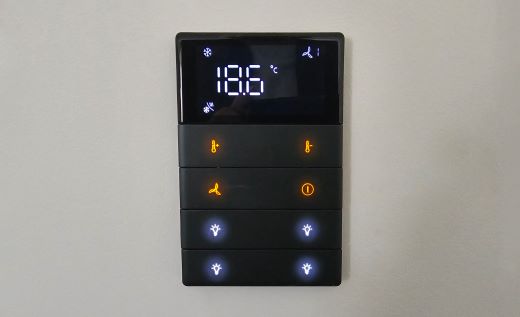

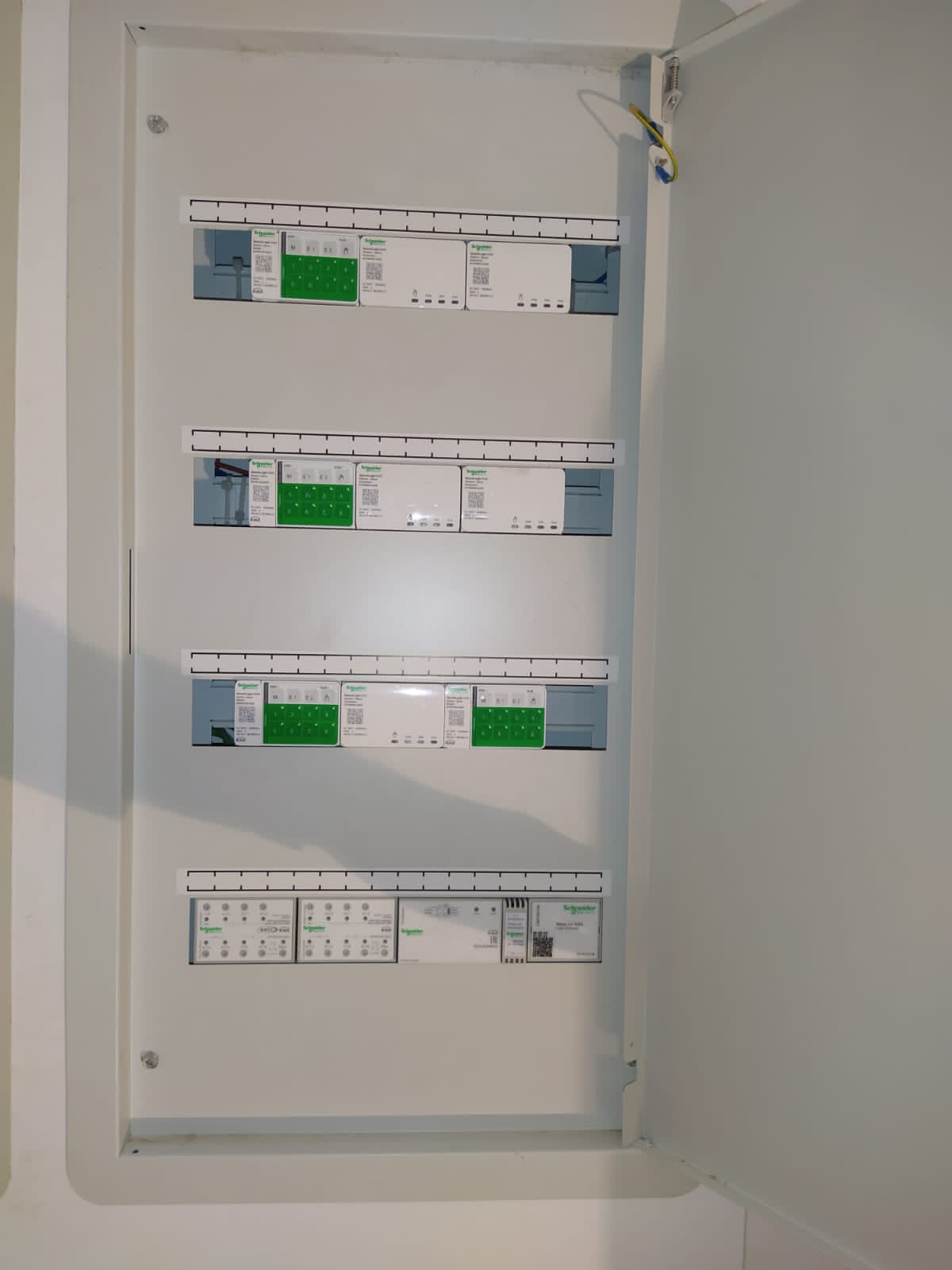

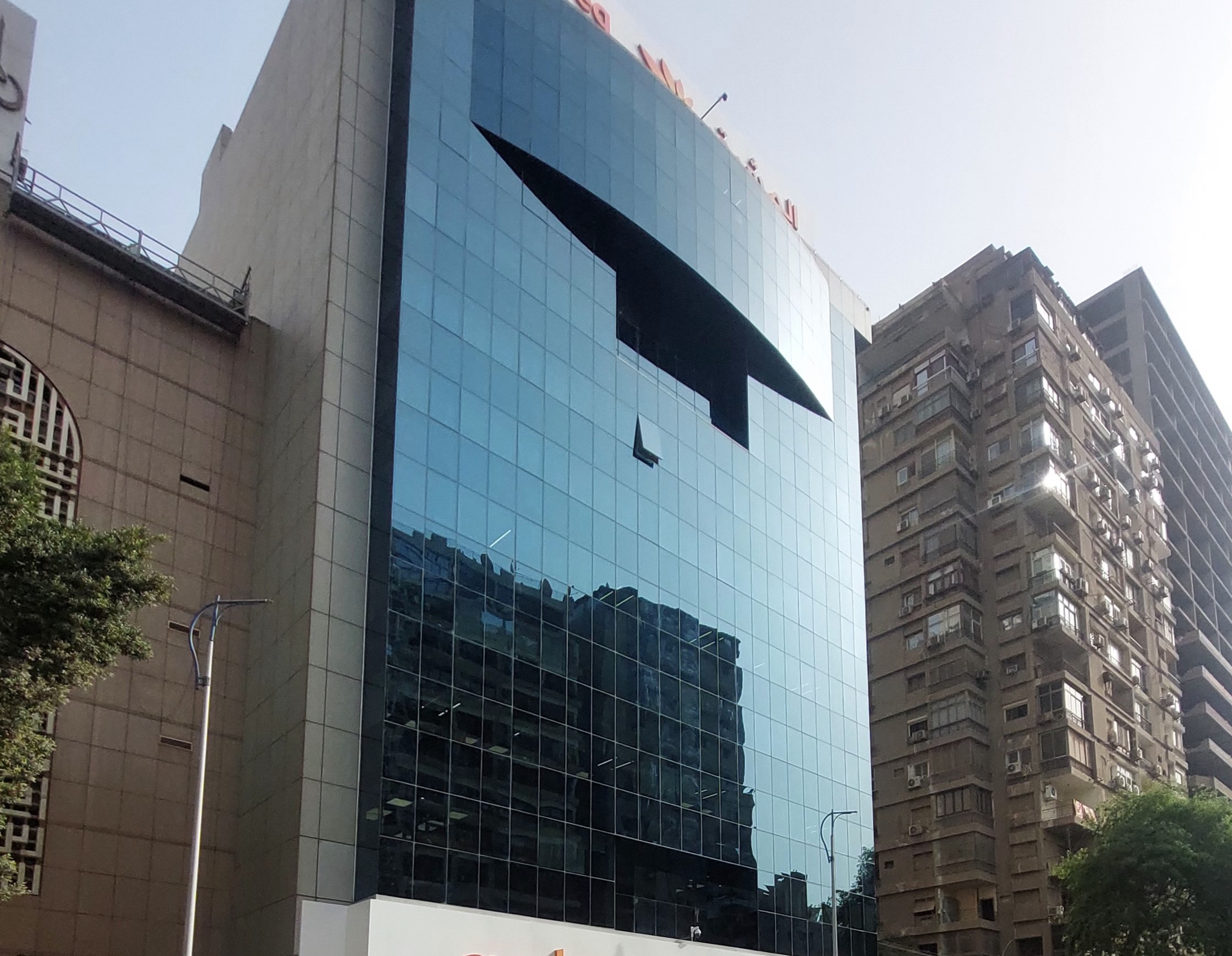

A 13-floor administrative building exceeding 5,000 m² with 18 meeting rooms in Cairo's Doukky District was fully automated using a KNX/IP infrastructure managed by five Schneider SpaceLynk controllers. The network spans 678 KNX devices across one area and 11 lines. Lighting is handled by 24 DALI Pro gateways controlling 1,136 ECGs, with 69 DALI and 282 KNX presence sensors enabling daylight harvesting and occupancy-based zone control. Climate is managed by 174 fan coil actuators and 58 Daikin VRV interfaces responding dynamically to real-time occupancy data. Users control scenes and set-points via 156 wall keypads and thermostats. The open KNX standard enabled seamless integration of DALI and BACnet protocols, reducing commissioning time across all floors. Energy data contributed directly to the building's LEED certification submission, confirming measurable sustainability impact beyond operational comfort.
Contact Information
| Company Name | LSEgypt for trading & contracting |
| Company Email | khaled.ahmed@lsegypt.com |
| Company Website | https://lsegypt.com/about/ |
| Contact Name | Khaled Ahmed |
| Contact Function | System Integrator |
