ANRI ACEH BESAR
Other in ACEH BESAR
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Other |
| Year of Completion | 2019 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 6 – 10 |
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Individual Room Control / Zone Control
- Security and Safety - Access Control, Supervision (e.g. Cameras)

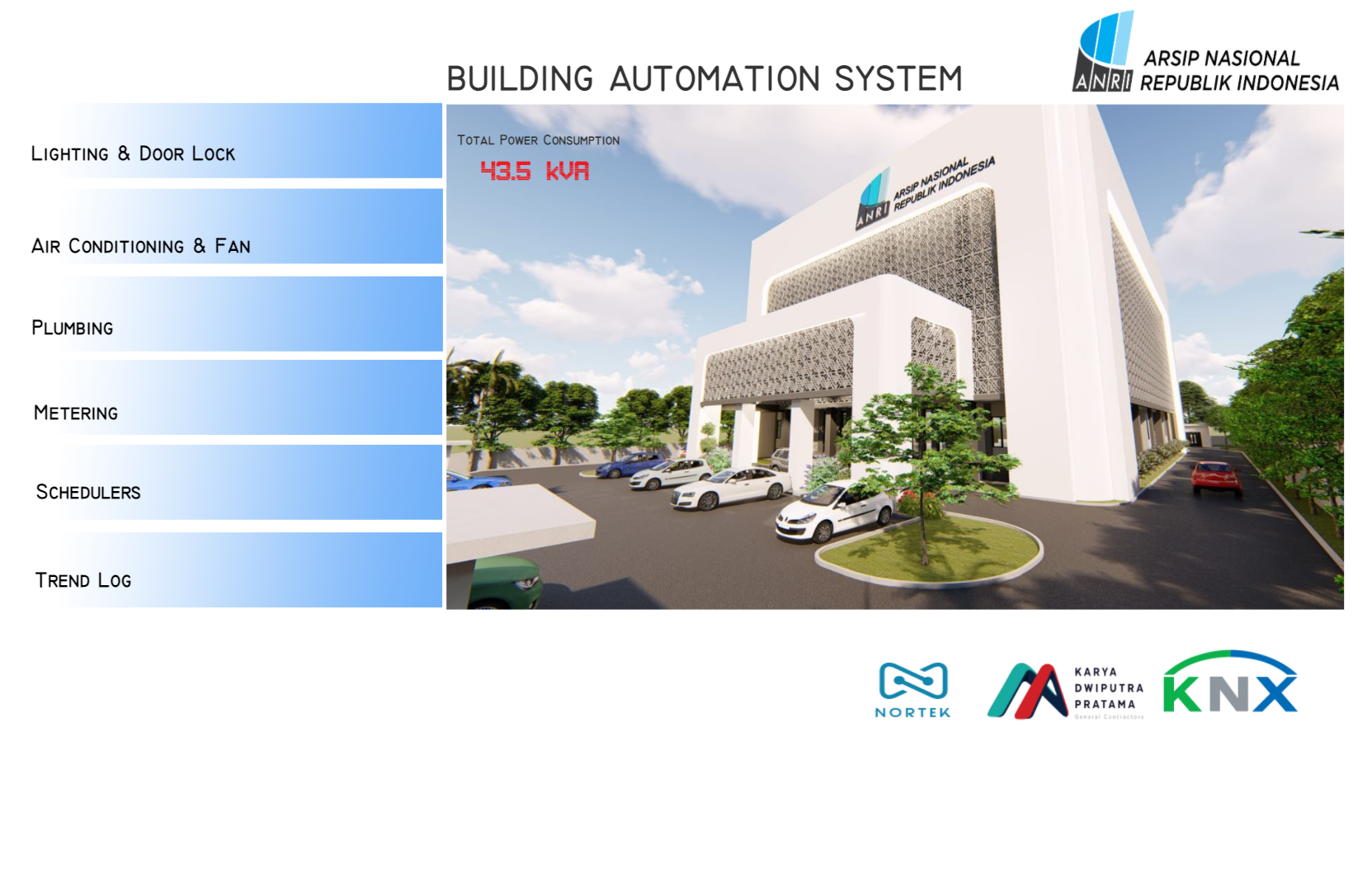

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones

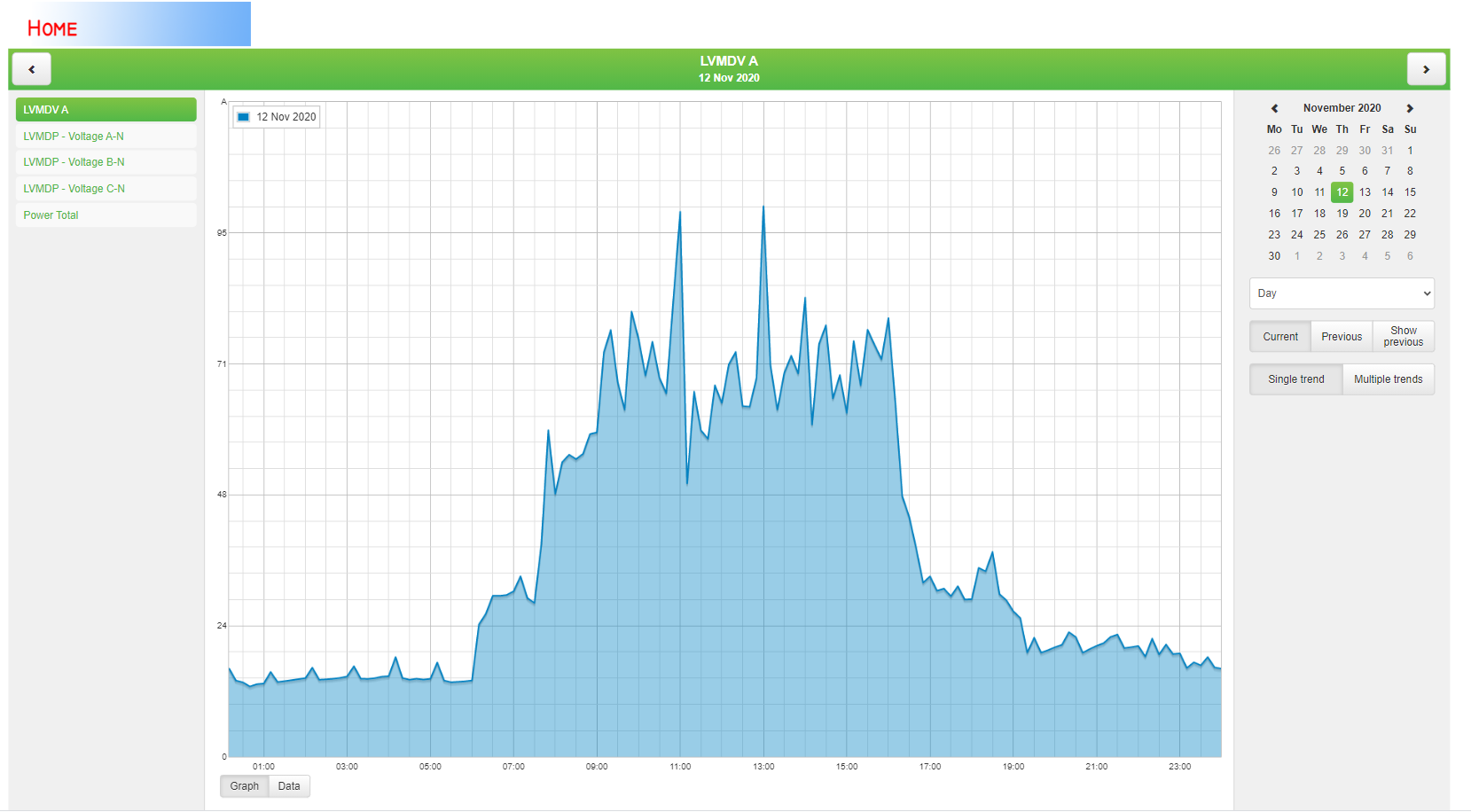

- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description
The building have 4 storey , this building main functional purpose is to store documents in many kind media . we intall not just BAS system , but the whole electrical system in it including BAS system , we finished the project around 5 months .

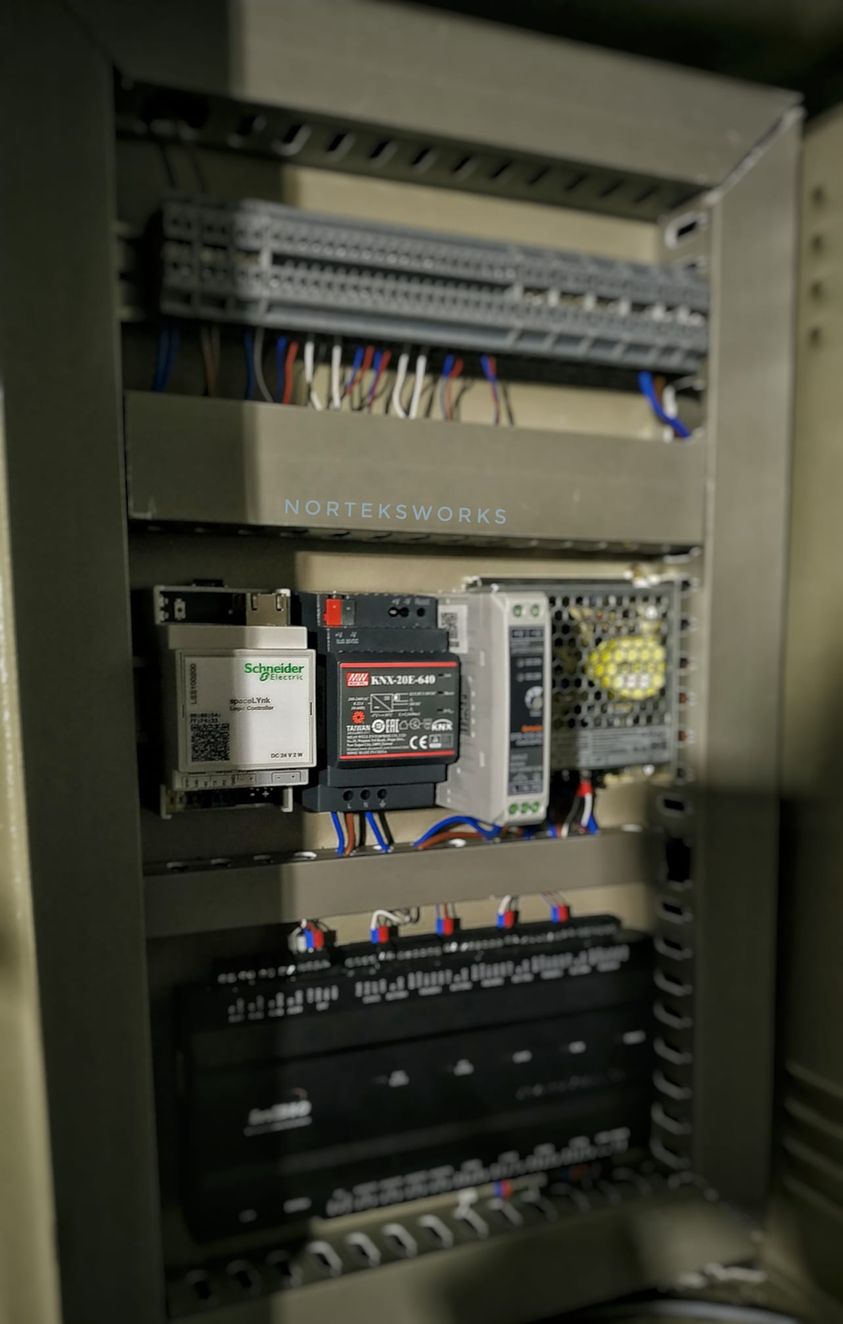

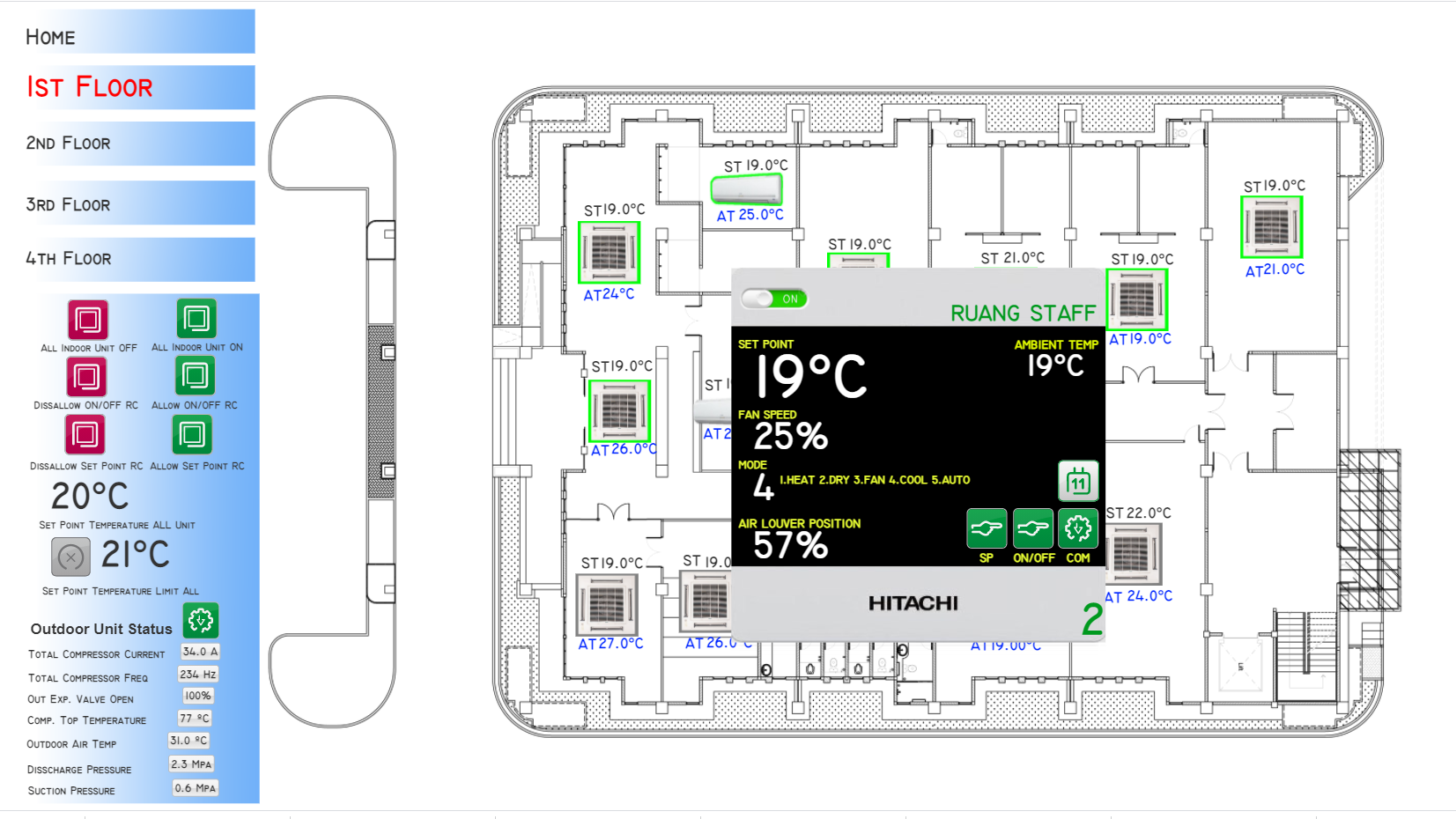

In this project i'm using KNX as main system , integrating it with other system such as access control using tcp , HVAC sytem H-Link bus using Intesis box , and metering using modbus protocol . we are using GVS system device and output device such as acuator , and scheneider for the logic control and metering , and IntesisBox for controling VRV hitachi system 47 indoor cassete.
Contact Information
| Company Name | Nortek Media Informasi |
| Company Email | ronny@nortek.co.id |
| Company Website | http://nortek.co.id |
| Contact Name | Ronny Jaelani |
| Contact Function | System Integrator |
