A'rabi Residential Complex
Apartment in Tehran
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Apartment |
| Project Type | Residential |
| Year of Completion | 2019 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Valve Drive Control / Fan Coil Control
- Security and Safety - Emergency Lighting, Presence Simulation, Supervision (e.g. Cameras)
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Data Logging
- Other - Audio Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control
Customers Description

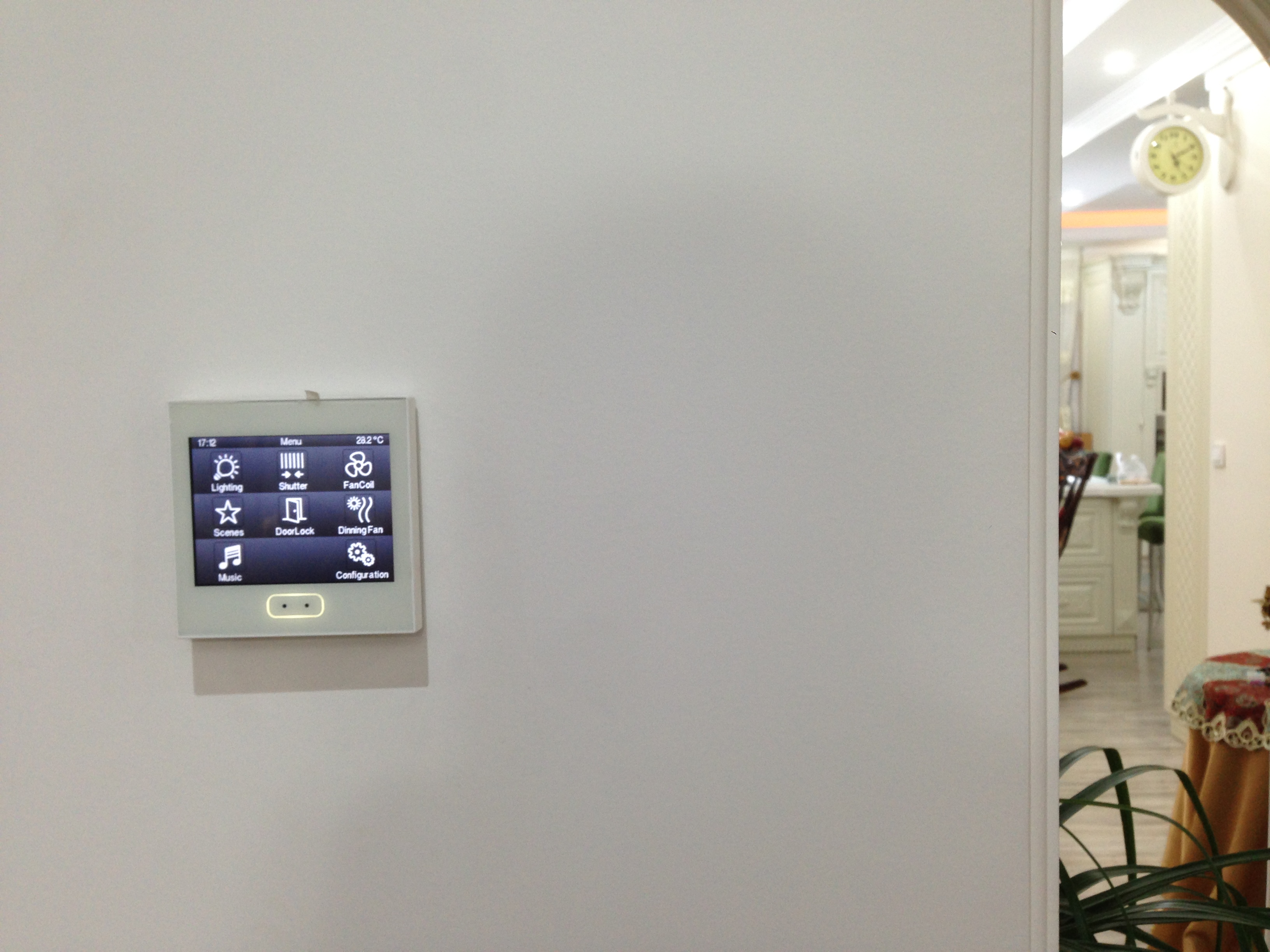

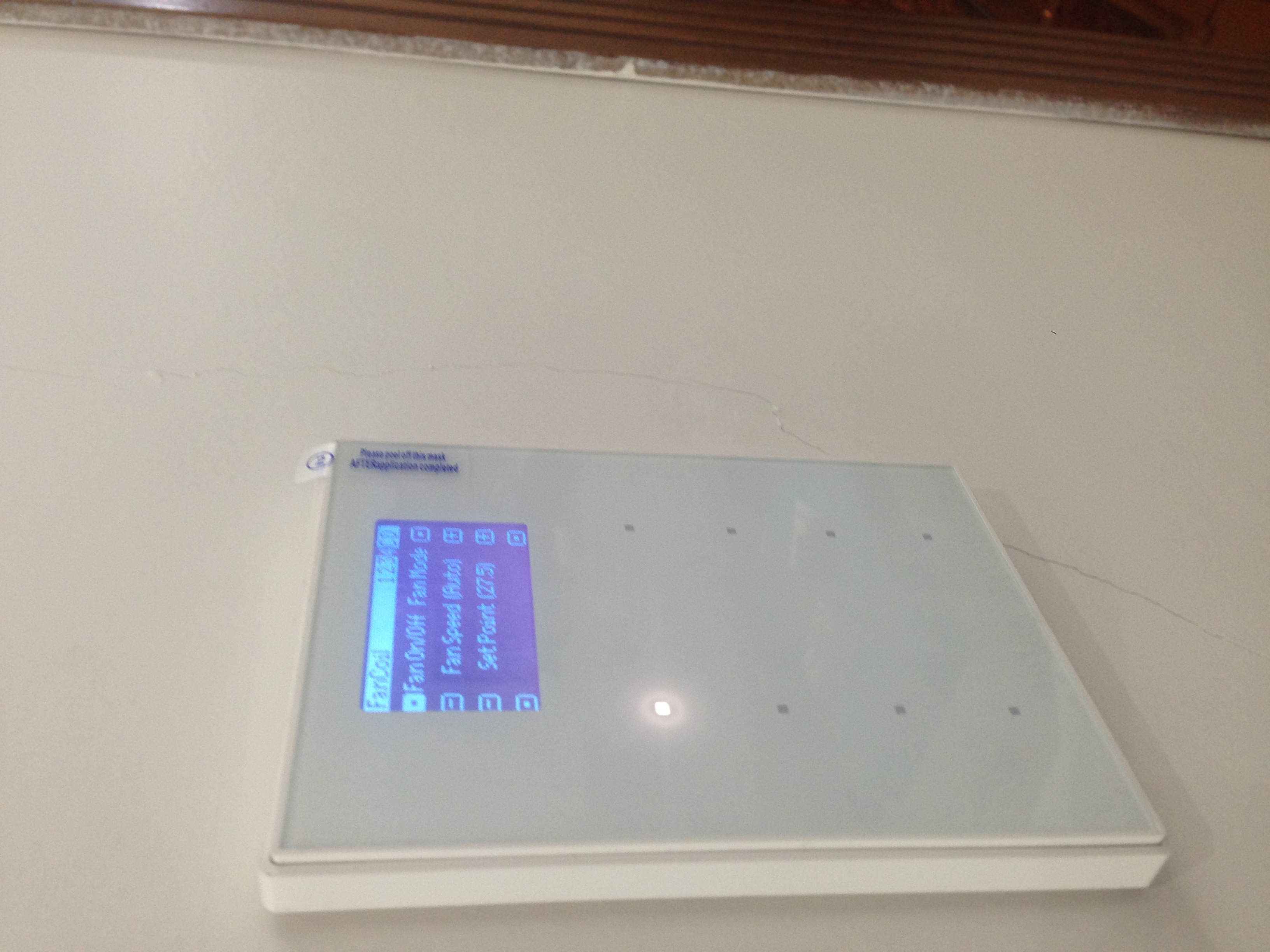

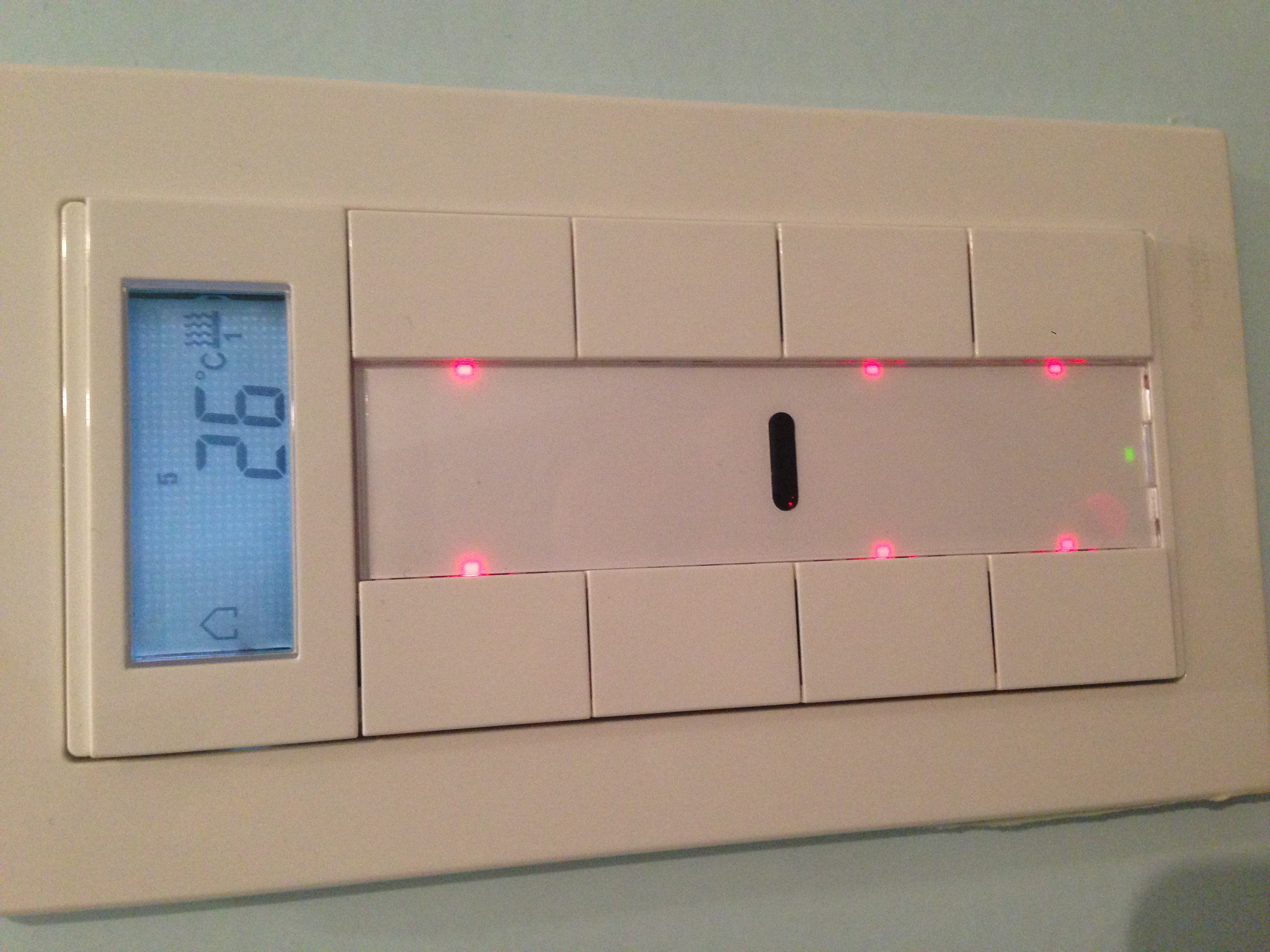

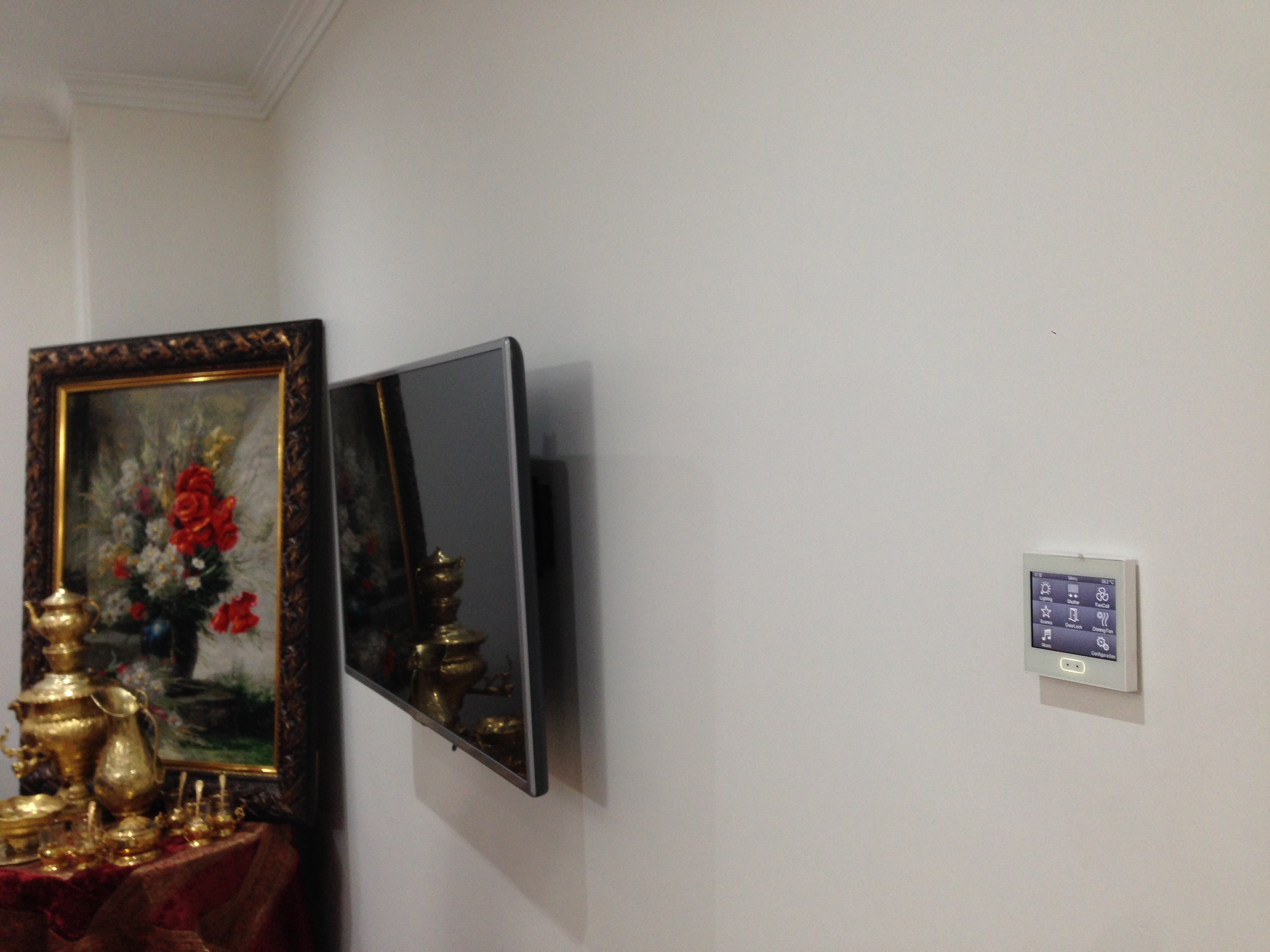

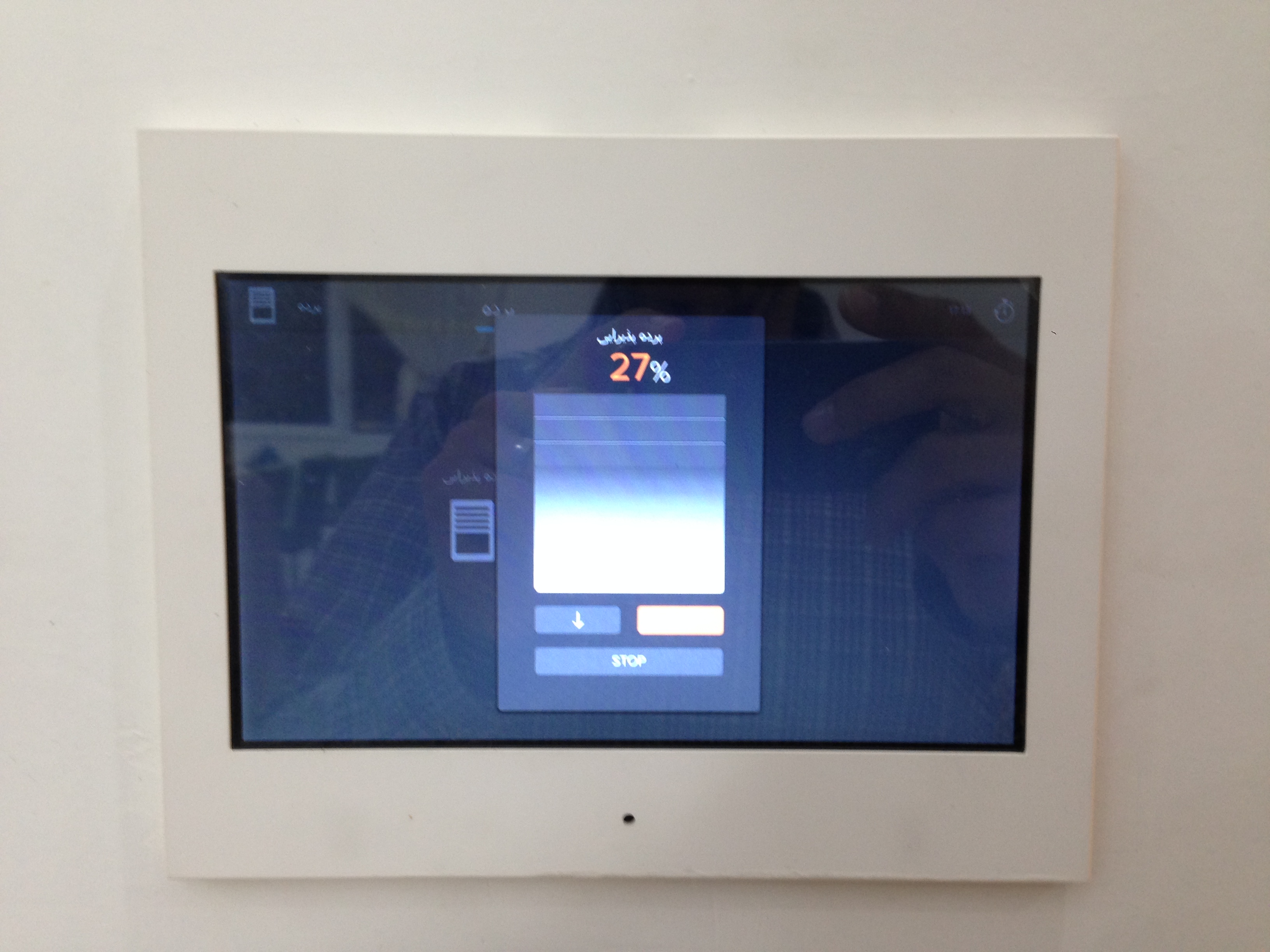

Located in a luxurious zone of Tehran, the project is one of the most great combinations of technology and design. The project is installed to cover different customer needs including lighting, shutters, fan-coil, music and scenes control. A central touch panel with graphical design and remote control by mobile application is installed to satisfy customer needs. Each room is controlled by a smart switch and there is two additional 3.5 inches touch panels to control all of the functions. The control is simple and distributed in each zone.
Contact Information
| Company Name | Artman Smart Energy Solutions |
| Company Email | r.bita@smart-buildings.ir |
| Company Website | http://www.Smart-Buildings.ir |
| Contact Name | Roozbeh Bita |
| Contact Function | System Integrator |
