Biohort GmbH
Other in Bezirk Rohrbach / Oberösterreich
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Commercial |
| Year of Completion | 2023 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 501 – 1.000 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control
- Security and Safety - Smoke/Fire Detection, Access Control, Intrusion Detection / Alarm Systems, Emergency Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Visualisation, Current Detection, Peak Demand Monitoring, Load Shedding , Use of Renewable Energies
- Other - Audio Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
Technik die lebt!

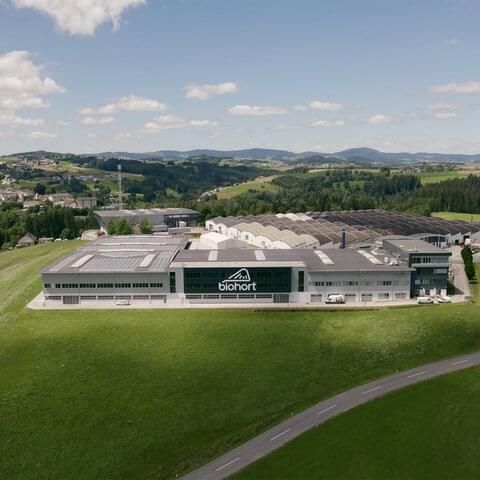

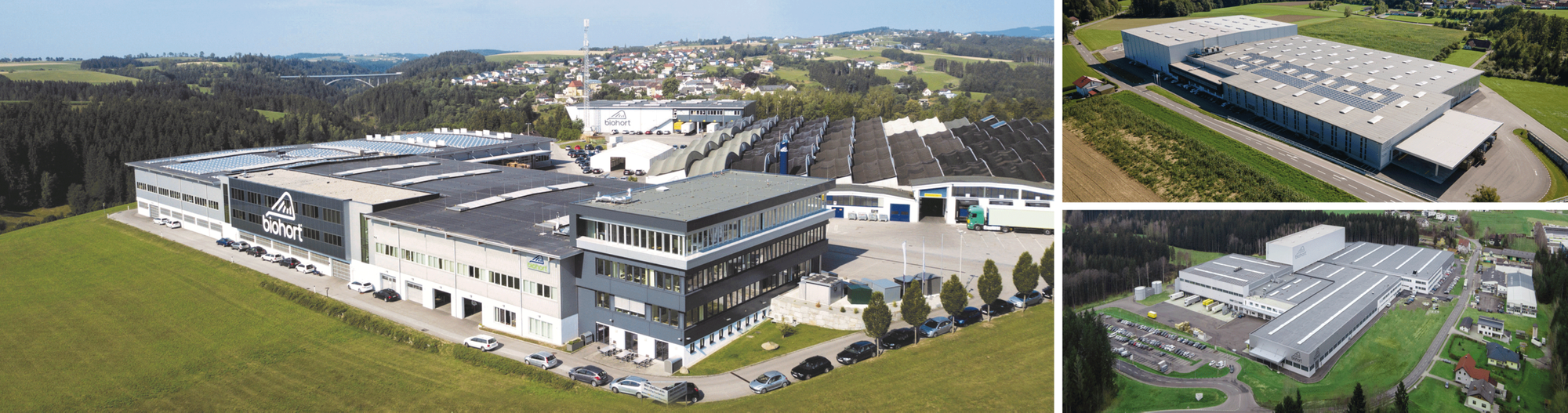

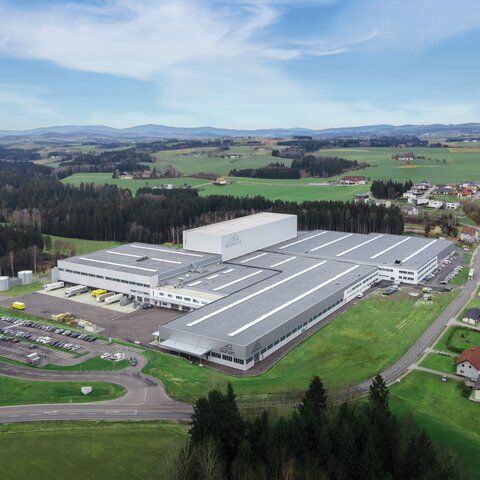

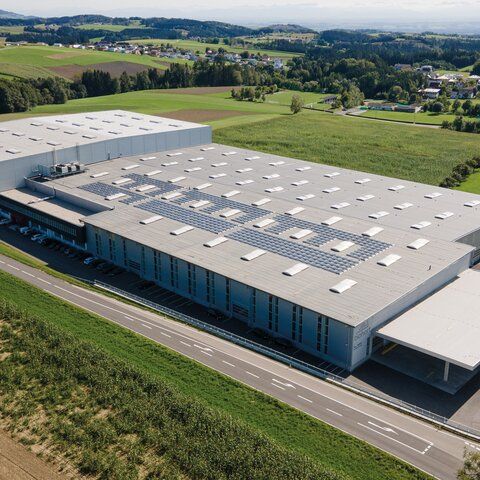

Biohort GmbH, ein oberösterreichisches Familienunternehmen entwickelt und fertigt hochwertige Outdoor-Produkte aus Metall wie zum Beispiel Gartenhäuser und Pflanzenbeete. Mit dem neu errichteten Werk 3, wurde die Produktionsfläche um 44 000 m2 erweitert. Jeder noch so kleine Winkel der drei Standorte wird mit KNX überwacht und gesteuert. Die insgesamt 129 Dali Linien dimmen mit einer Konstantlichtregelung die gesamte Beleuchtung automatisch. Bei einem Brandmeldealarm werden alle Ladestationen (E-Auto / Stapler) sowie die 600 KWp PV Anlage und die Heizungszentrale ausgeschaltet. Zusätzlich fährt die Beschattung nach oben und der Schranken bzw. die Haustüre öffnen sich für die anrückende Feuerwehr. Bei einem Stromausfall unterstützt das KNX System den Diesel Generator und versetzt die Anlage in einen Sparmodus. Das Licht wird begrenzt und Stromschienen ausgeschaltet. Jedes Tor/Tür und Fenster ist überwacht und wird visualisiert.
Contact Information
| Company Name | EBG GmbH |
| Company Email | biohort@ebg-anlagen.at |
| Company Website | http://www.ebg-anlagen.at |
| Contact Name | Klaus Schoßthaller |
| Contact Function | Installer |
