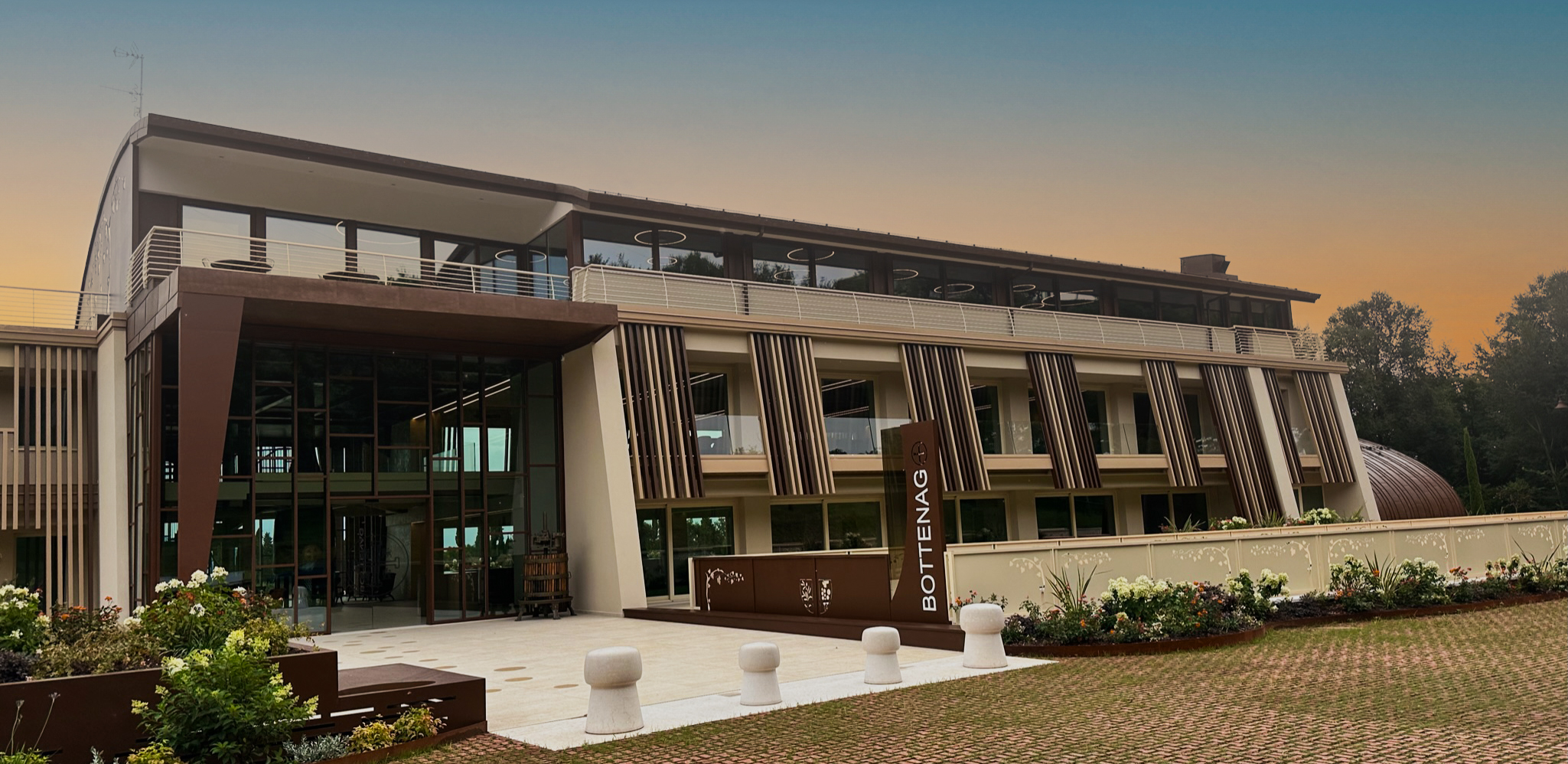

Cantina Bottenago
Other in Polpenazze del Garda (BS)
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Floor Heating Control, Boiler and burner Control
- Security and Safety - Supervision (e.g. Cameras), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring
- Other - Intercom, Irrigation Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description

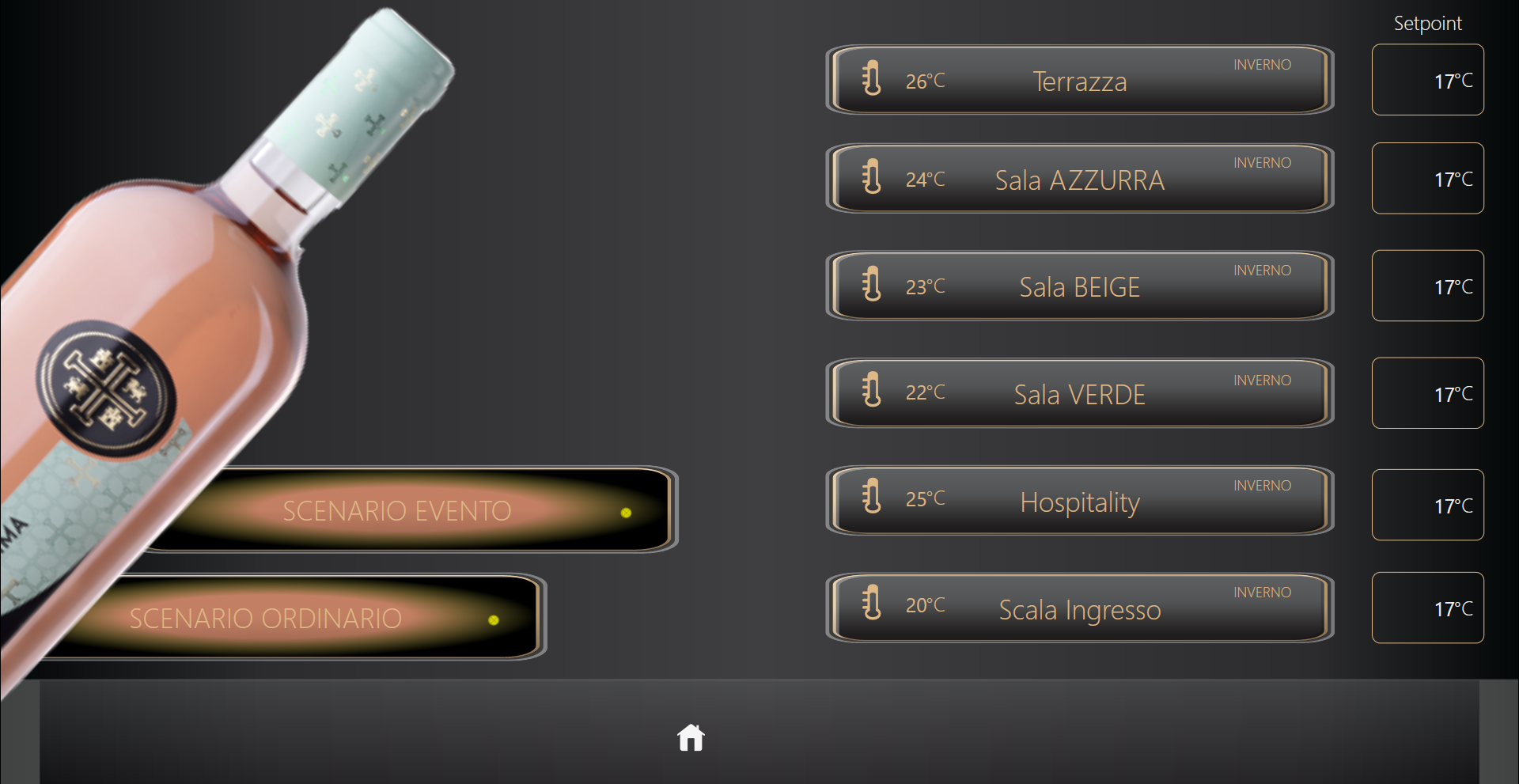

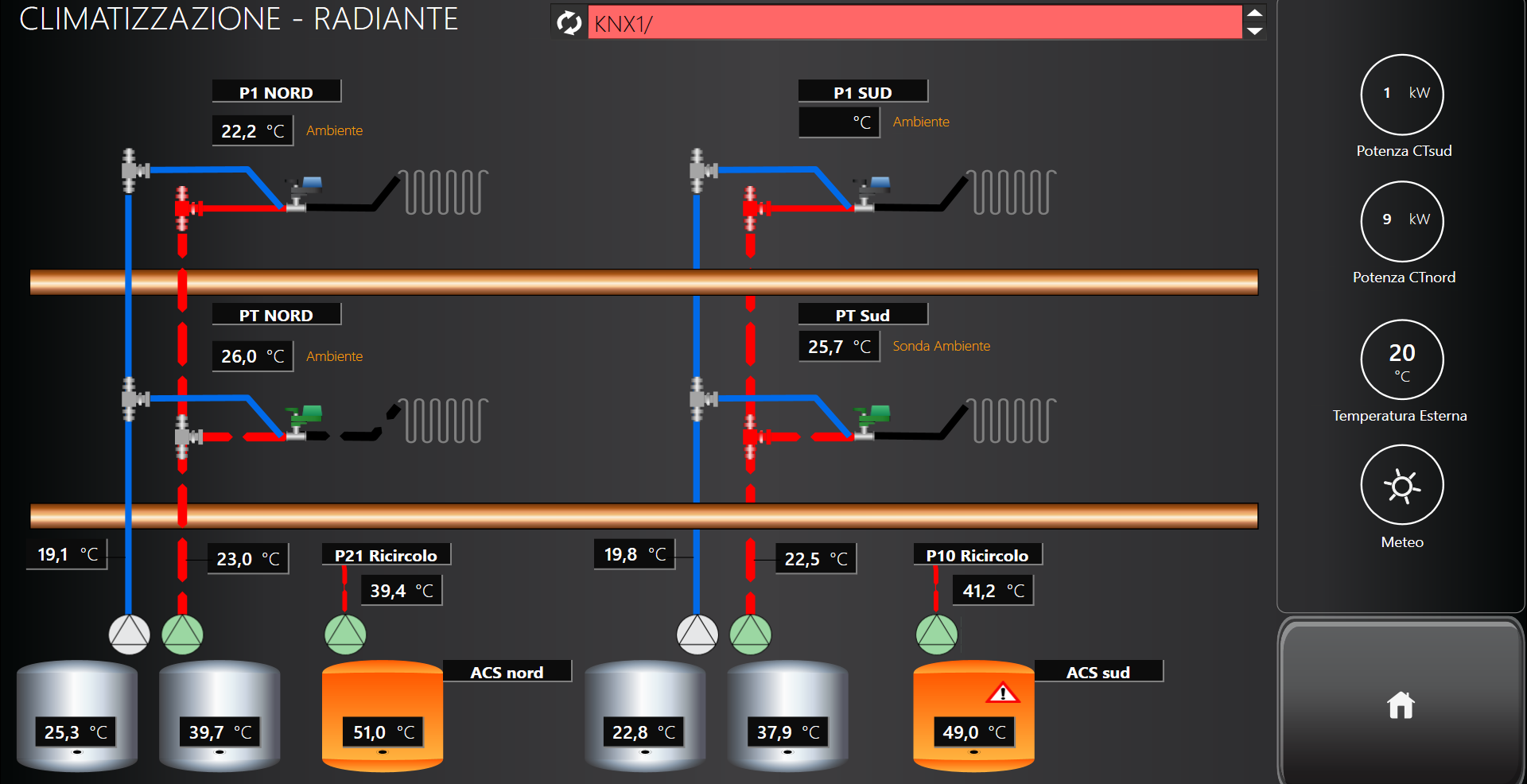

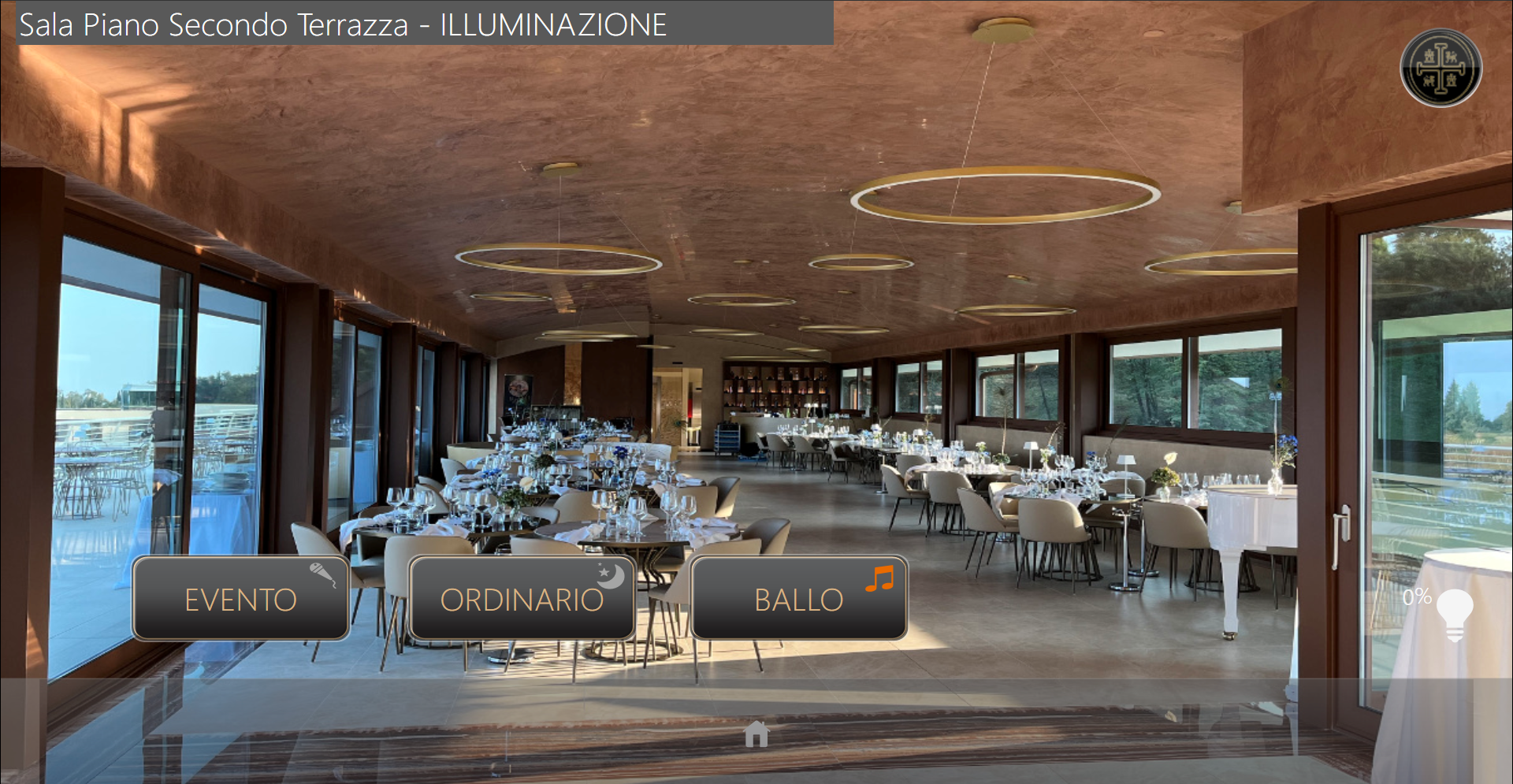

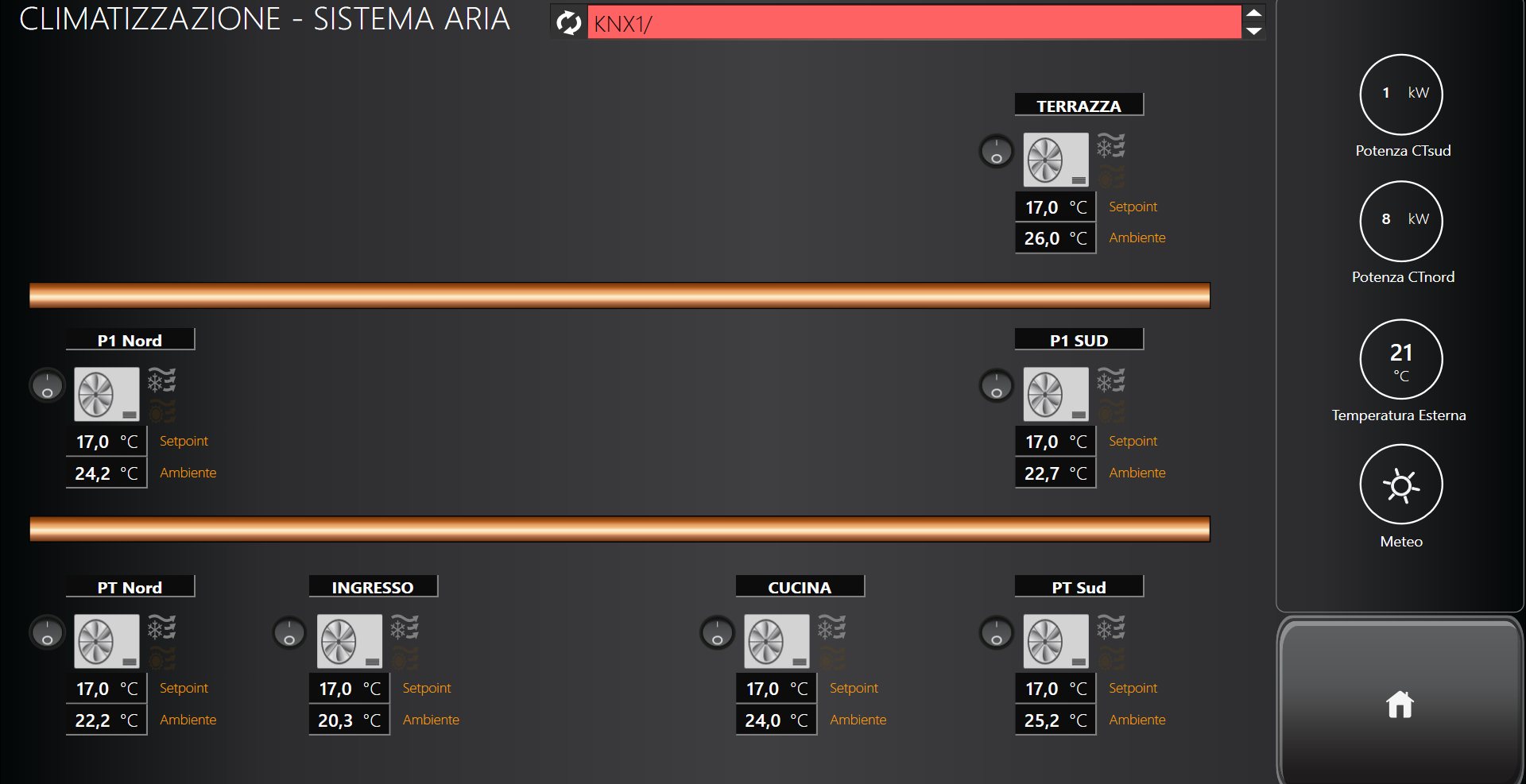

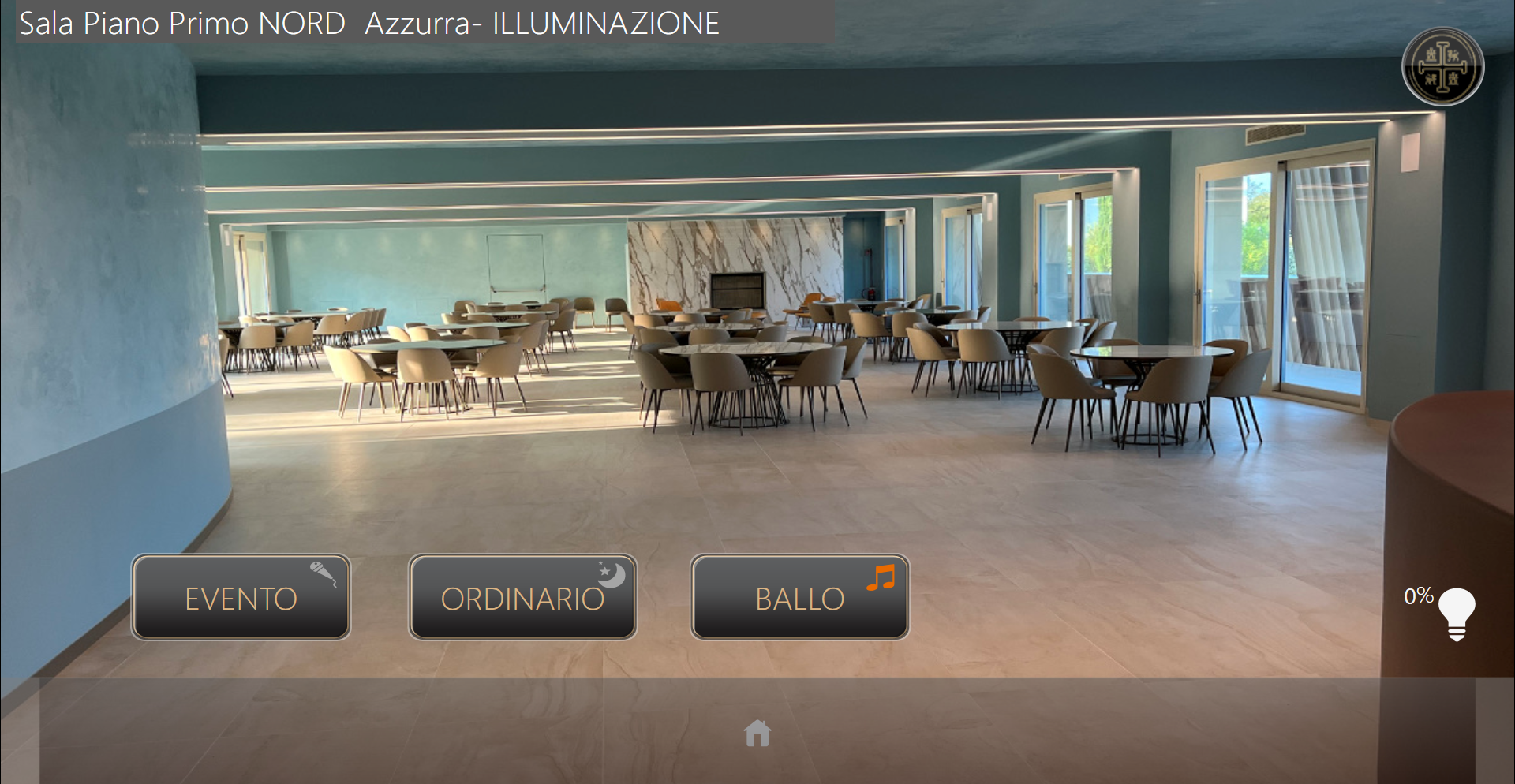

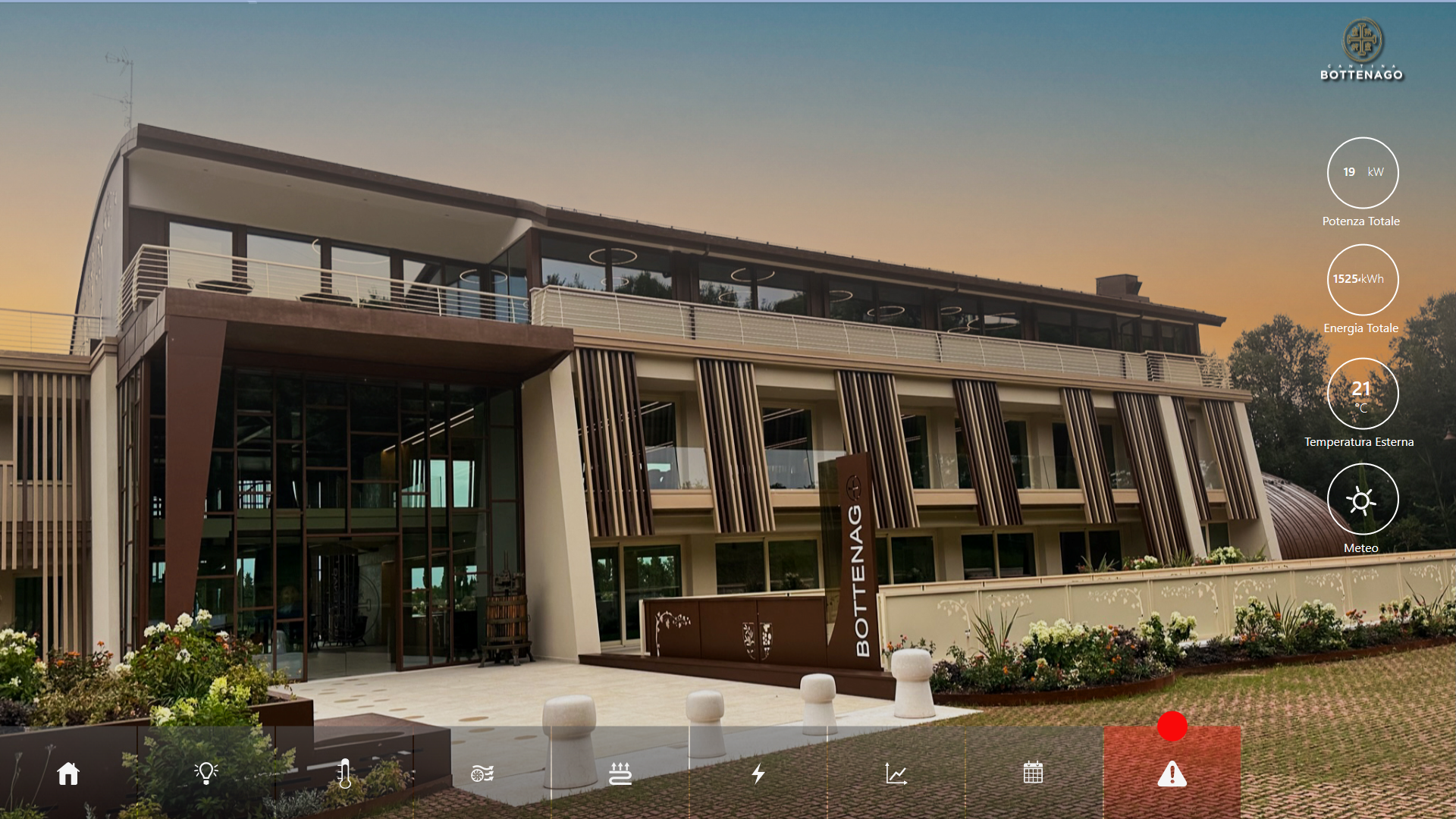

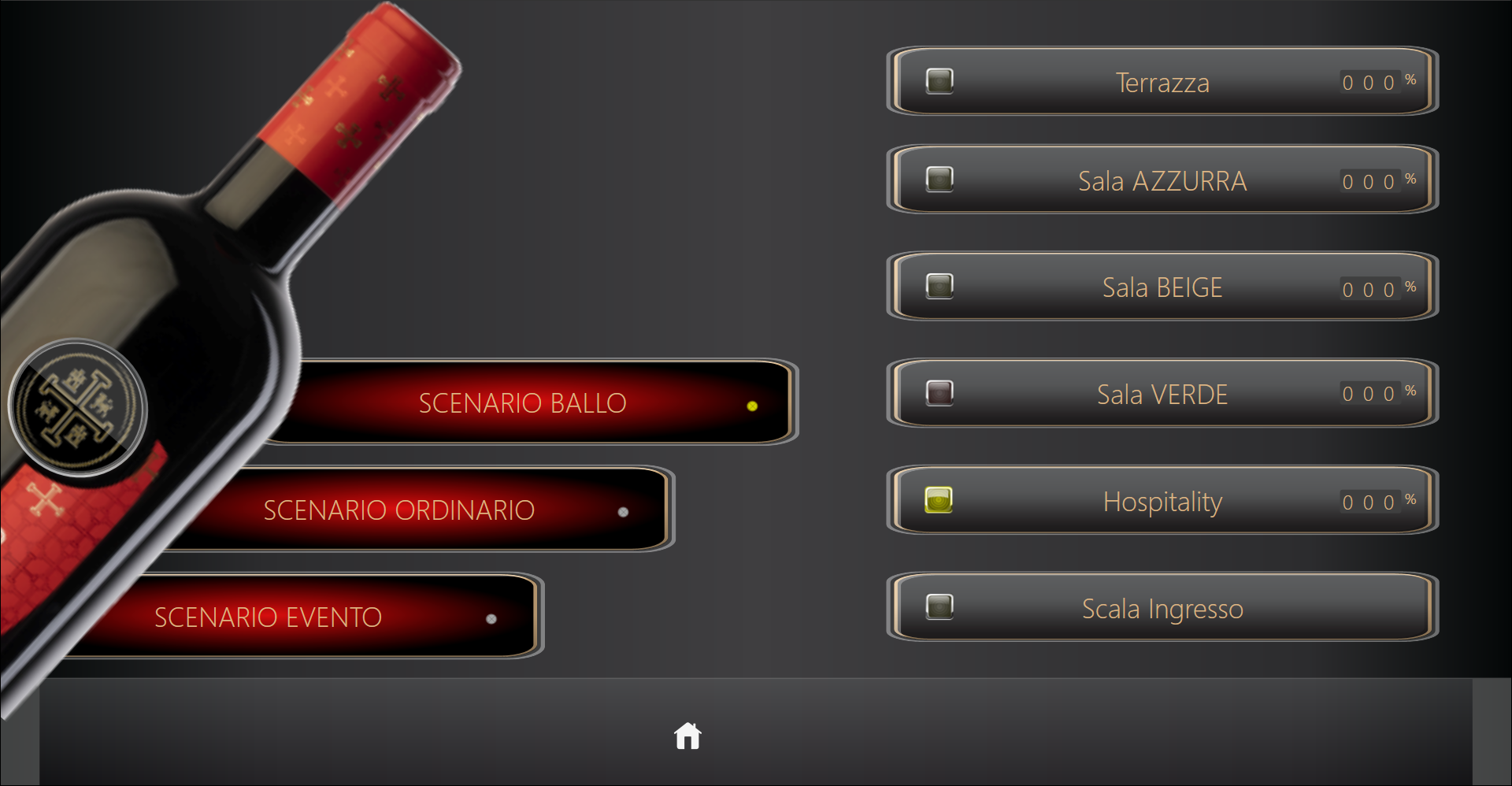

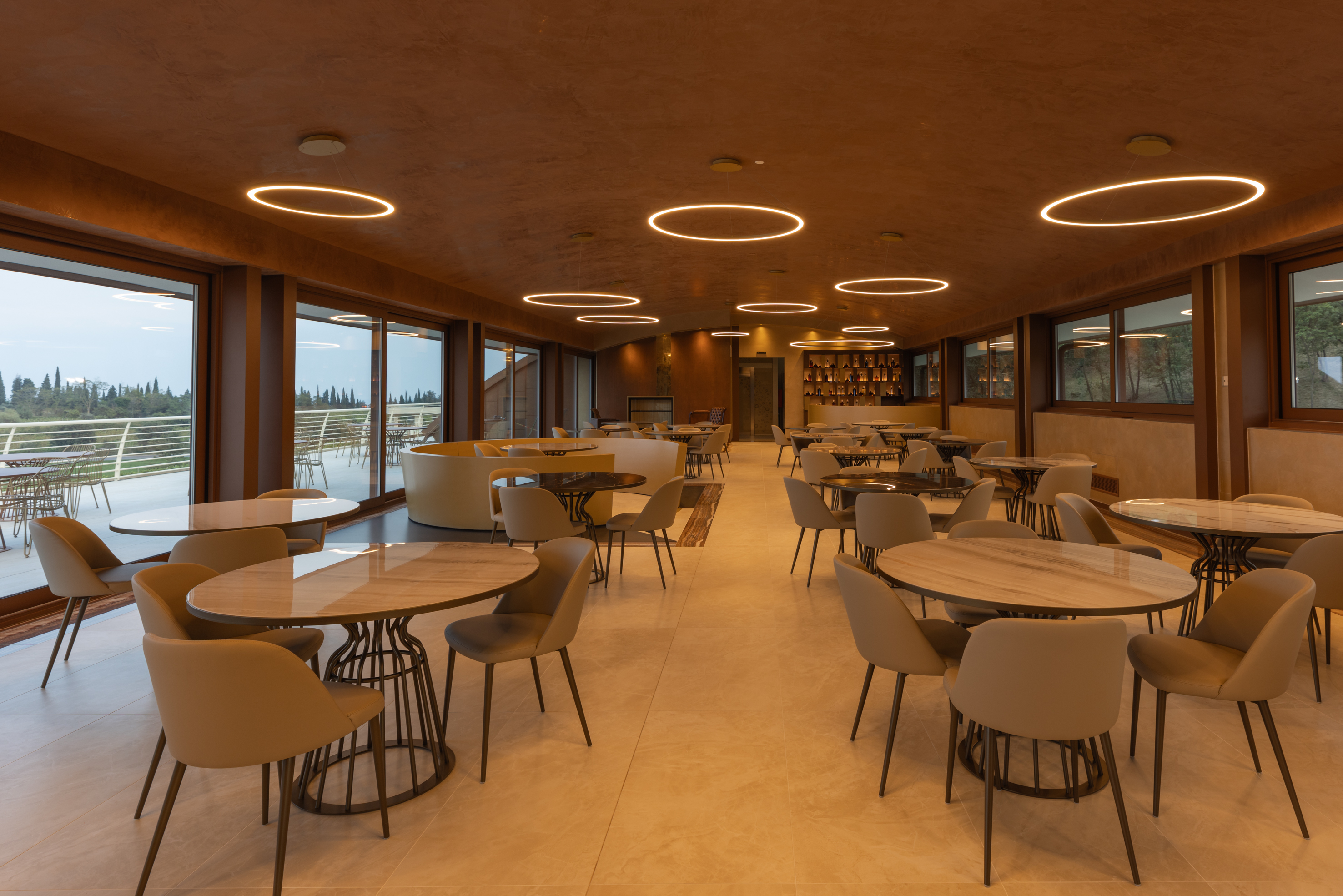

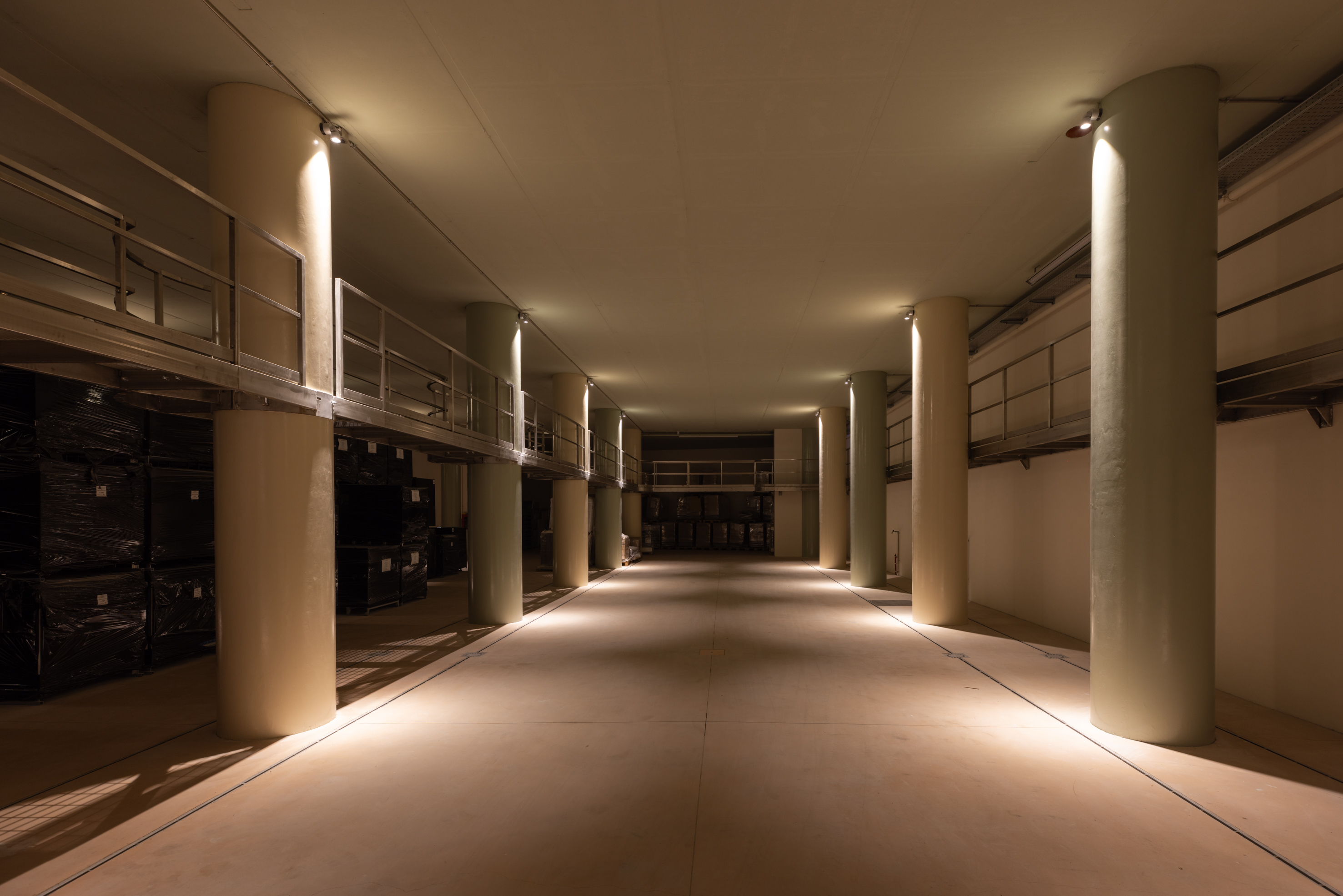

Un sistema KNX completo per una cantina vinicola che integra il controllo dell'illuminazione, della termoregolazione, delle centrali termiche, del monitoraggio energetico, ottimizzando l'ambiente sia nelle aree di produzione del vino che nel ristorante. Grazie a una gestione centralizzata, offre comfort ottimale, efficienza energetica e sicurezza, garantendo un'esperienza superiore sia per gli ospiti che per il personale. Particolare cura è stata posta nella gestione termica dell'edificio, con la contemporanea presenza di sistemi radianti e VRF e la possibilità di attivare climatizzazione e riscaldamento in parallelo su sale diverse. La tecnologia knx è stata utilizzata anche per il controllo delle valvole miscelatrici nelle centrali termiche, operando in funzione della curva climatica esterna e della presenza di persone negli ambienti, per un'ottimale gestione energetica dell'edificio. L'utilizzo di piattaforma SCADA e touch screen completano il complesso sistema di controllo.
Contact Information
| Company Name | Viola Elettrotecnica Srl |
| Company Email | roberto.mari@violaelettrotecnica.it |
| Company Website | http://www.violaelettrotecnica.it |
| Contact Name | Roberto Mari |
| Contact Function | System Integrator |
