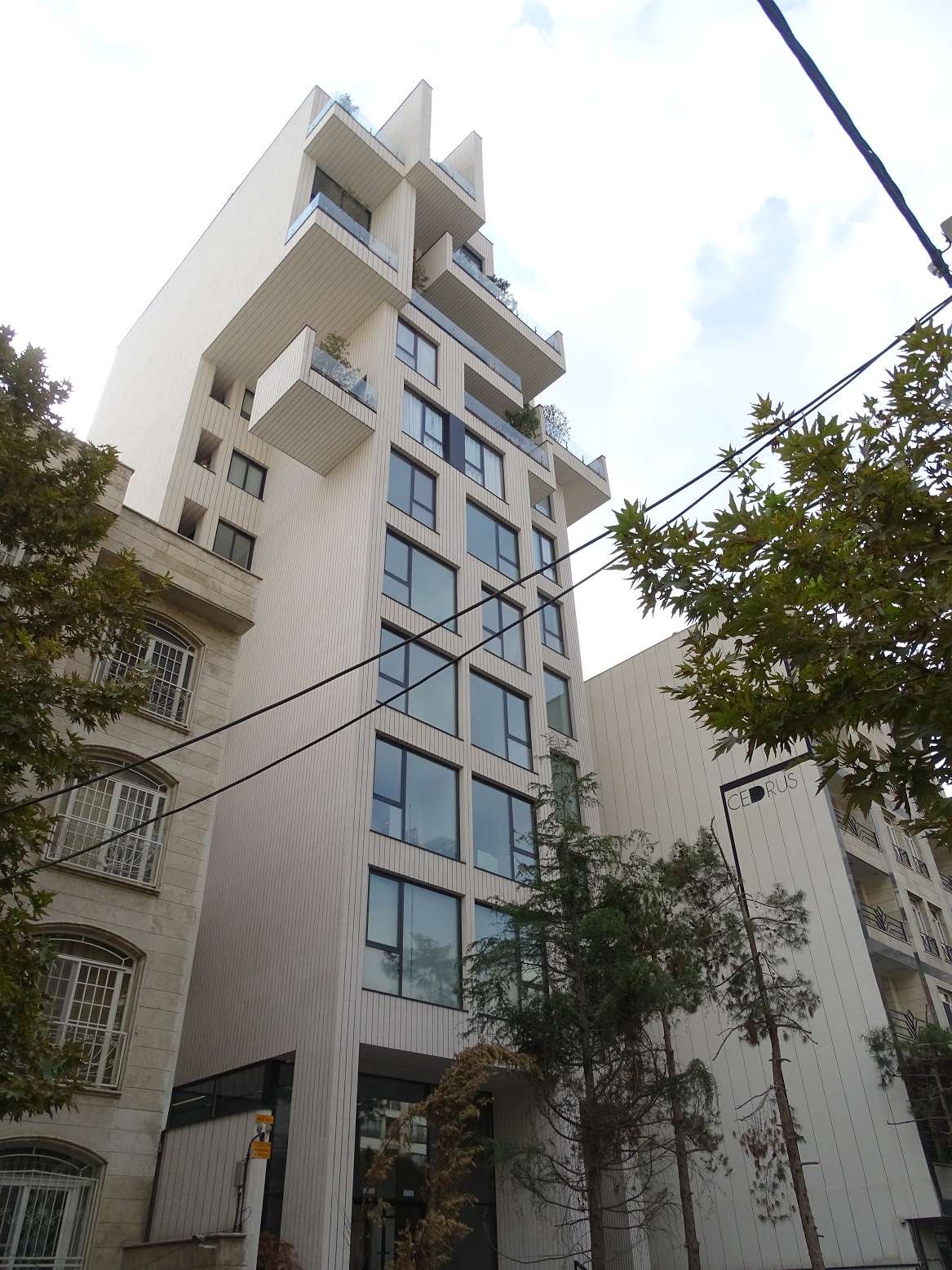

Cedrous Gardens Tower
Other in Tehran
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Other |
| Project Type | Residential |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Weather Dependent Control, Individual Room Control / Zone Control, Natural Ventilation

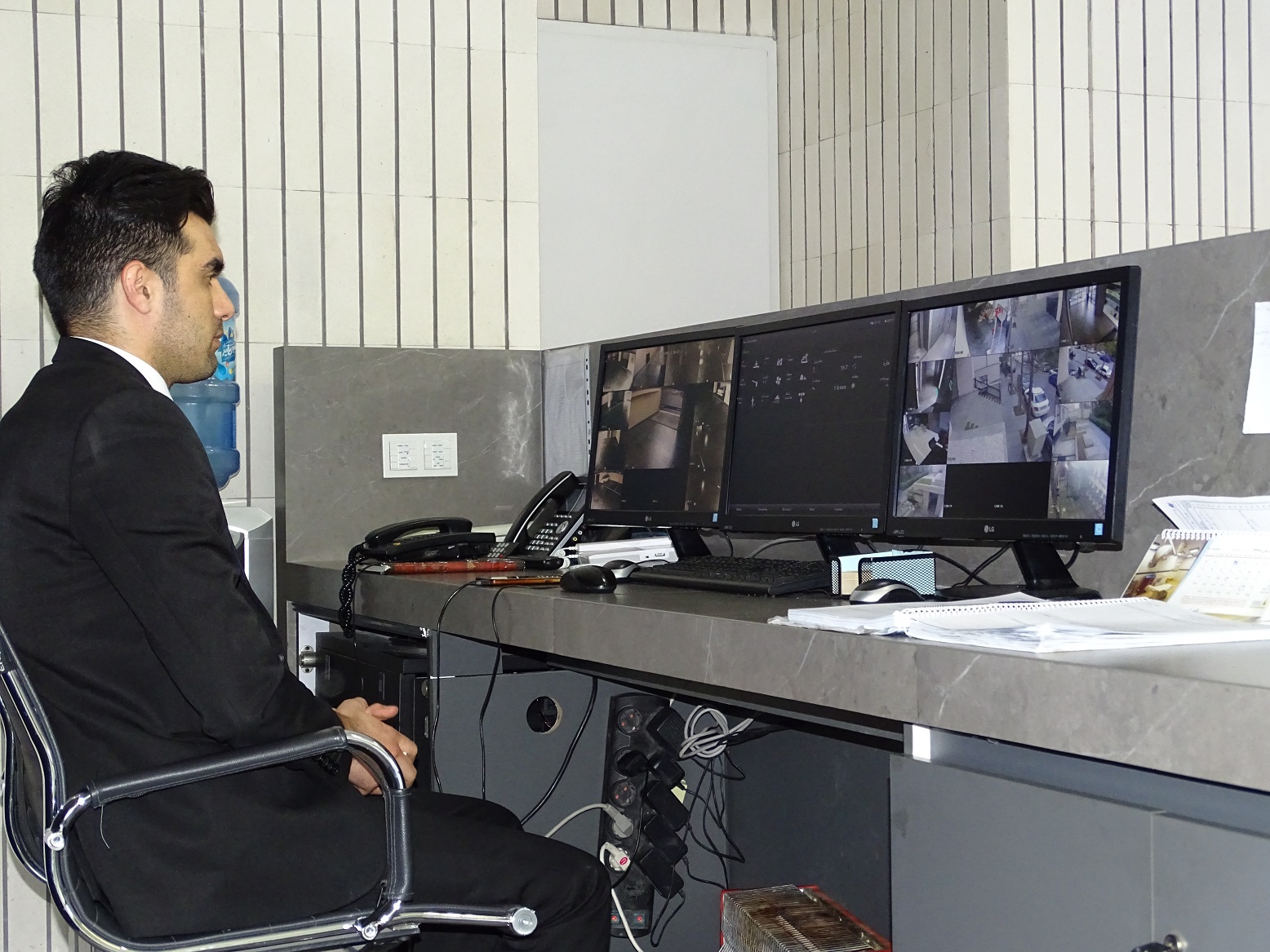

- Security and Safety - Access Control, Intrusion Detection / Alarm Systems, Emergency Lighting, Supervision (e.g. Cameras)

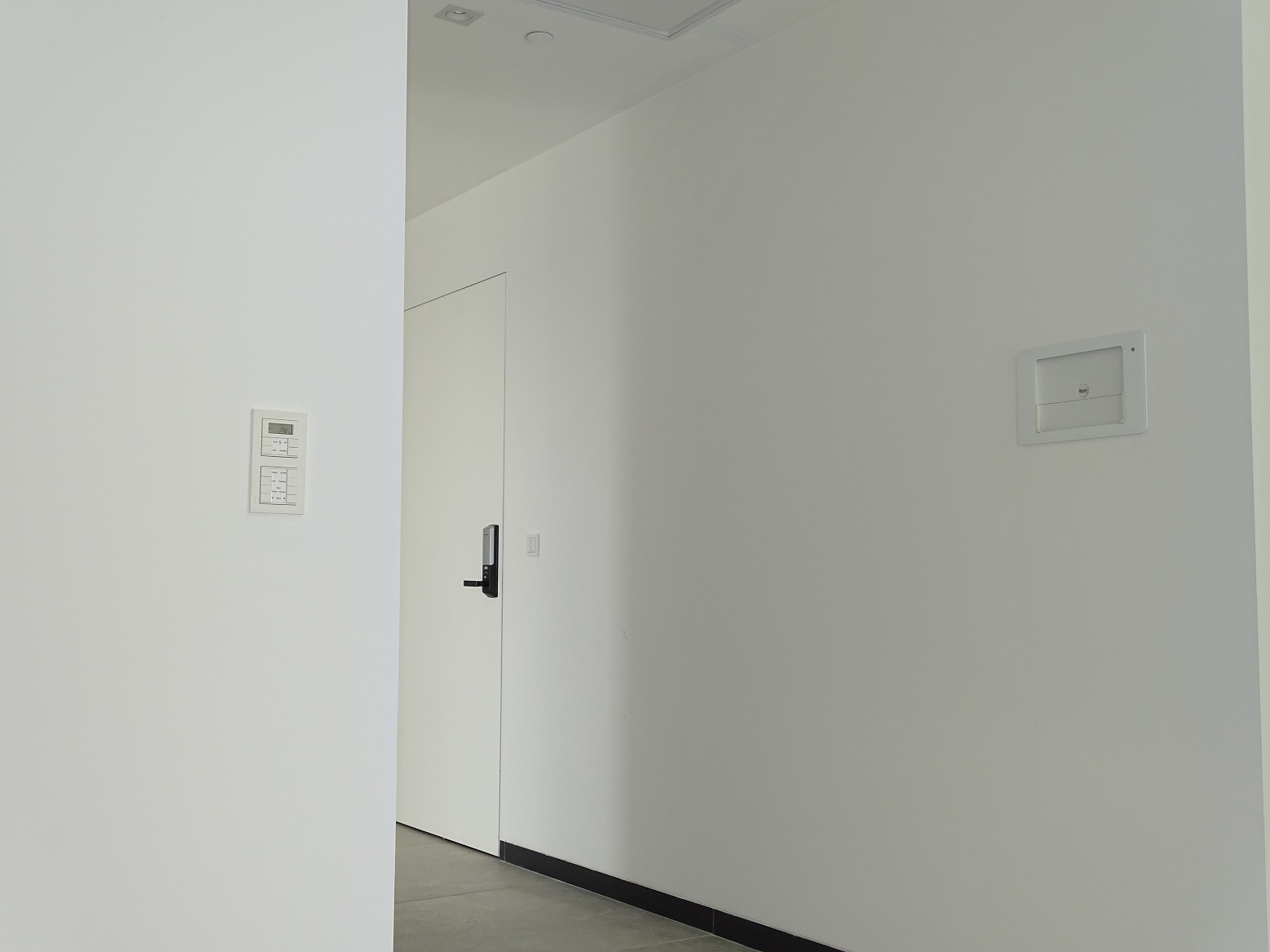

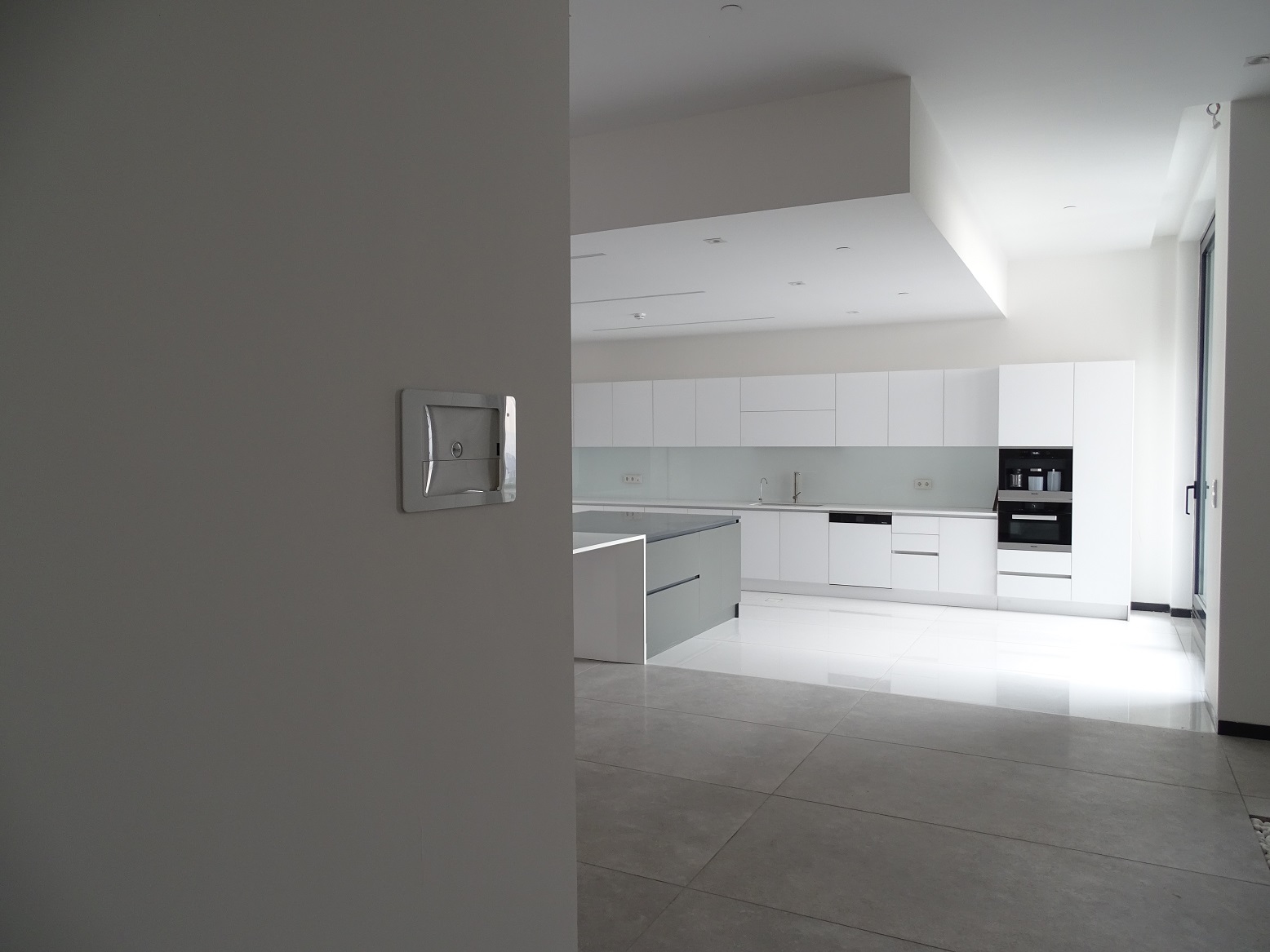

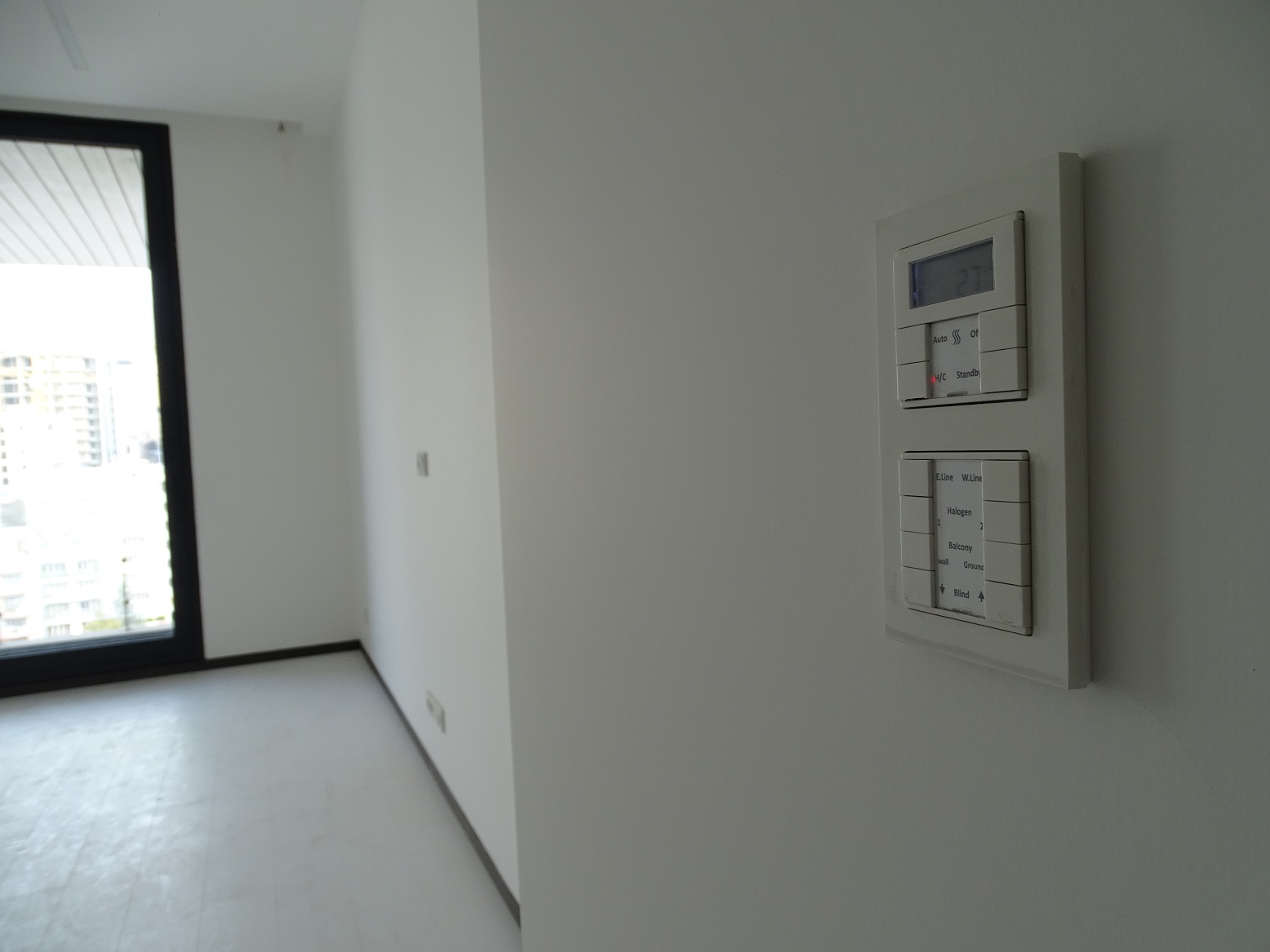

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Data Logging, Visualisation
- Other - Intercom
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Automatic Programs
Customers Description

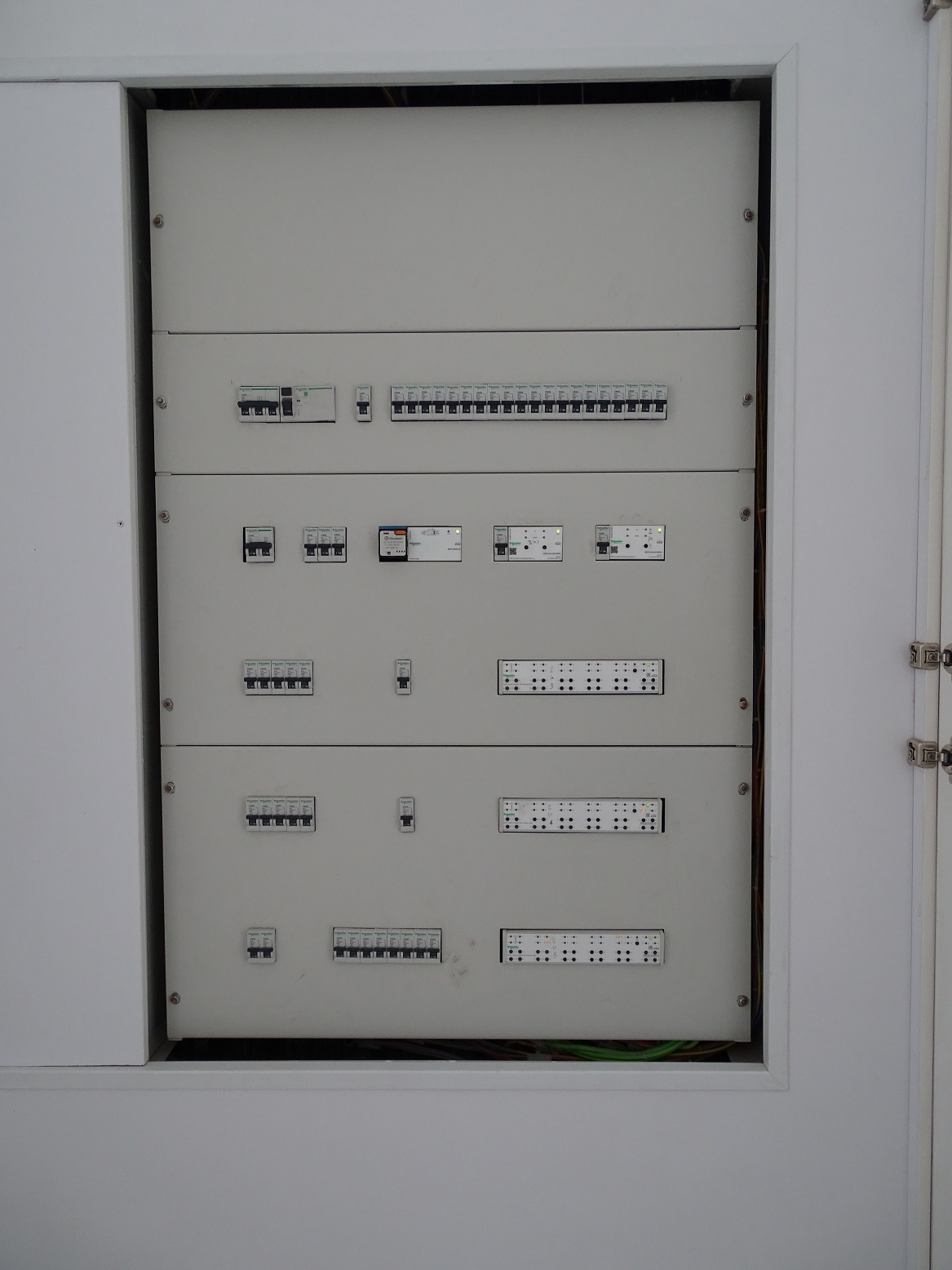

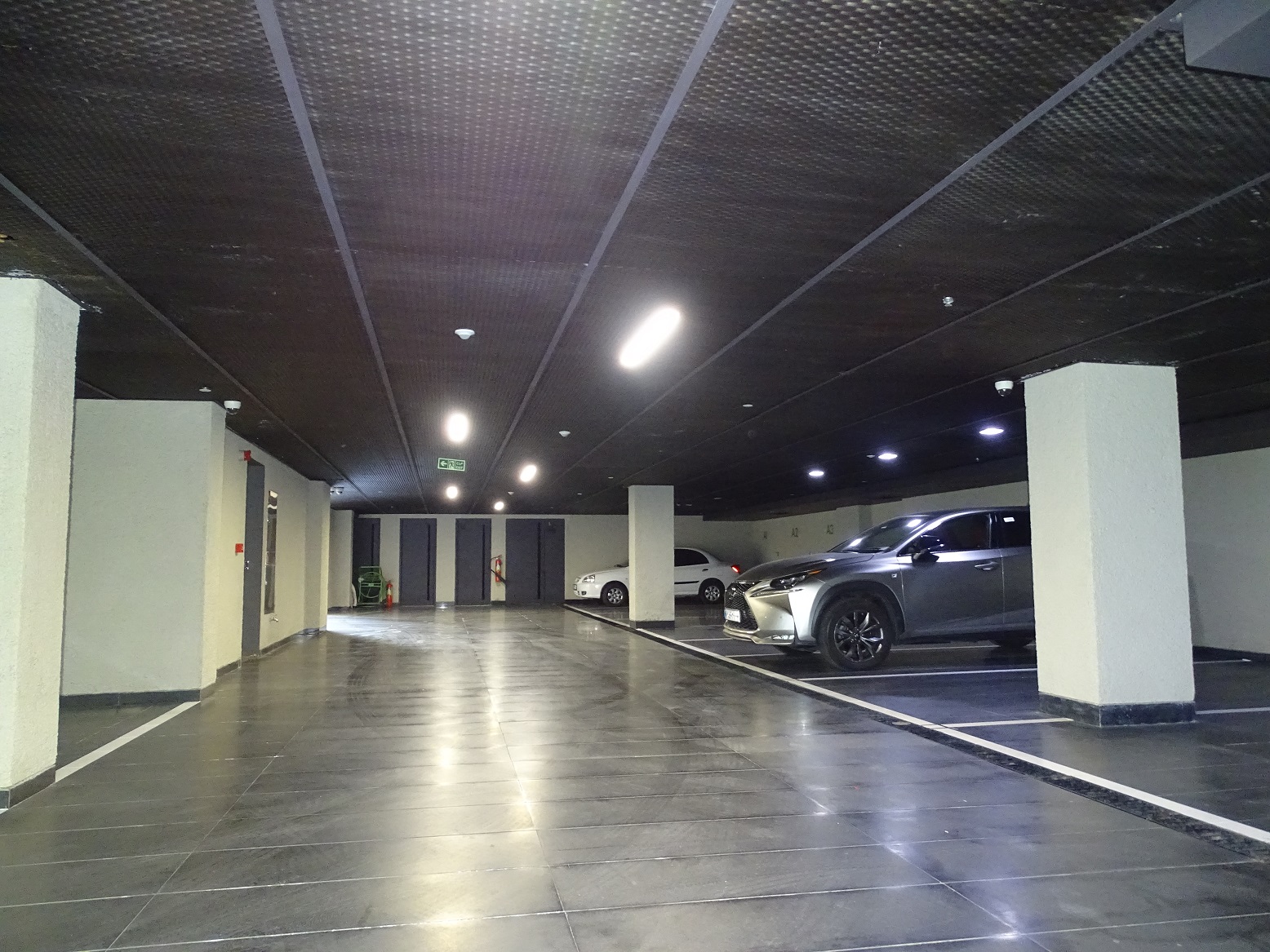

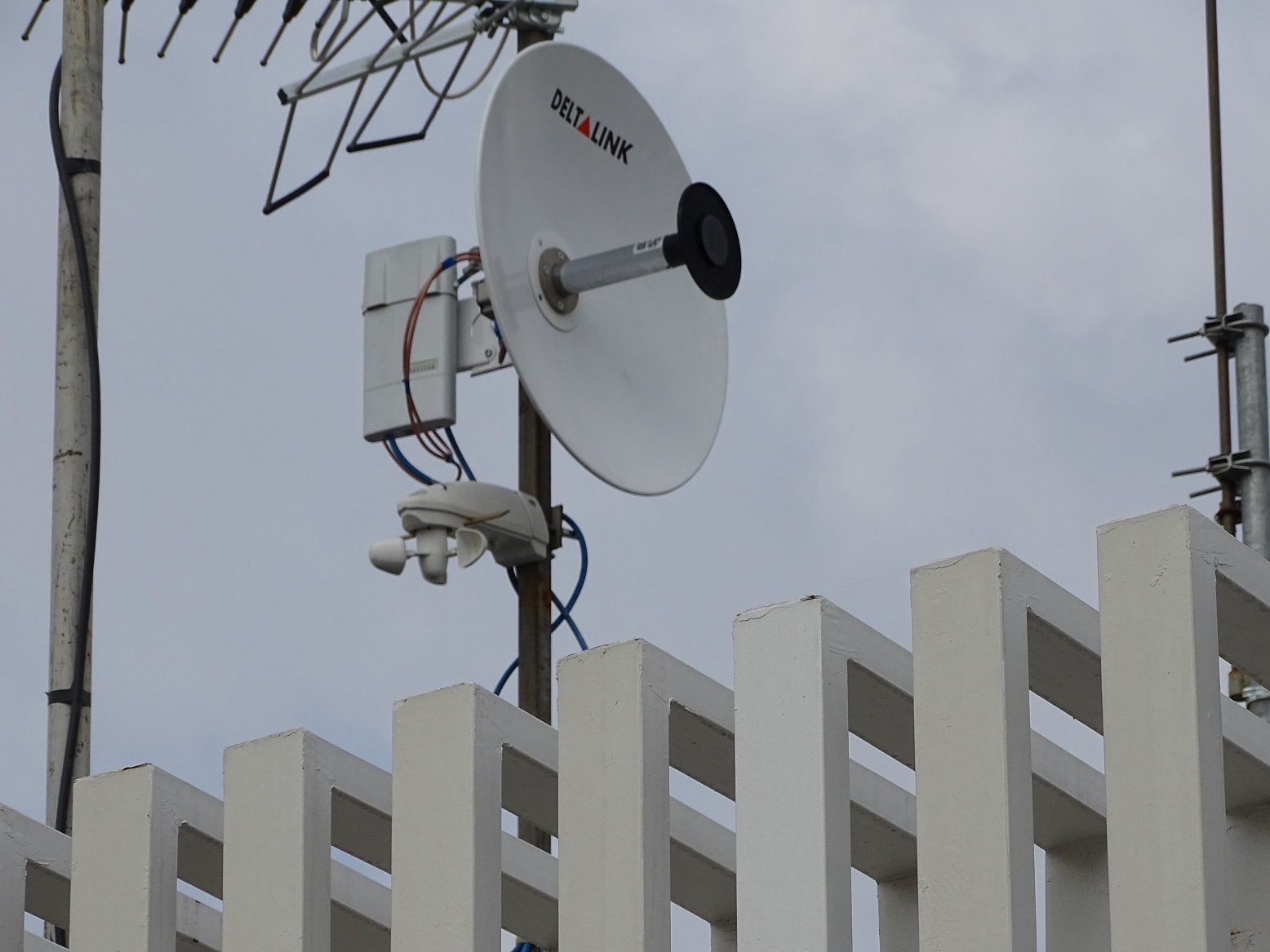

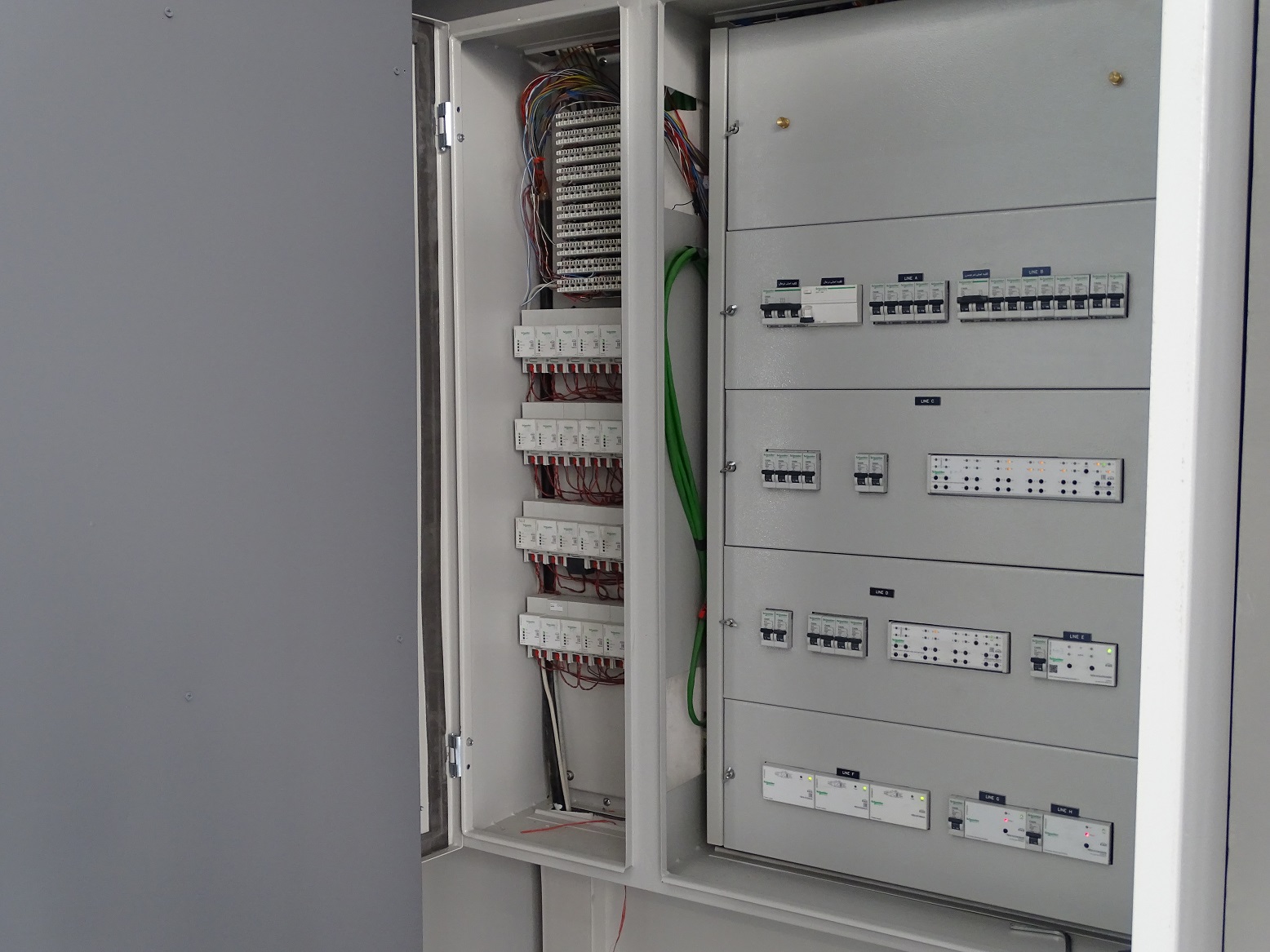

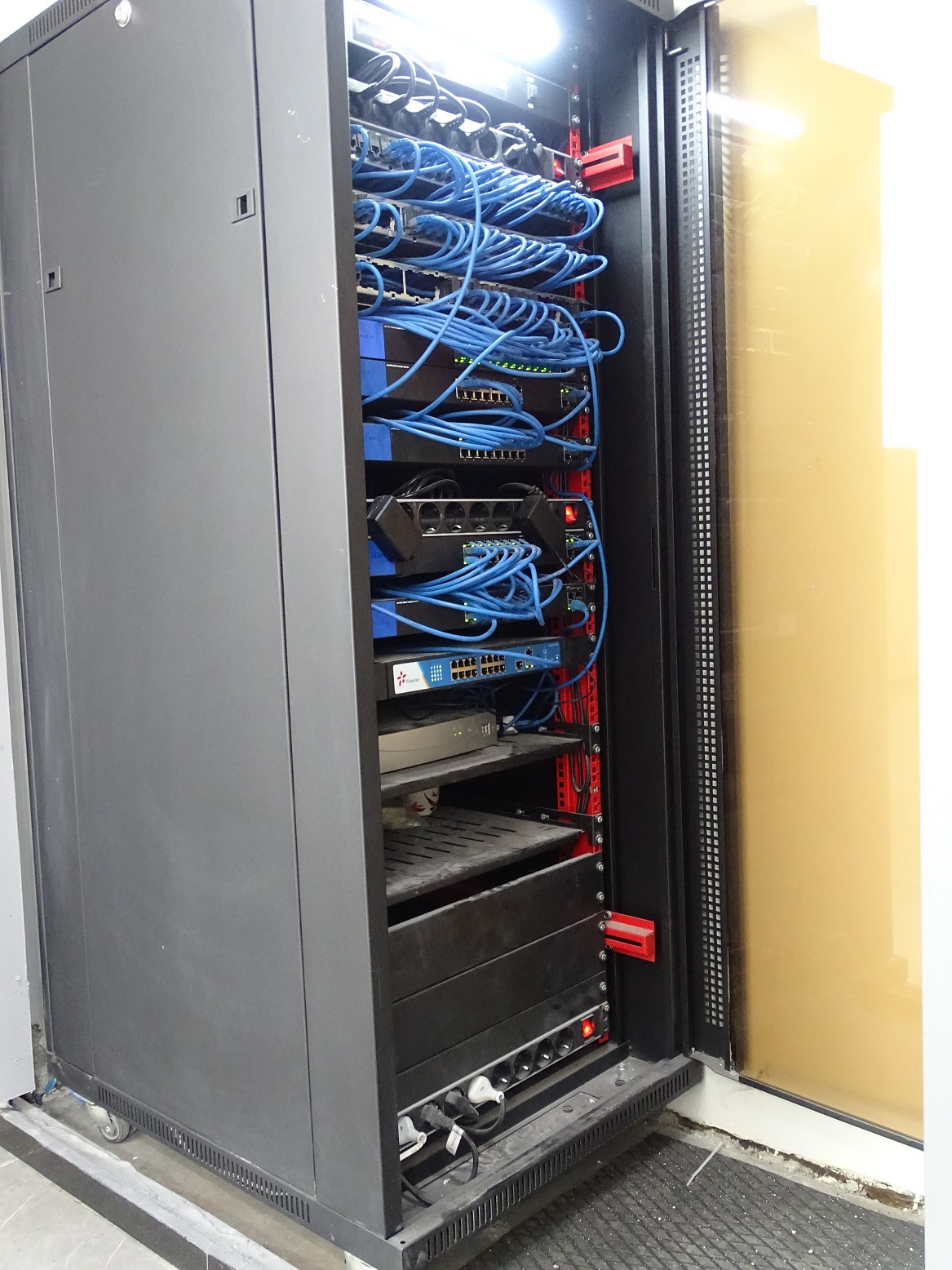

In this 18-unit project an attempt was made to employ a comprehensive and all-around smart system by selecting the correct and most practical smart KNX devices to minimize the expenses. Thus; in an integrated topology, using line couplers, all residential units were interconnected. Also, by precision filtering applied on line couplers the traffic on the bus is being controlled. In each residential unit the lighting system is switch and dimmer controlled while curtains and 2 speed fan-coils are controlled. Installation of a central server enables every residence of the complex to control and oversee the operation of the system via their tablets and mobiles. A weather forecast station is installed which besides informing the public of the local weather situations provide the necessary data for the lighting of the public areas of the complex during the dark hours. In spite of the wide variety of smart devices, residence can easily benefit from all the advantages offered in system.
Contact Information
| Company Name | Tanootas International (TICO) |
| Company Email | info@tico-smart.com |
| Company Website | http://tico-smart.com/ |
| Contact Name | M.Mahdi Dashti |
| Contact Function | System Integrator |
