Control integral de instalaciones de oficinas.

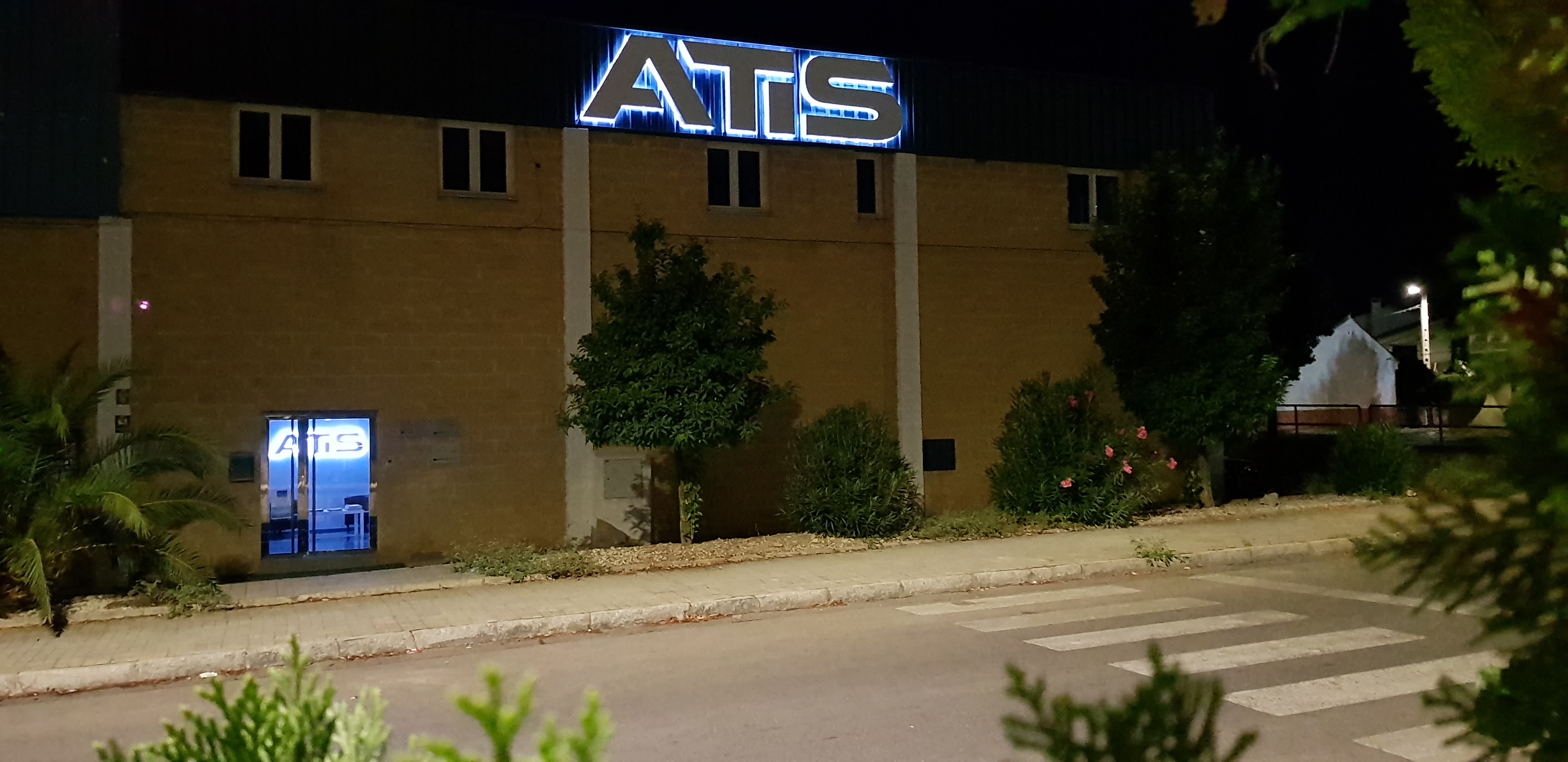

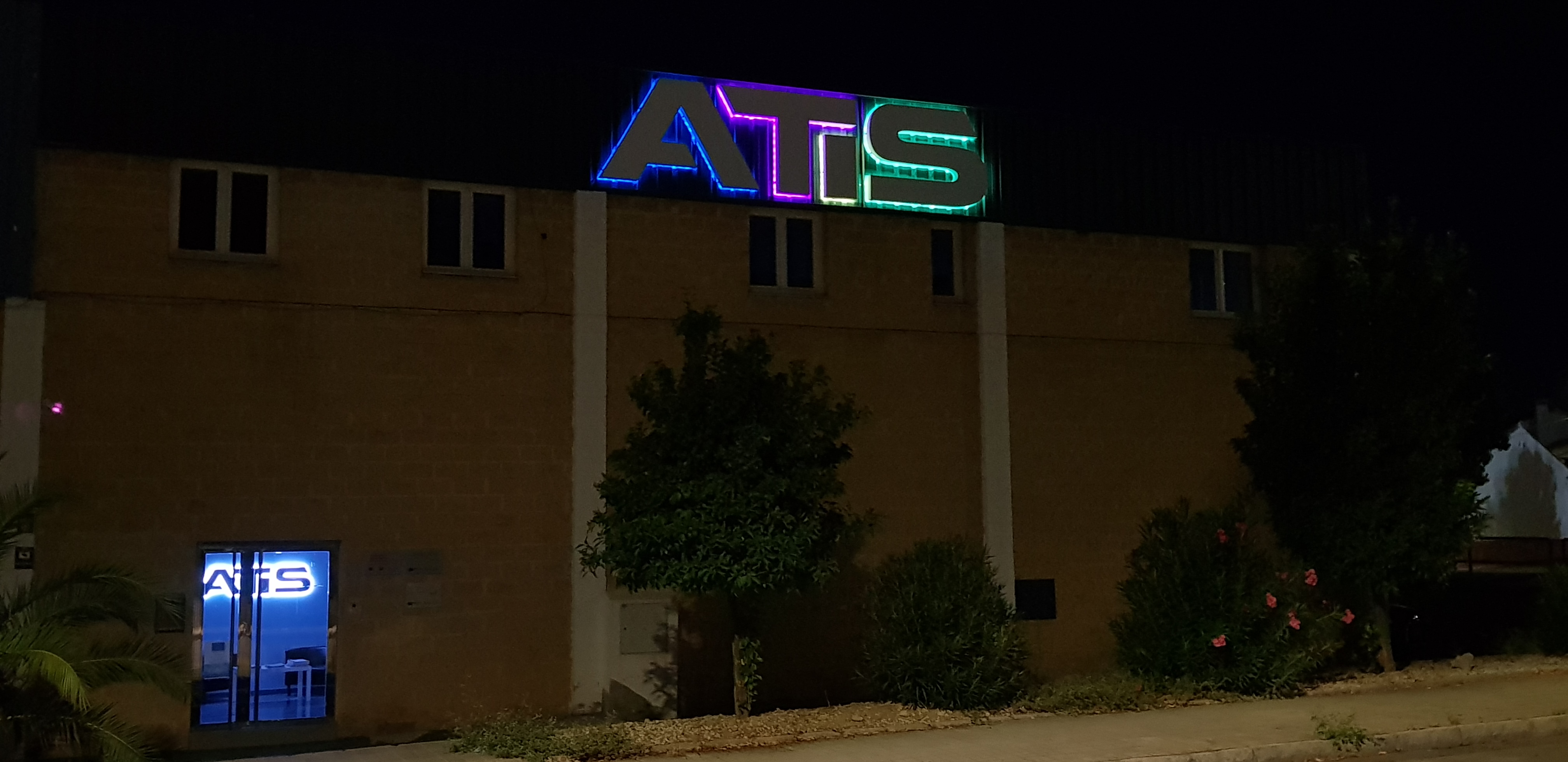

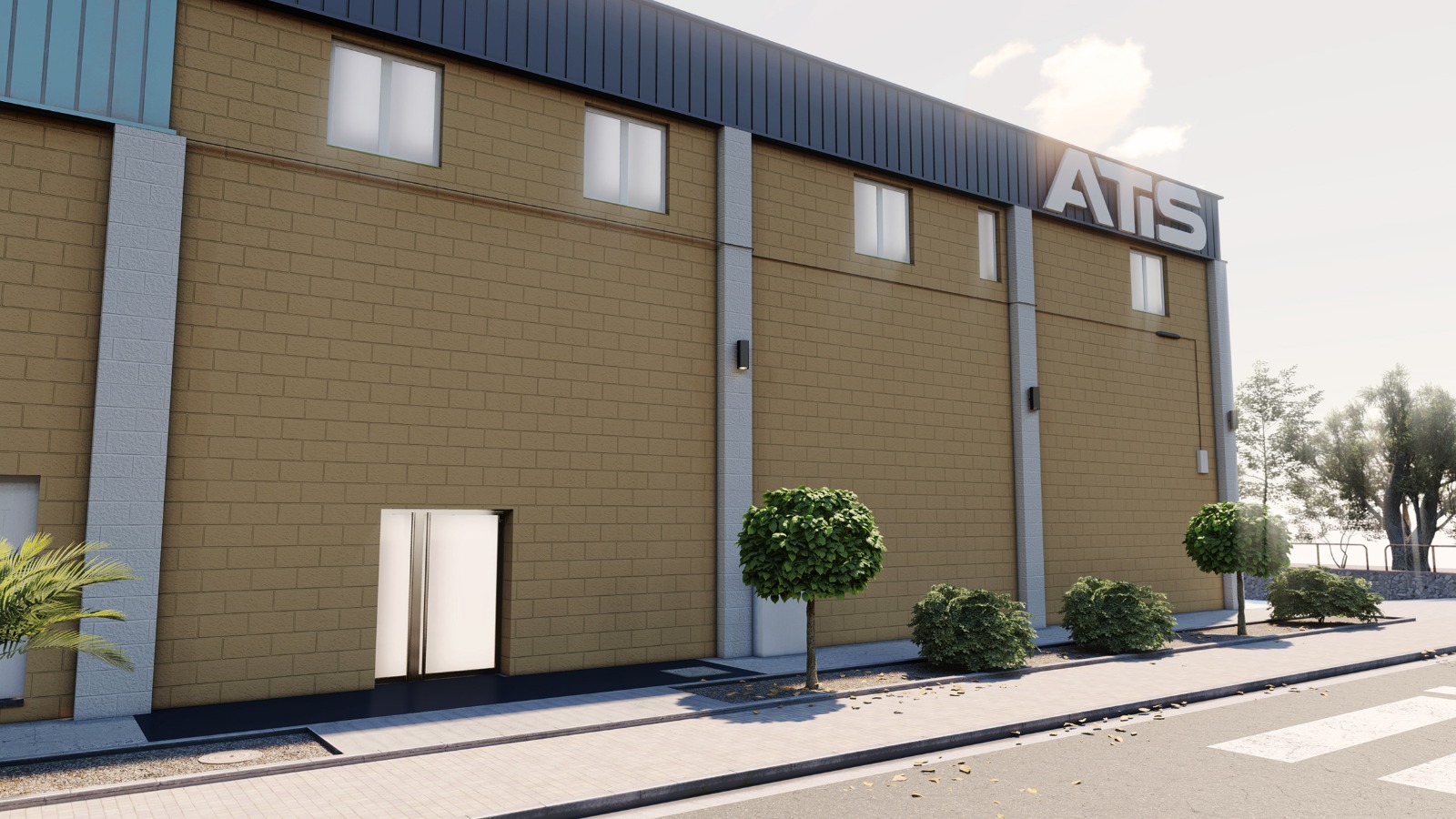

Office building in Granada
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2021 |
| Project Size | 501 – 1.000 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, CO2 / Humidity Measuring
- Security and Safety - Emergency Lighting, Presence Simulation, Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Peak Demand Monitoring, Use of Renewable Energies
- Other - Distributed Facilities
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control
Customers Description
Control e integración total de todos los sistemas de las oficinas:
- Control de presencia en todas las salas y zonas comunes.
- Control de encendidos y apagados por presencia.
- Control de ocupación de las salas para gestión de climatización.

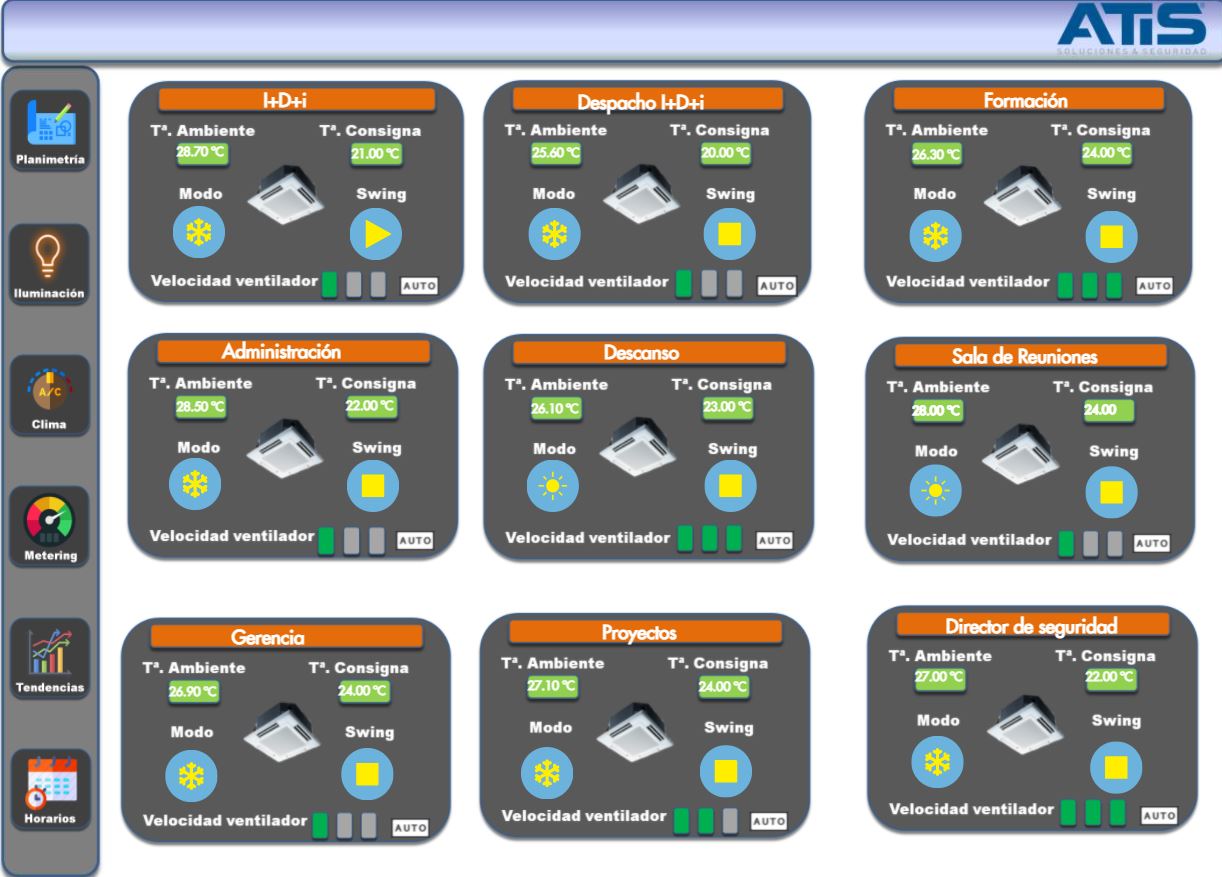

- Control individual por sala de climatización y temperaturas.
- Eliminación del consumo estacionario fuera de los horários de trabajo controlando y actuando sobre los enchufes de cada puesto individualizado.
- Paneles táctiles y capacitivos para la gestión individual de cada sala.
- Activación y control de acumuladores eléctricos.
- Futuro control de producción solar mediante modbus TCP.

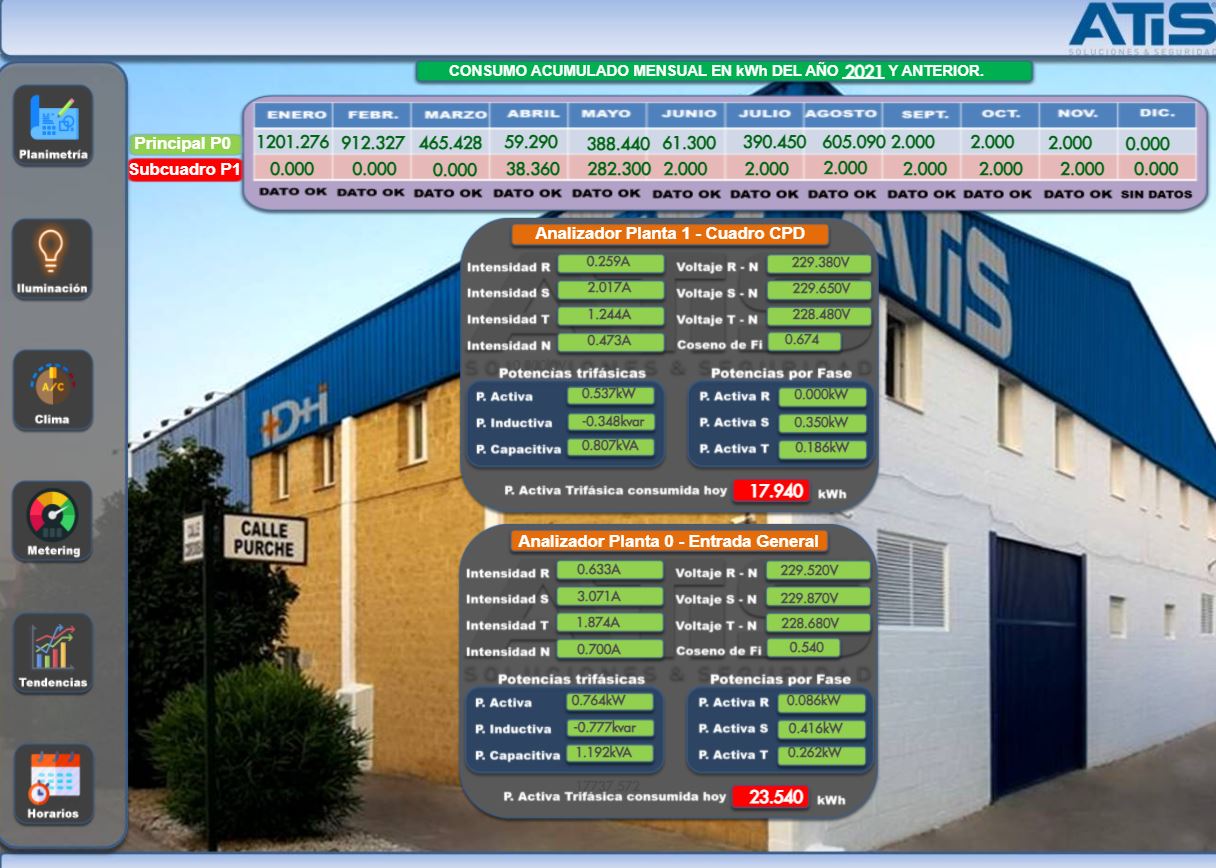

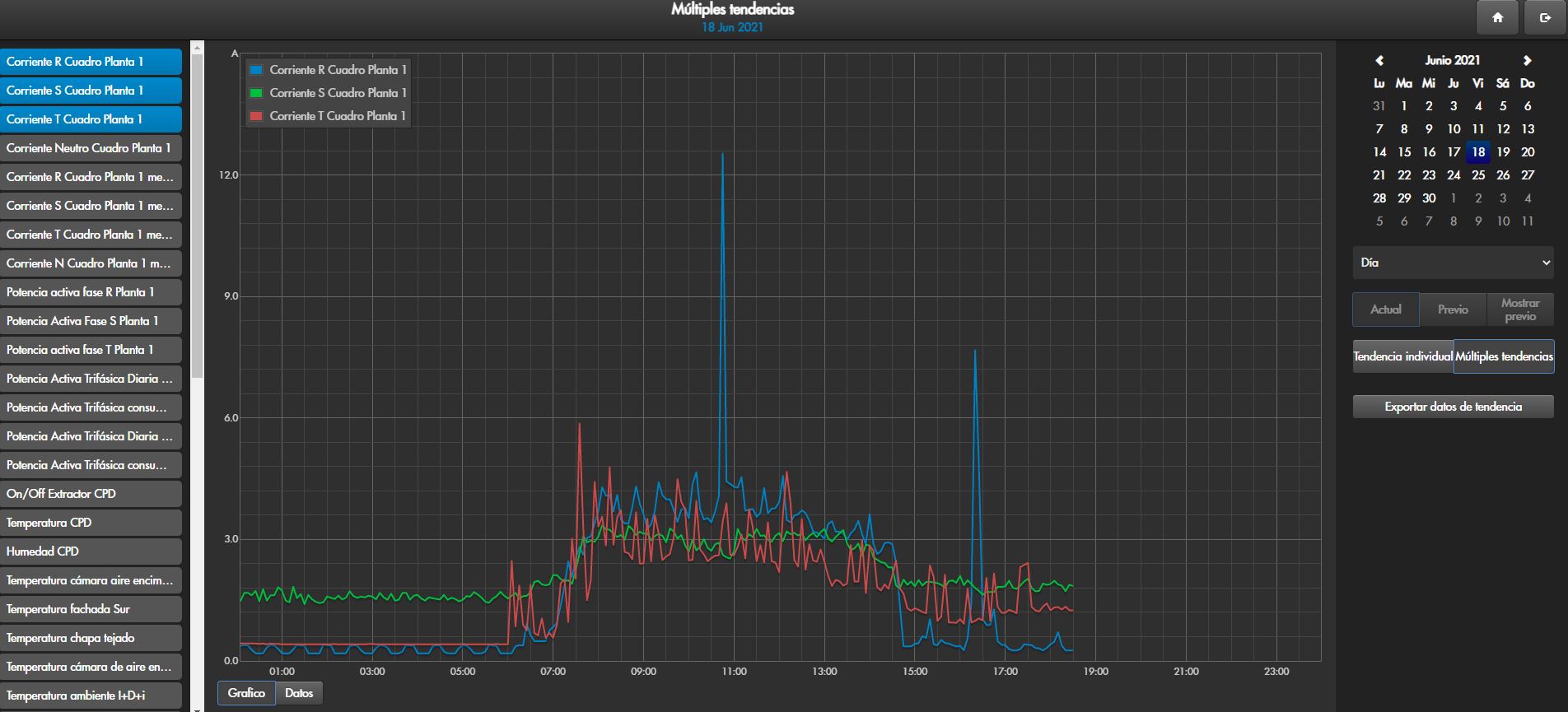

- Monitorización y control de analizadores de red general y por planta modbus rtu.

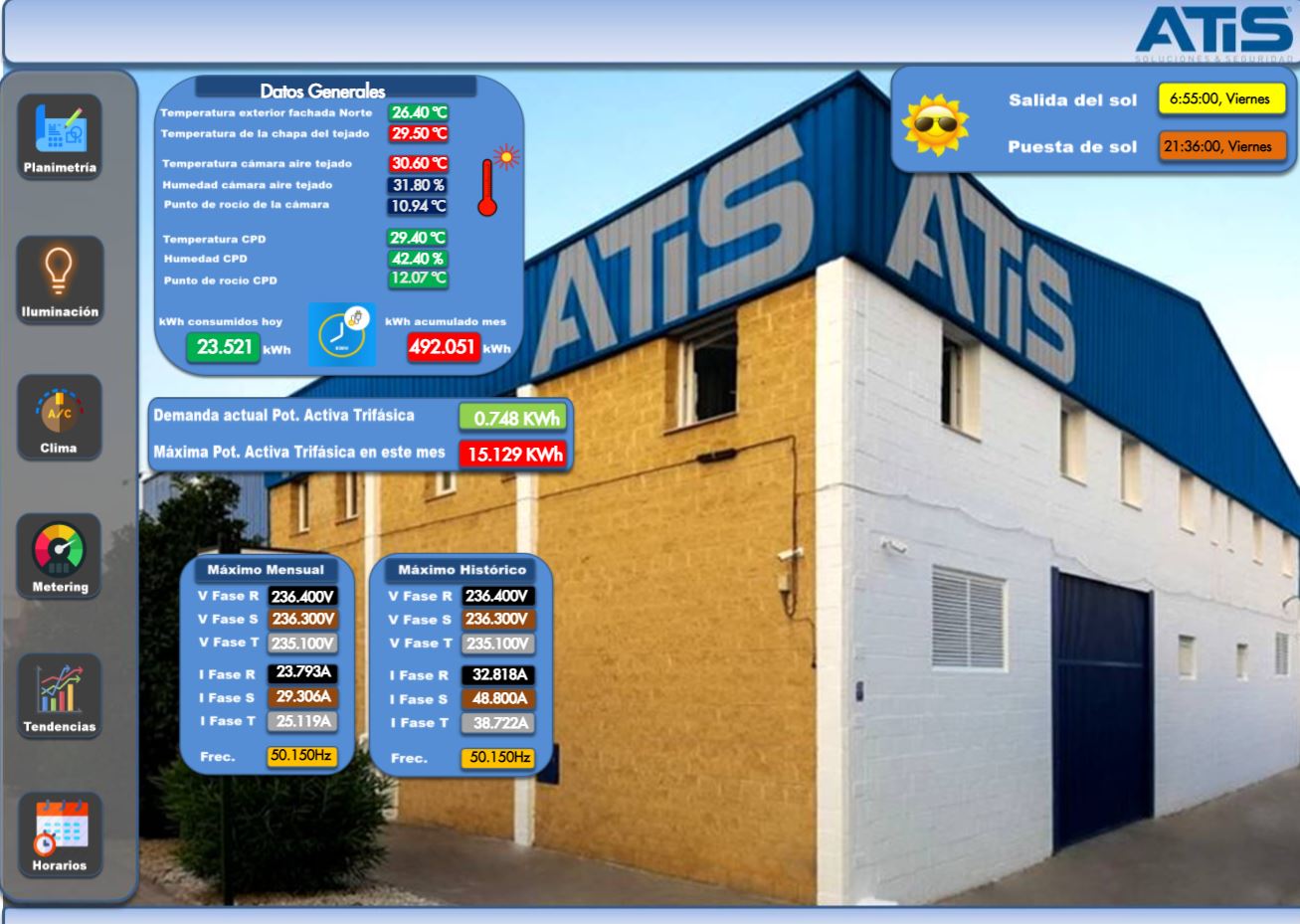

- Visualización integral de toda la instalación y control mediante web server conectado a internet.
- Control de temperaturas y humedad de todas las salas.
Contact Information
| Company Name | ATISoluciones |
| Company Email | rserrano@atisoluciones.com |
| Company Website | https://www.atisoluciones.com |
| Contact Name | Raúl Serrano Espejo |
| Contact Function | System Integrator |
