Fastron Manufacturing Hall, Tolna
Manufacturer in Tolna
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Manufacturer |
| Project Type | Other |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 6 – 10 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, Boiler and burner Control
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts)
- Operation and Visualisation - PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Data Logging, Visualisation, Use of Renewable Energies
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description

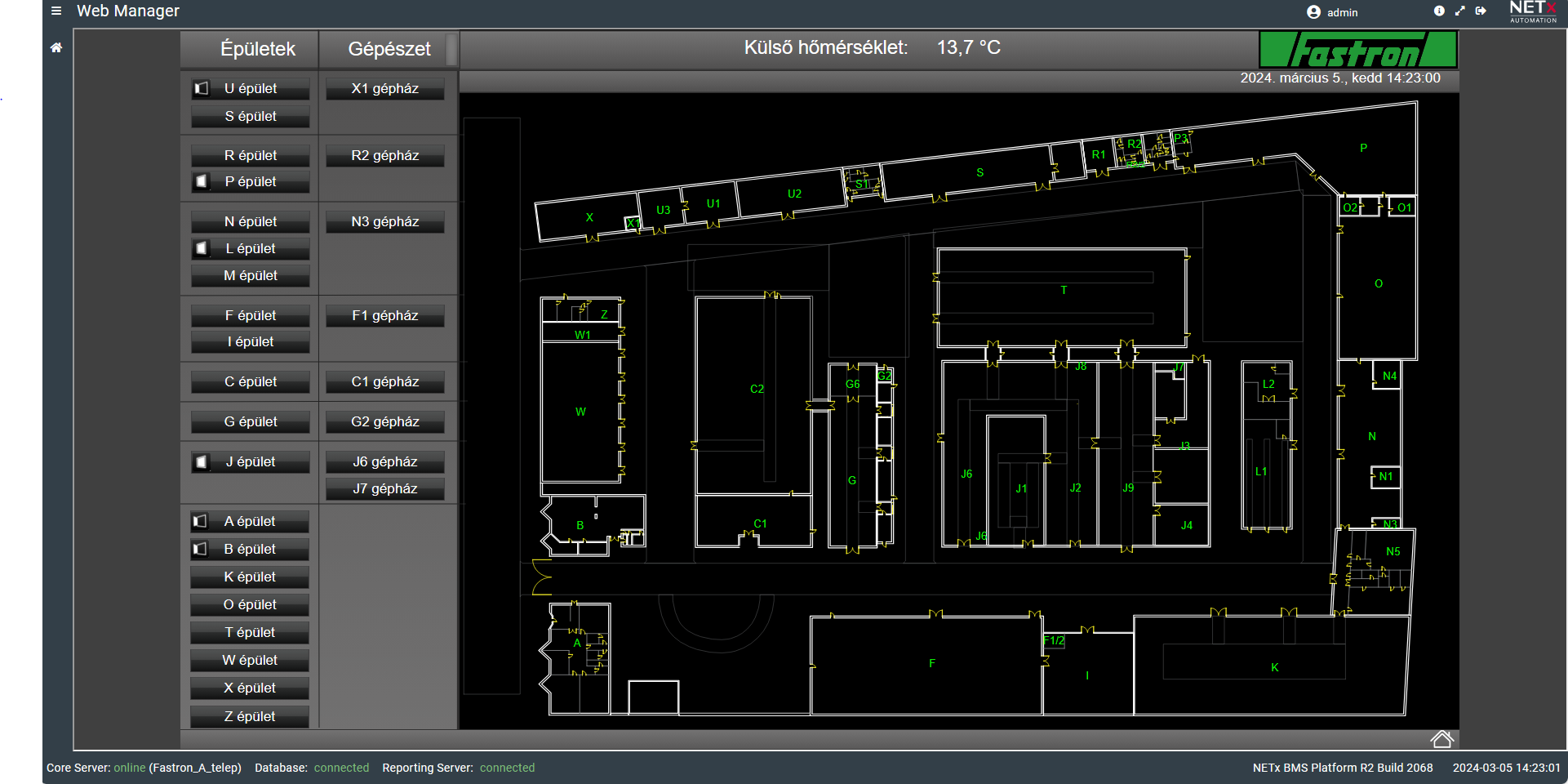

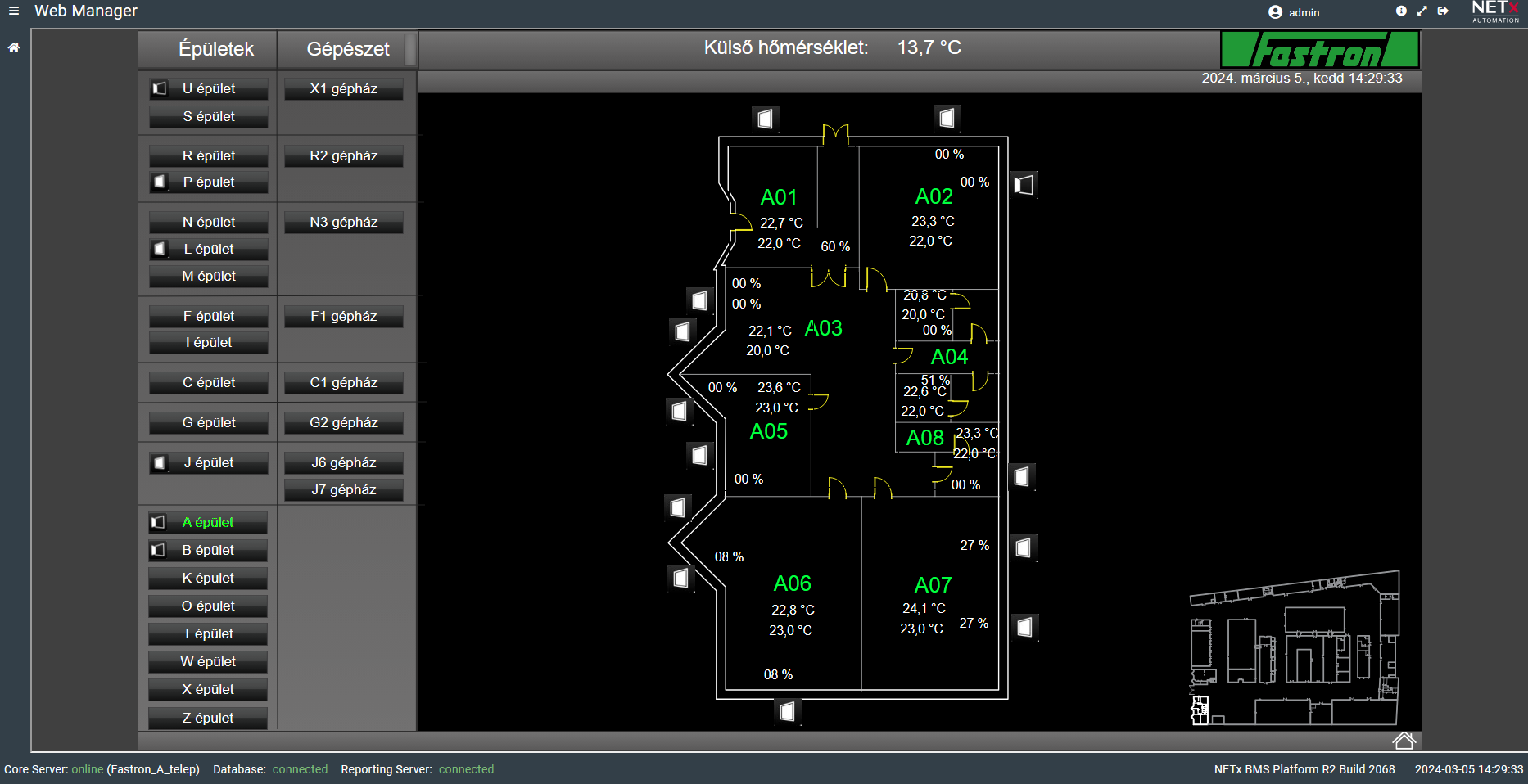

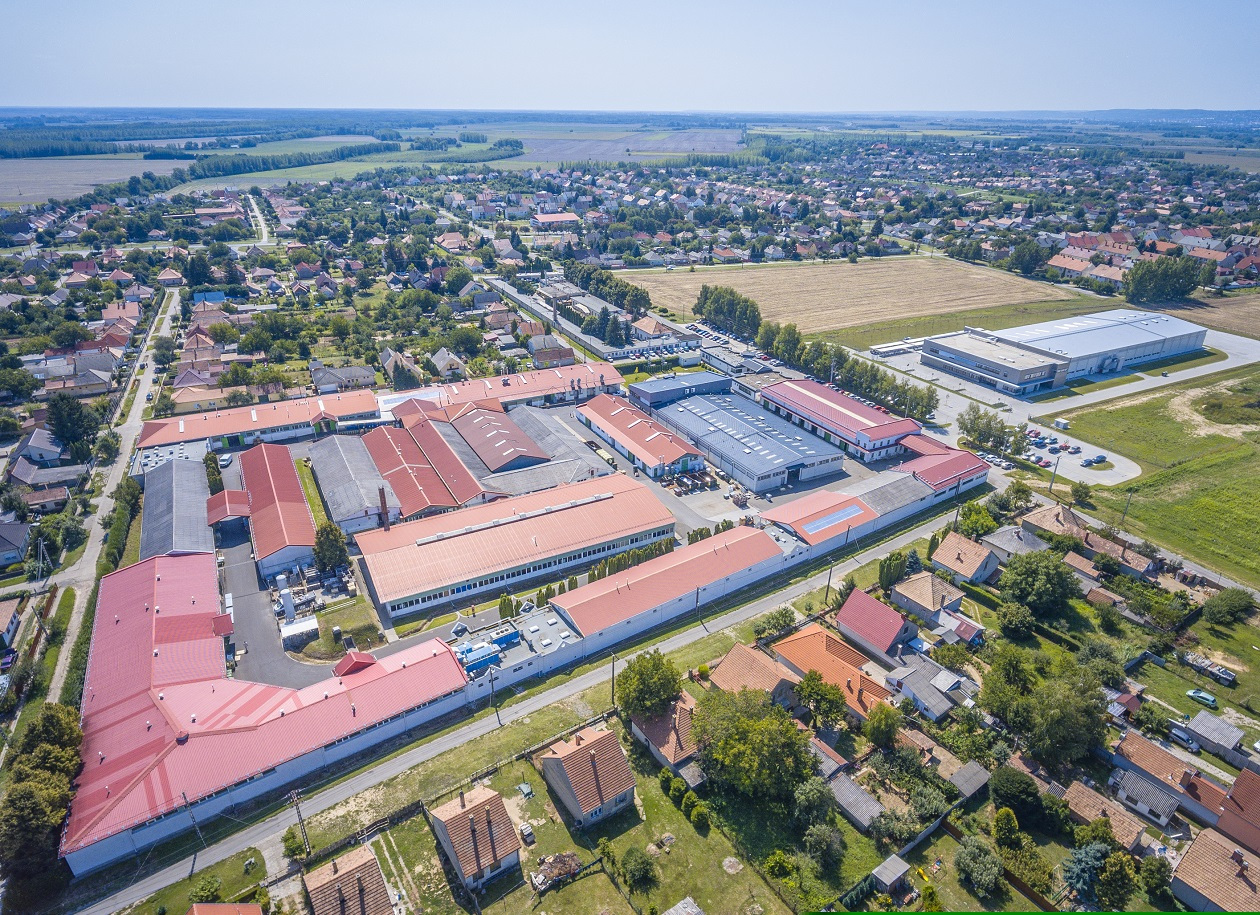

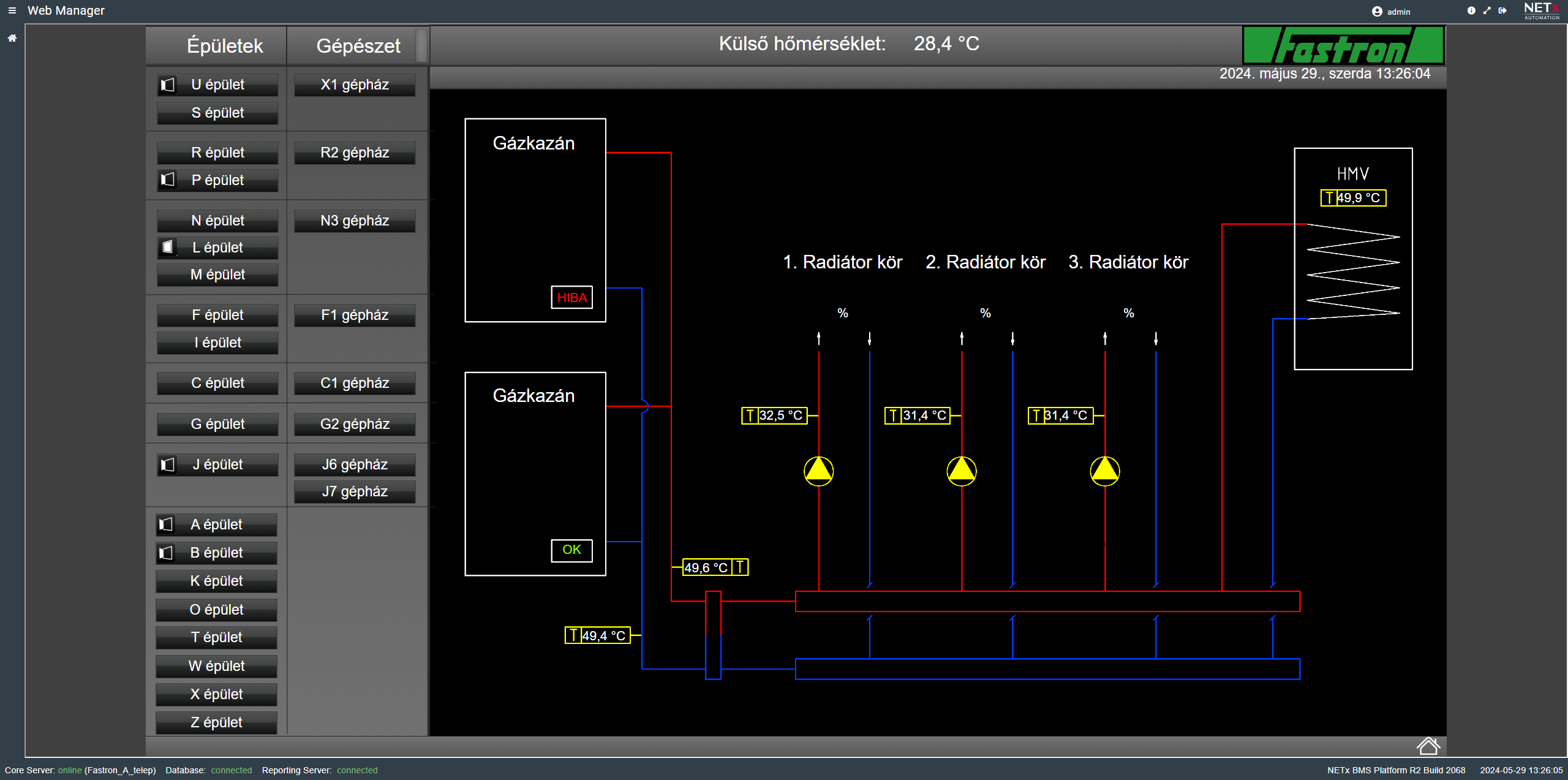

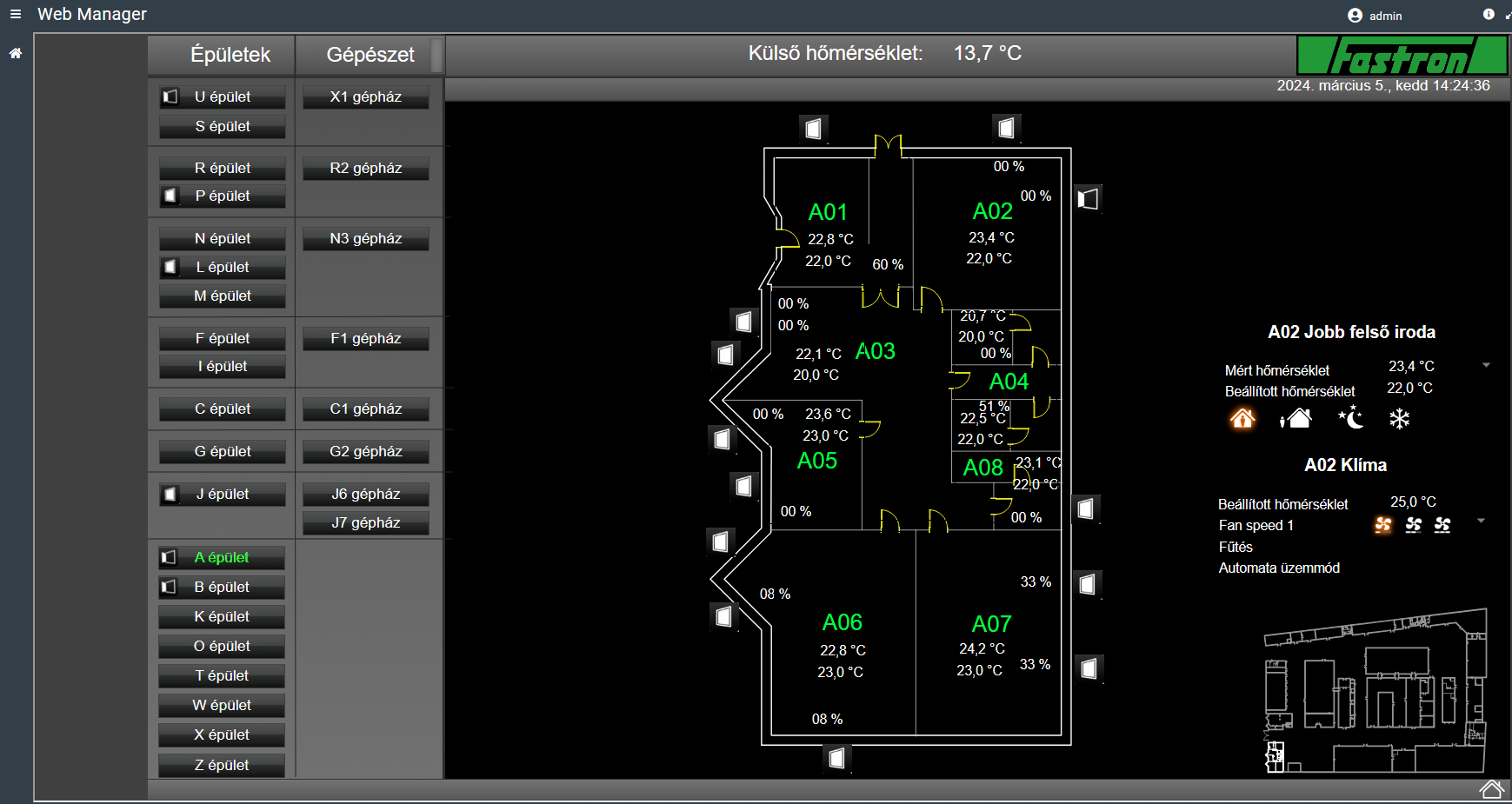

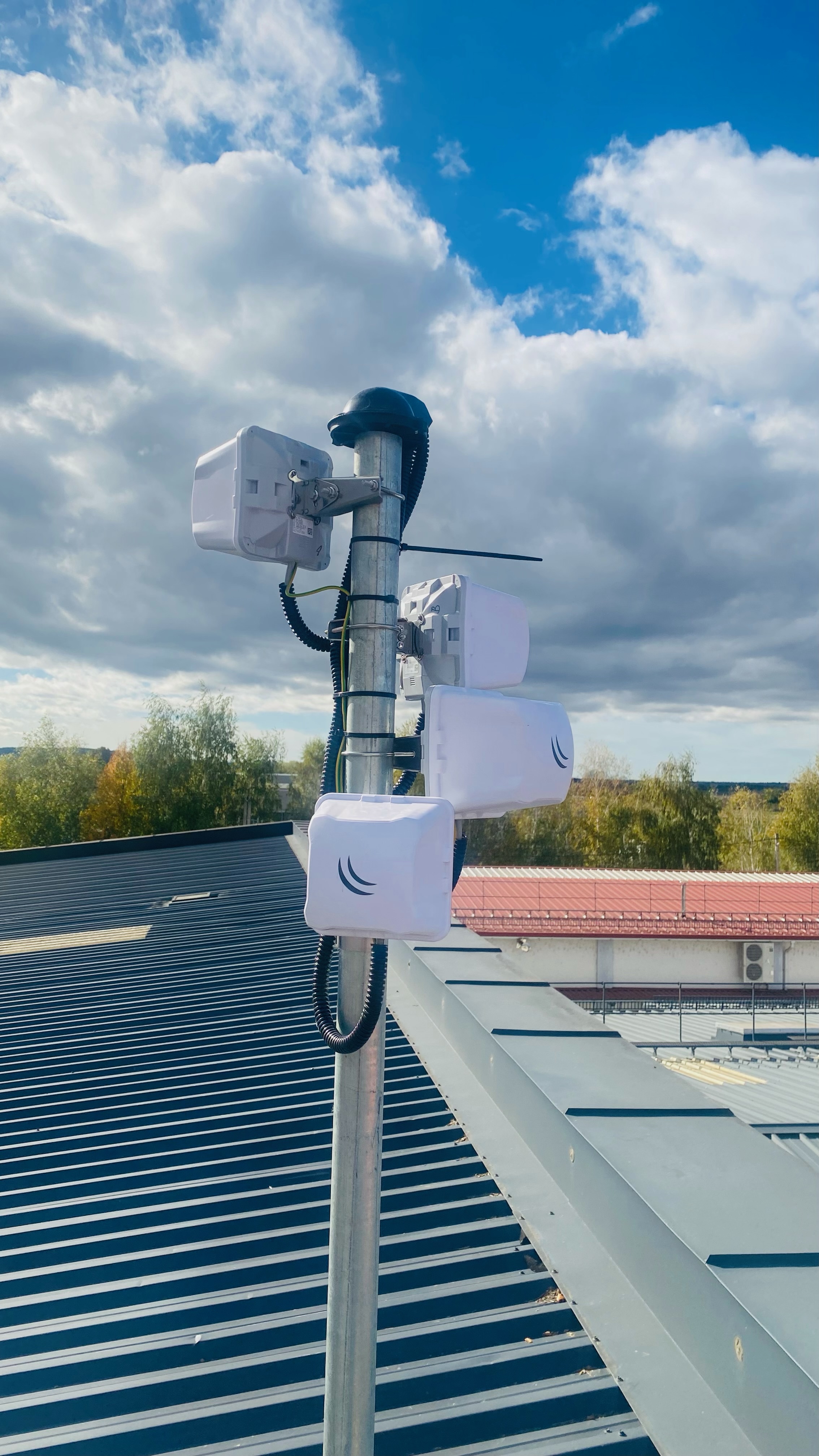

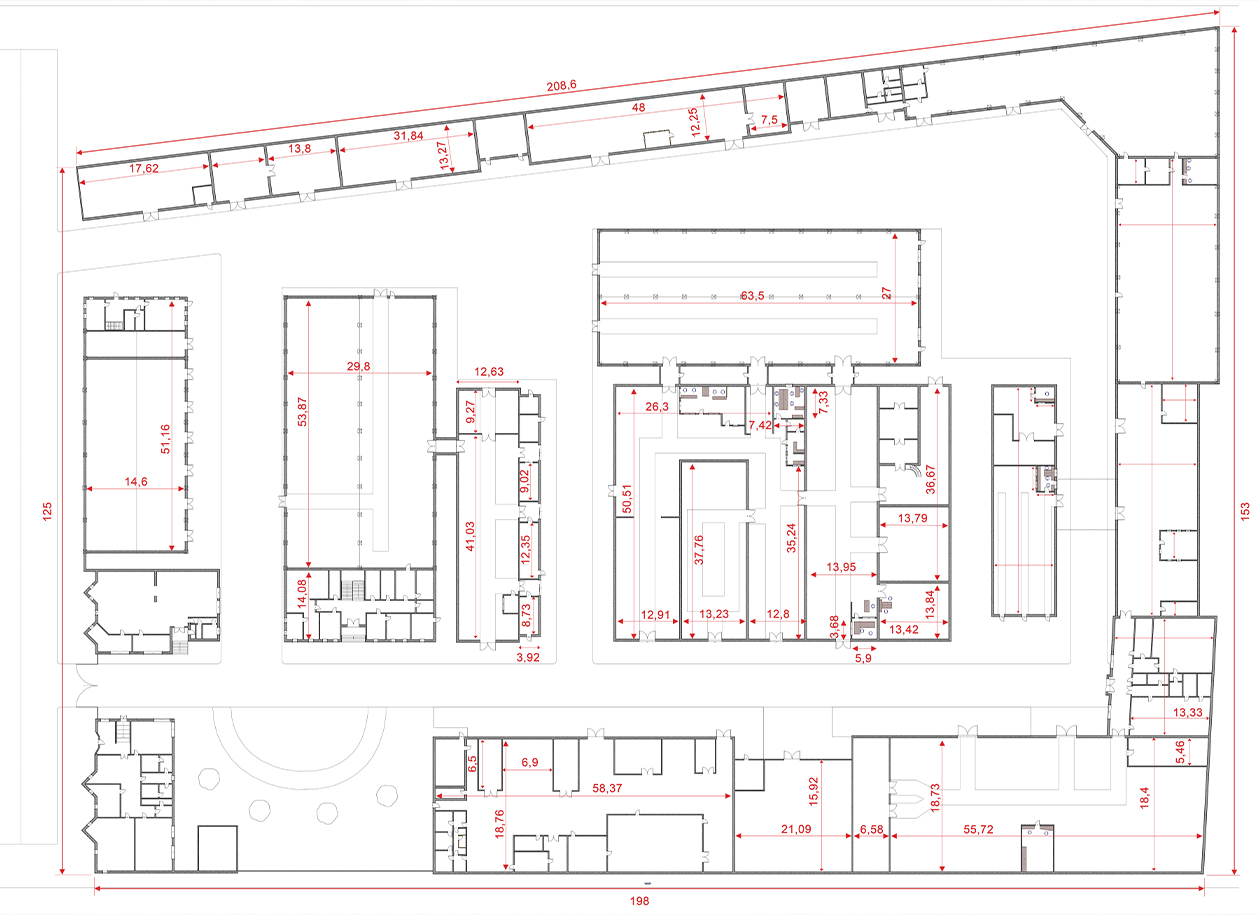

The production site consists of 40 buildings with different equipment. Due to the sudden increase in energy prices in recent years, the operation of the uncontrolled heating system has become very expensive. After a return calculation, the client decided in favor of the investment. The site was divided into 5 regions. The domain couplers are IP routers and are connected to each other on an industrial WLAN network. A TP network was implemented within the provinces. Nearly 200 radiator controls, 29 Mitsubishi air conditioning fittings and 17 fan-coils and quite a few black radiators were integrated. The facility is served by 9 Sanier Duval (Vaillant) gas boilers. Each engine room received an independent (Siemens) KNX automation system. Energy waste is controlled by nearly 650 window and door opening sensors. For operations, the intervention is provided by Netx visualization.
Contact Information
| Company Name | Elektro-Kamleithner Kft. |
| Company Email | info@ek.hu |
| Company Website | https://www.elektro-kamleithner.hu/ |
| Contact Name | Zoltan Balogh |
| Contact Function |
