Flanders House

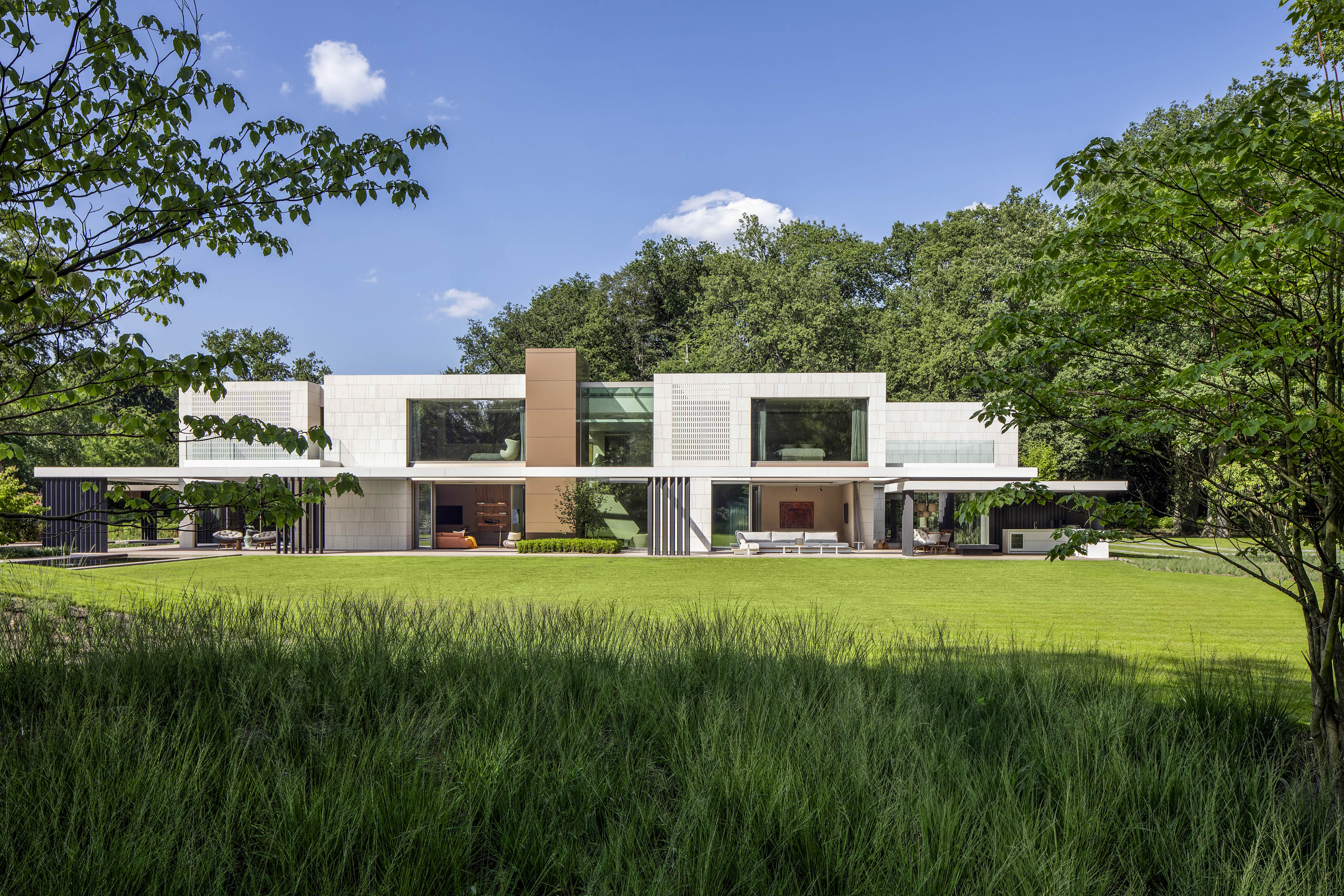

Villa in Flanders
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Villa |
| Project Type | Residential |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation, Floor Heating Control, Boiler and burner Control
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Intrusion Detection / Alarm Systems, Emergency Lighting, Presence Simulation, Supervision (e.g. Cameras), Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Fuel or Water tank level control, Peak Demand Monitoring, Load Shedding , Energy Harvesting (Avoiding use of batteries), Use of Renewable Energies, Battery Storage
- Other - Intercom, Audio Control, Video Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs, Wind and Rain Protection
Customers Description

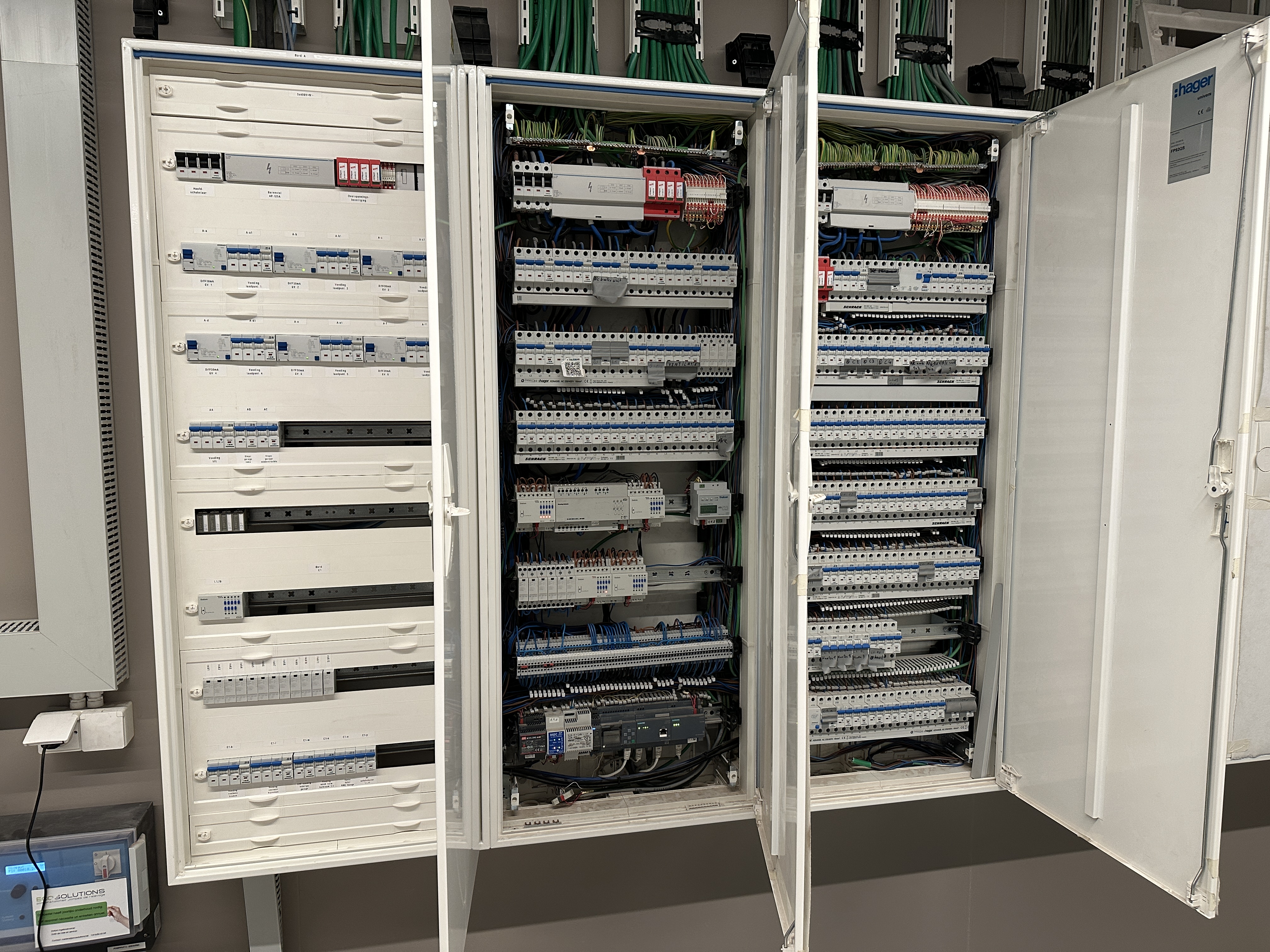

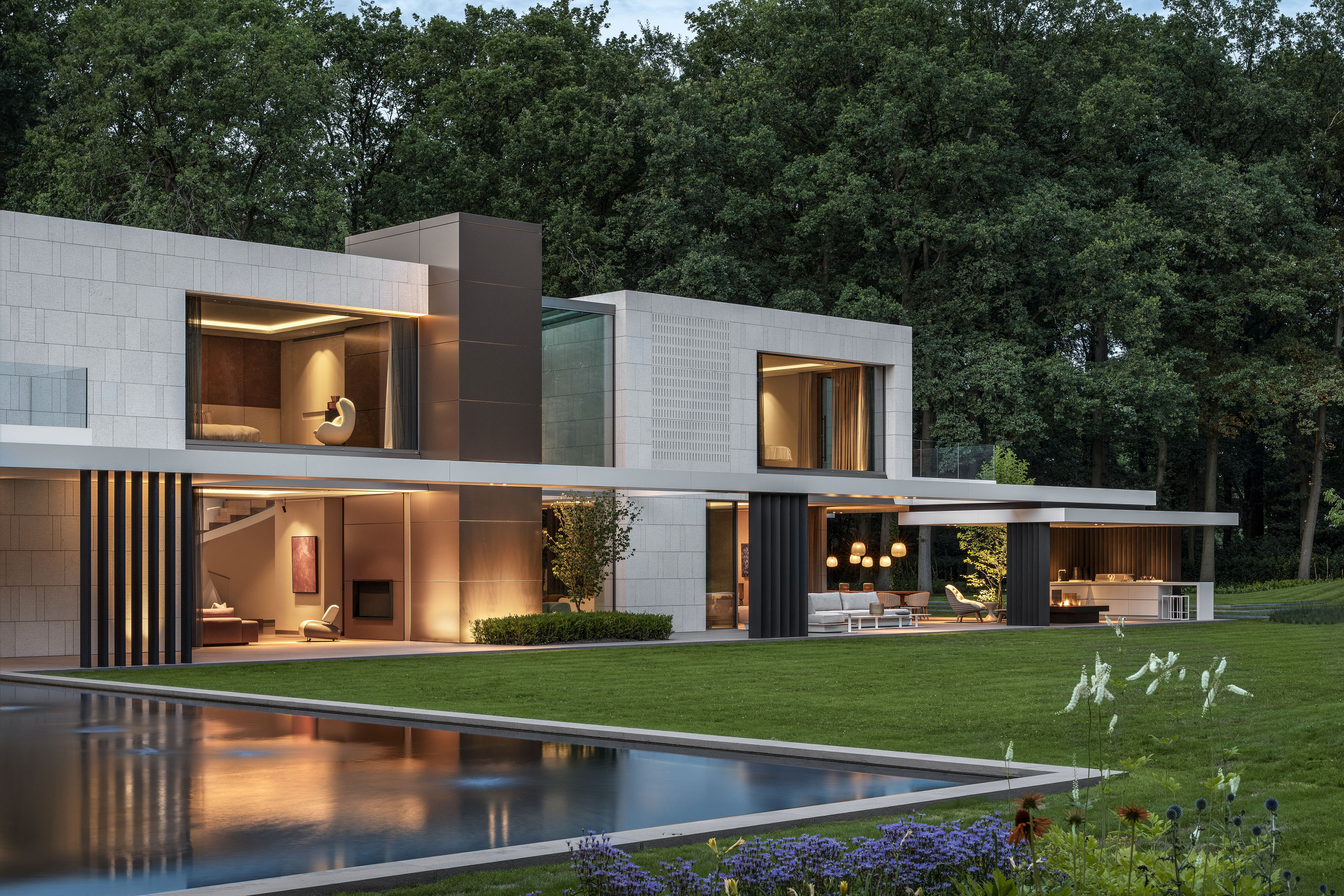

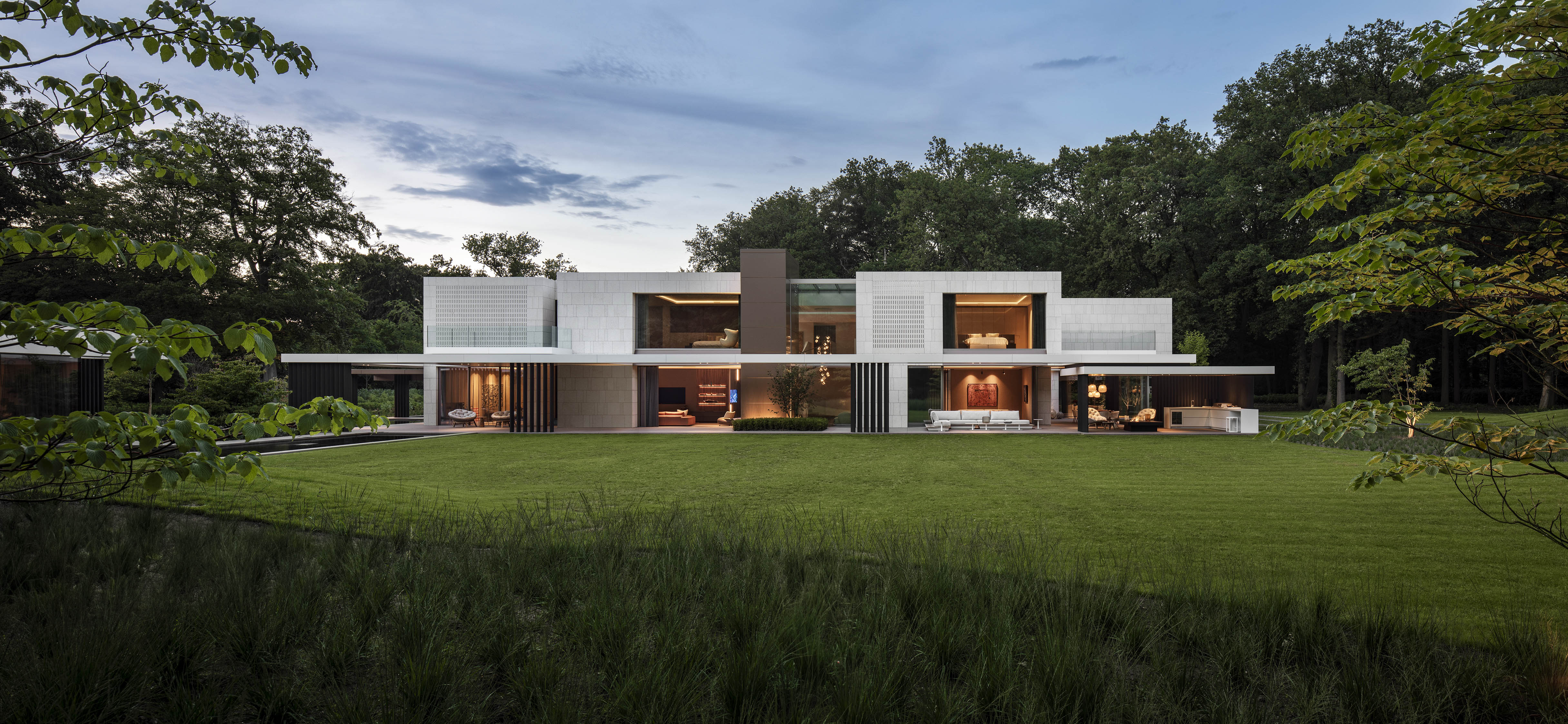

This by Saota designed villa is completely controlled via KNX

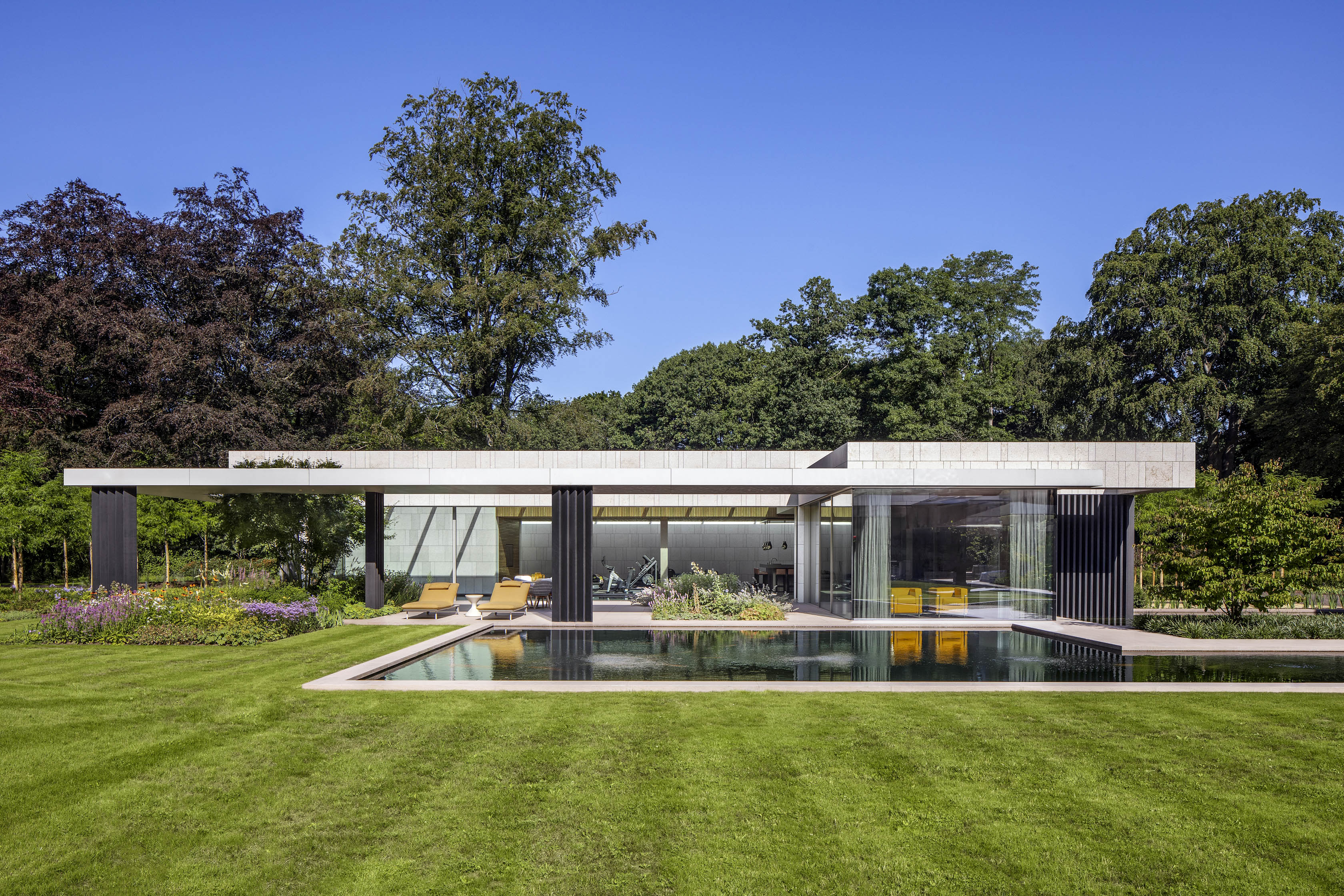

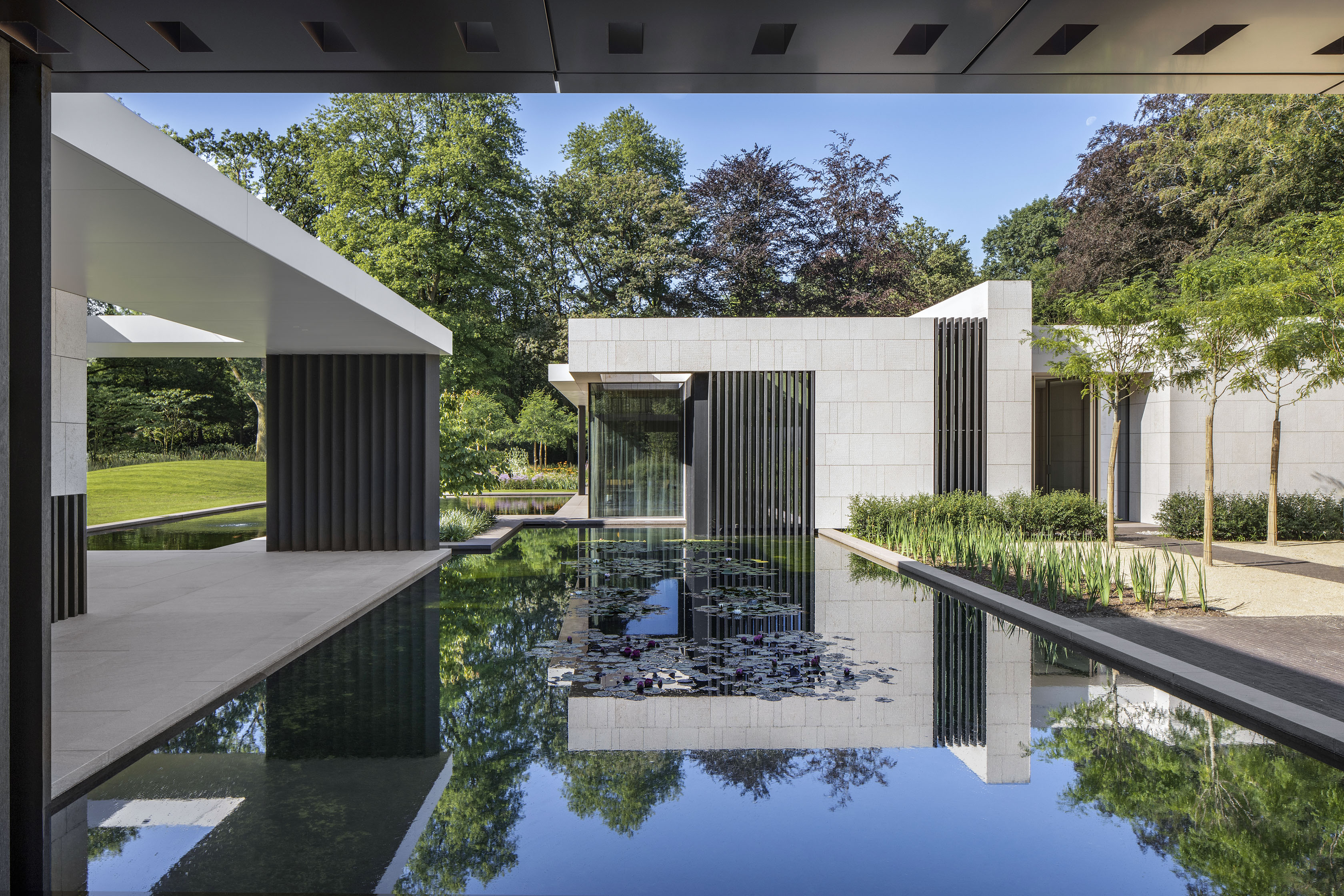

From the light all the way to the Integrating of the geothermic heat pump to insure optimal energy efficiency for the heating/cooling of the villa, the indoor swimming pool and the large koi pond.

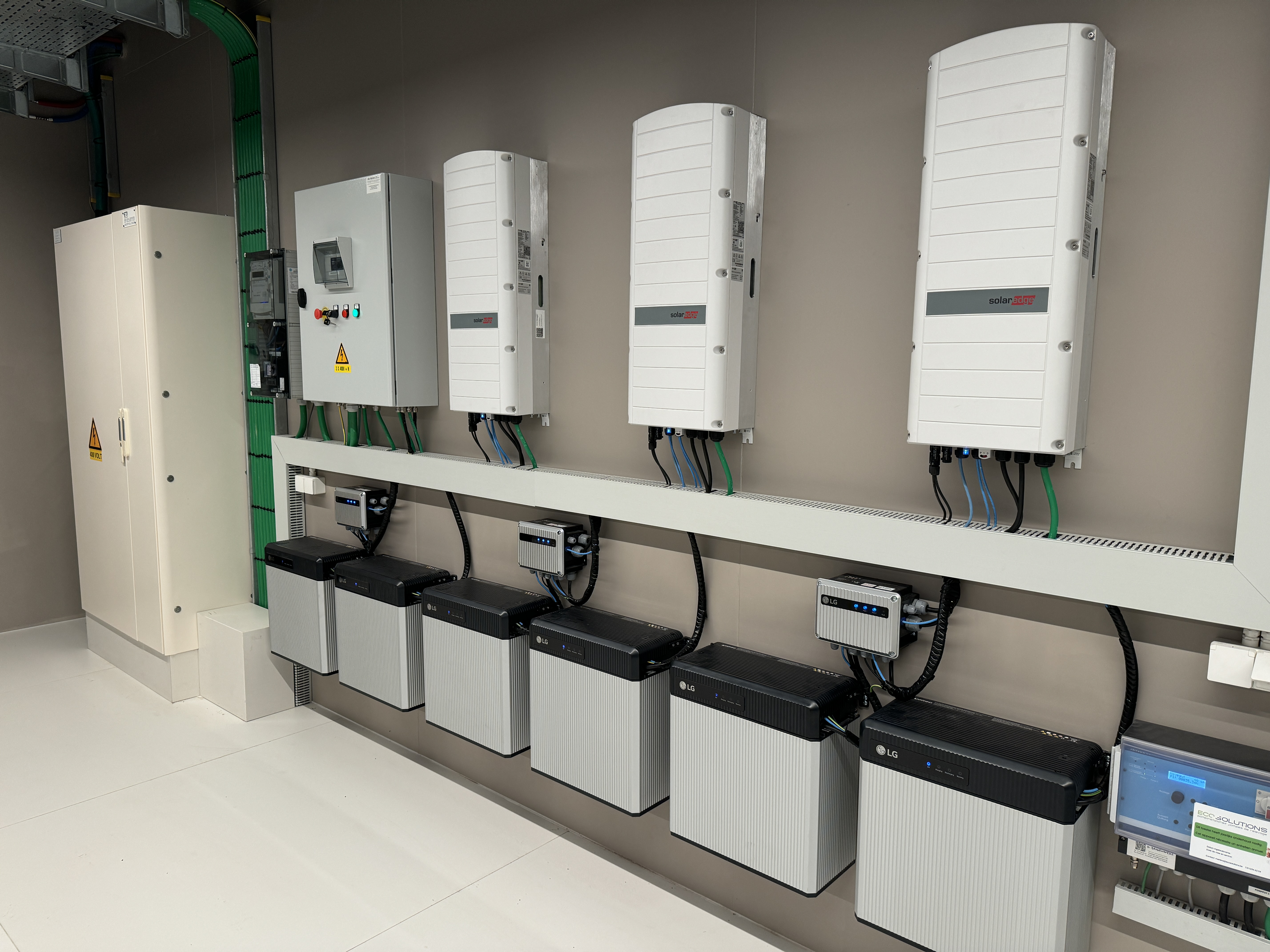

Some special KNX features are the 6 EV charging stations that optimize the use of the own solar and stored battery power. With a RGB-strip integrated in the floor underneath the car showing the EV charging status.
Ventilation system with adiabatic humidification for the ideal indoor climate. Including underground parking ventilation based on VOC sensors.

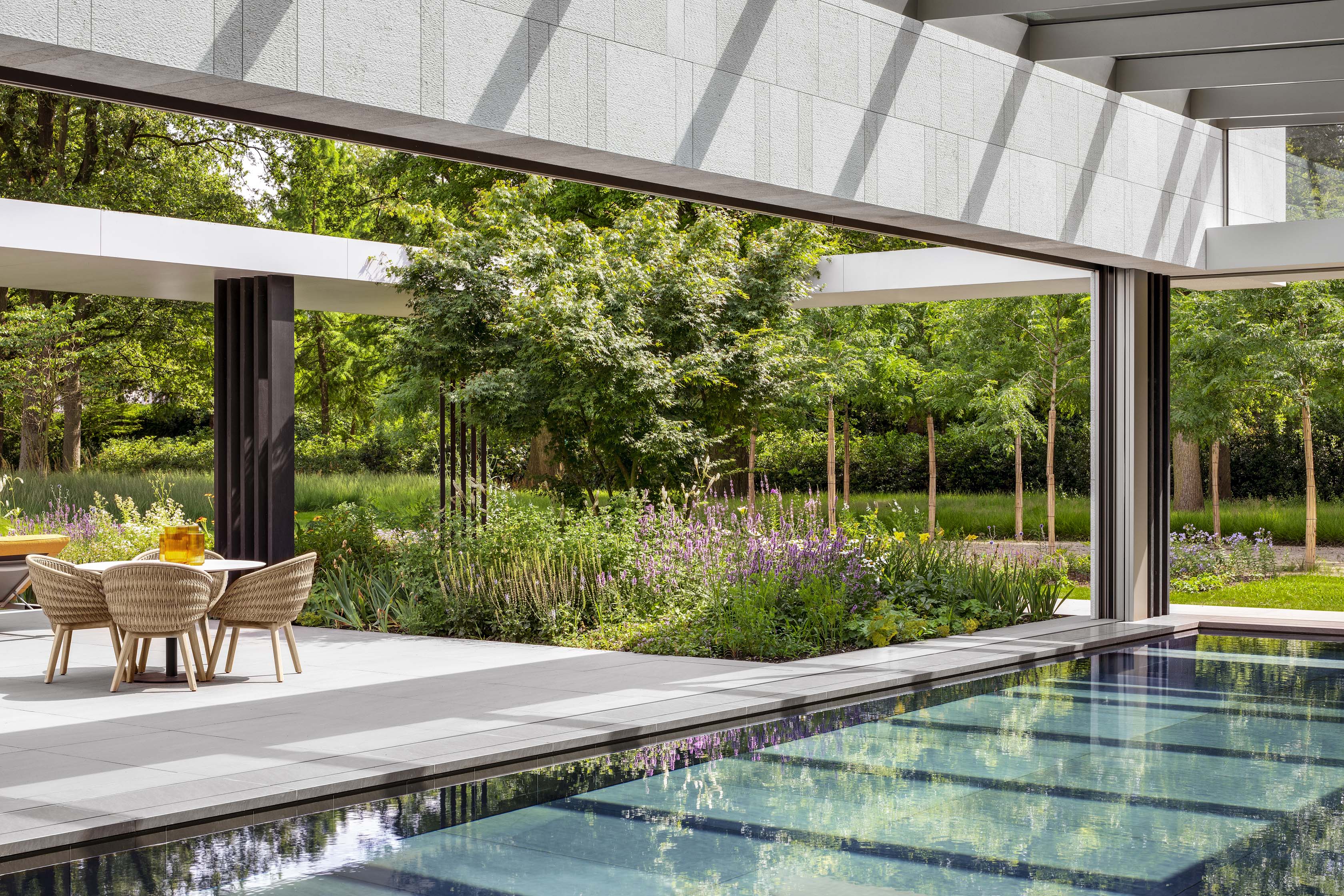

A hidden swimming pool will appear when a scene is selected, by lowering the floor in the water to a definable depth.
Multiple large electric controlled sliding windows are used. These will disappear completely in the wall or floor to make the garden an extension of the living spaces.
A camera with AI will open the front gate only when the owner’s car is detected.
Contact Information
| Company Name | Domotechnology & High End Electro |
| Company Email | michael@domotechnology.be |
| Company Website | https://www.domotechnology.be |
| Contact Name | Michael |
| Contact Function | System Integrator |
