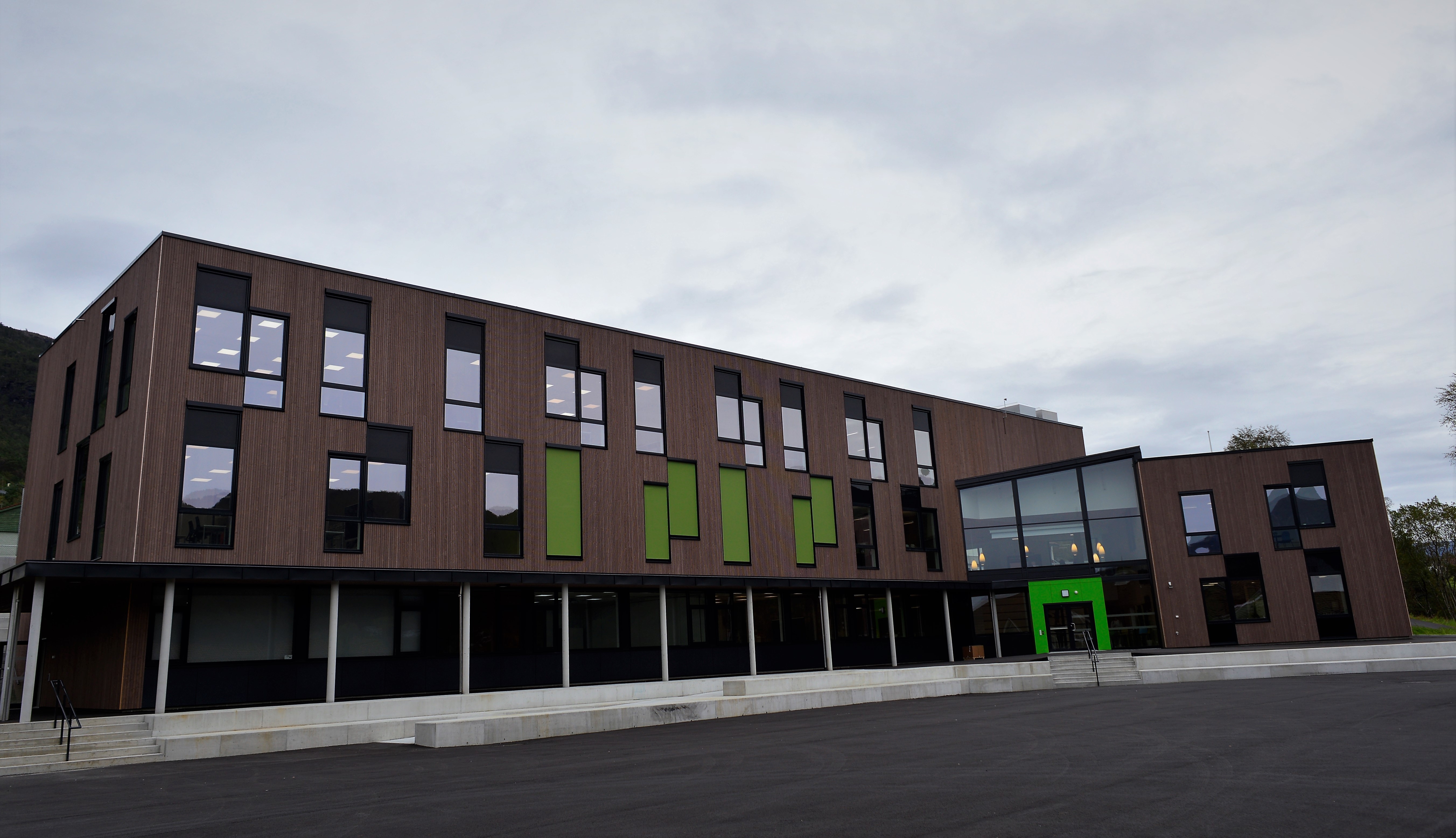

Fusa ungdomsskole, Hordaland, Norway
Educational in Bergen, Fusa
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 1.001 – 5.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Automatic Occupancy Detection, Lighting Colour Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Floor Heating Control, Boiler and burner Control
- Security and Safety - Interaction with HVAC/Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description
We are here using KNX in the sentrum of the indoor climate regulation, we then make the heating and cooling work together. The presence detectors also help us as multisensors, and that they work with the lighting and with the climate control.

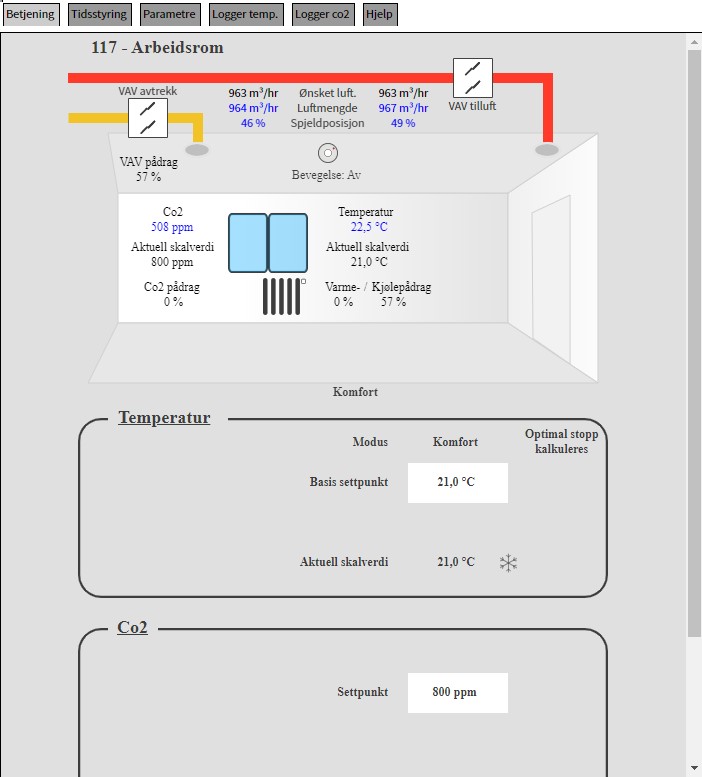

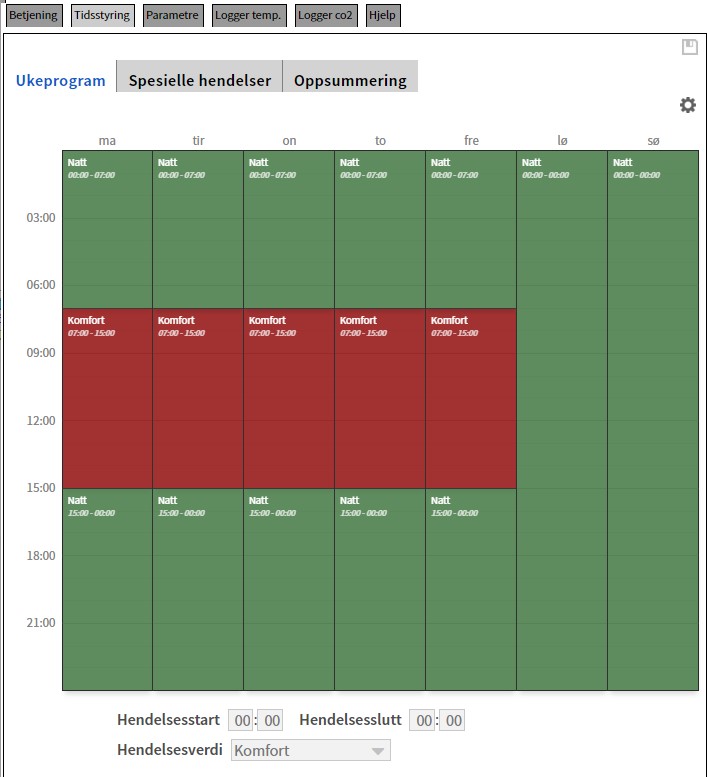

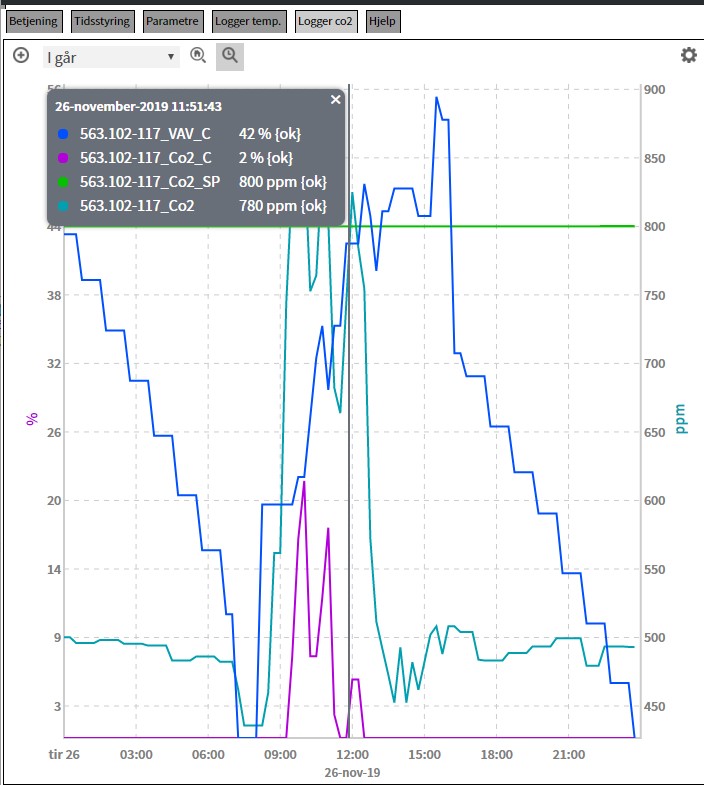

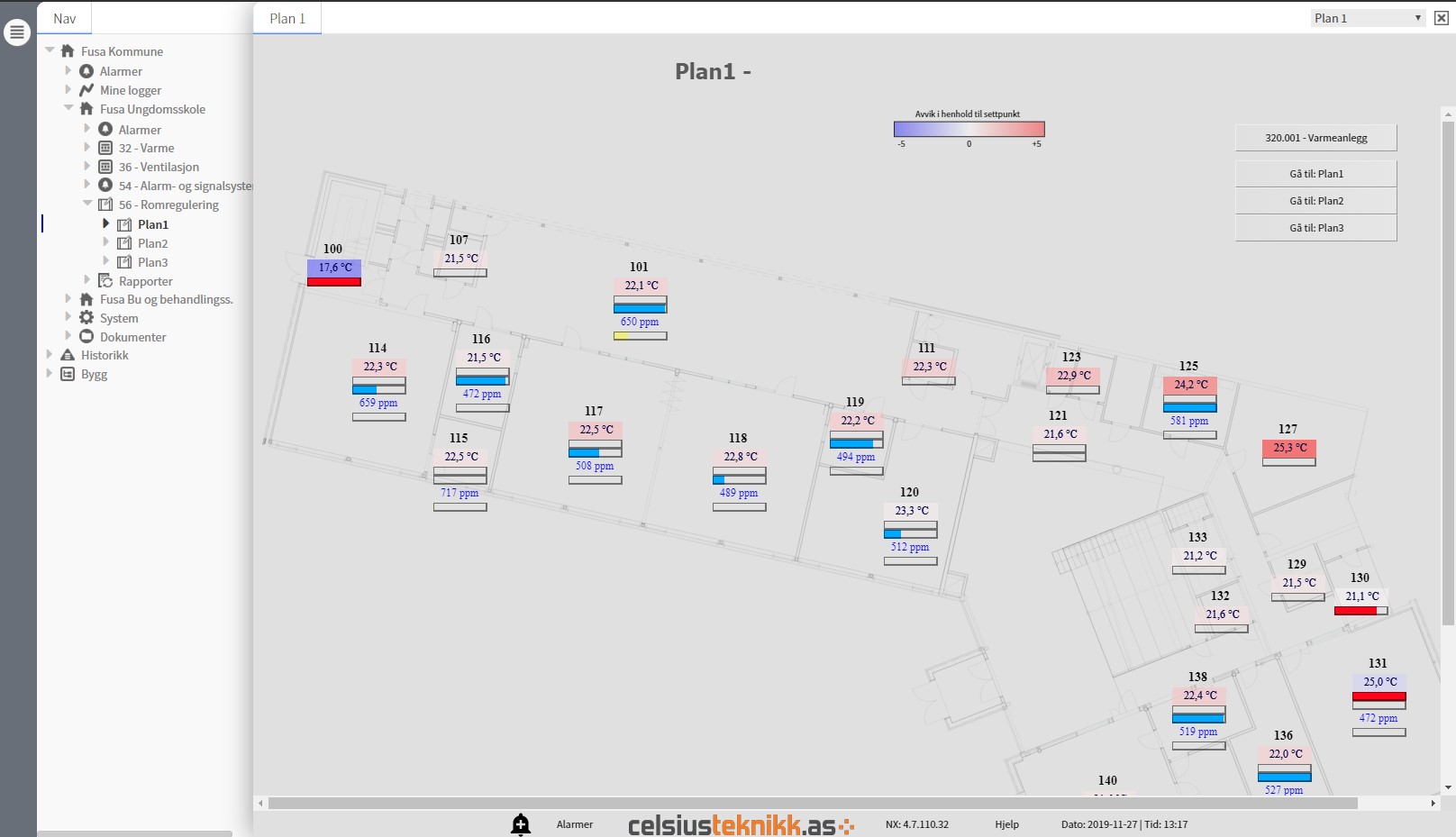

Coupled with Niagara at the BMS level, we have good levels of charting that help us in the case of diagnostic work. The optimise start stop of heating in each individual room help us use less energy, and the presence detector puts the room in comfort mode.

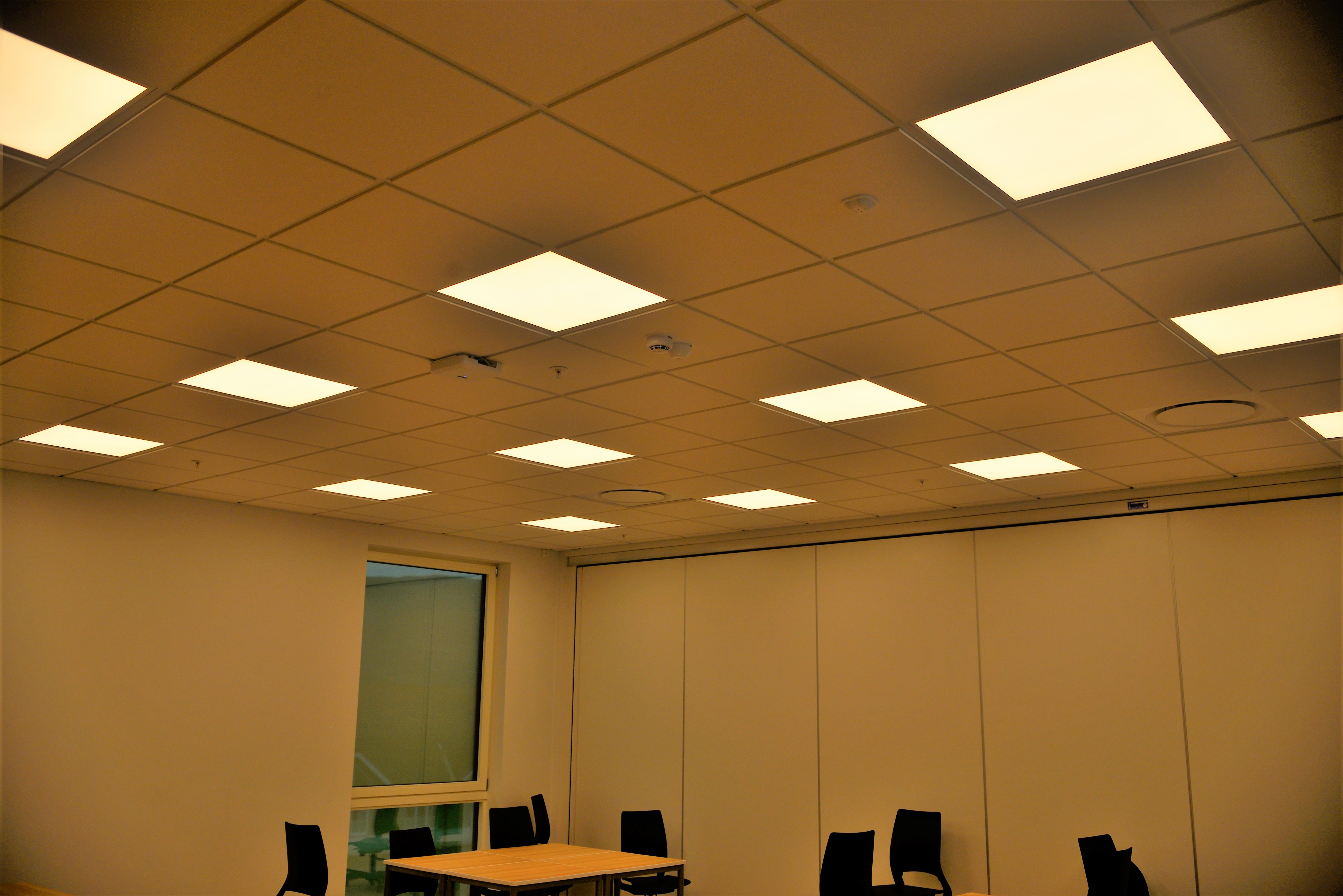

Locally they can trim the tunable white from local KNX switches and turn off the lights if they so please.
Contact Information
| Company Name | Celsius Teknikk AS |
| Company Email | cg@celsiusteknikk.no |
| Company Website | https://celsiusteknikk.as/ |
| Contact Name | Christoffer D Gerhardsen |
| Contact Function | System Integrator |
