Guangzhou Metro System KNX Automation Project (new line 13, 14, 21)
Transportation in guangzhou
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Transportation |
| Project Type | Other |
| Year of Completion | 2017 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 501 – 1.000 |
| Man Power | 26 – 50 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used

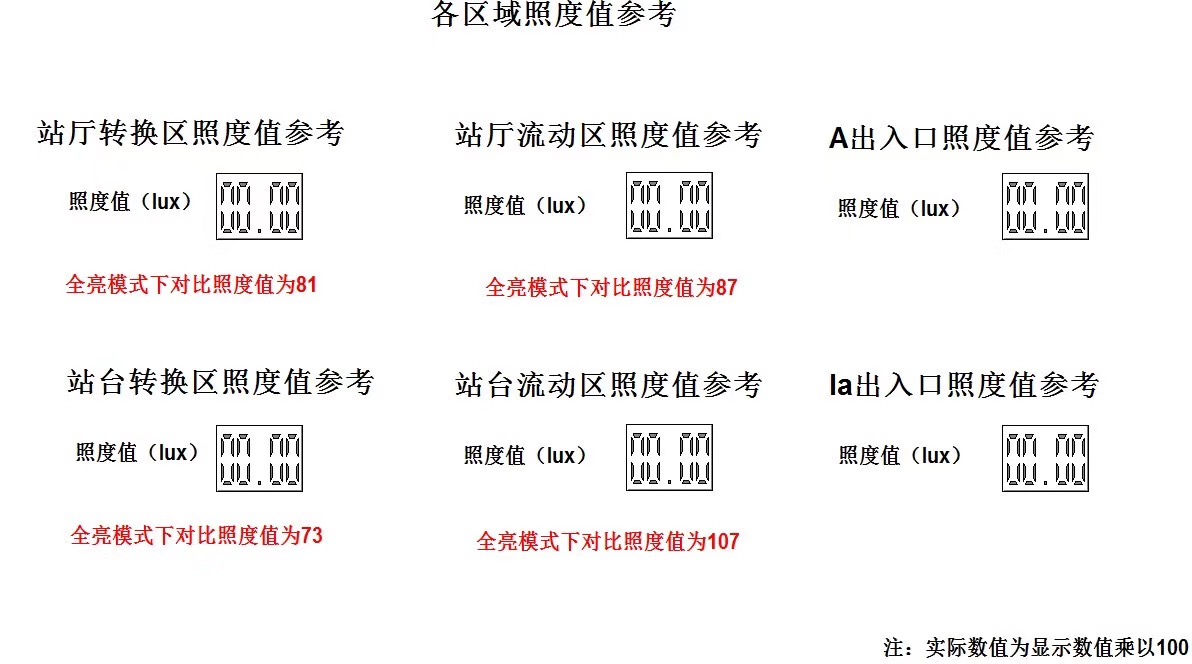

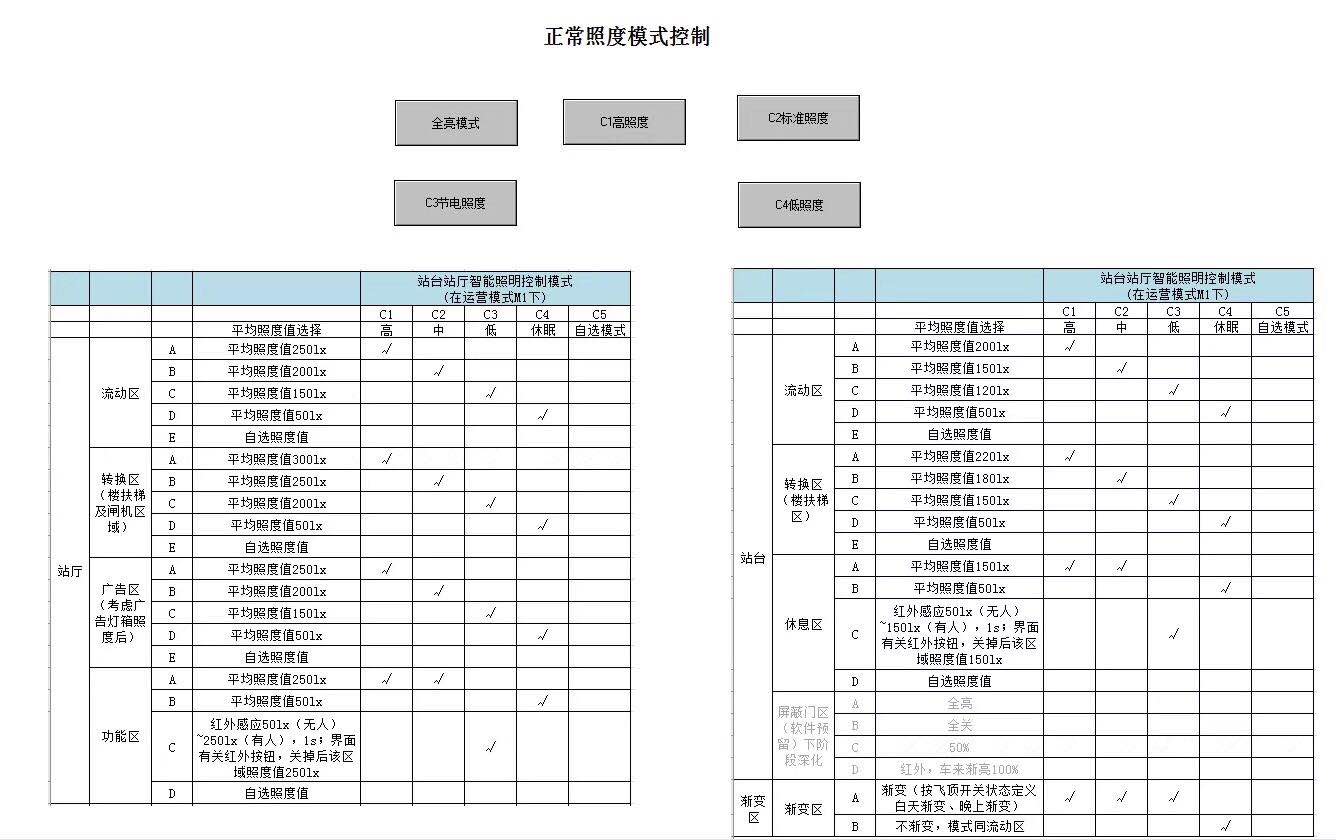

- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Supervision (e.g. Cameras)
- Operation and Visualisation - Switches / Push Buttons, IR Remote Control, PC Visualisation, Touch Panels & Display Panels
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection
- Other

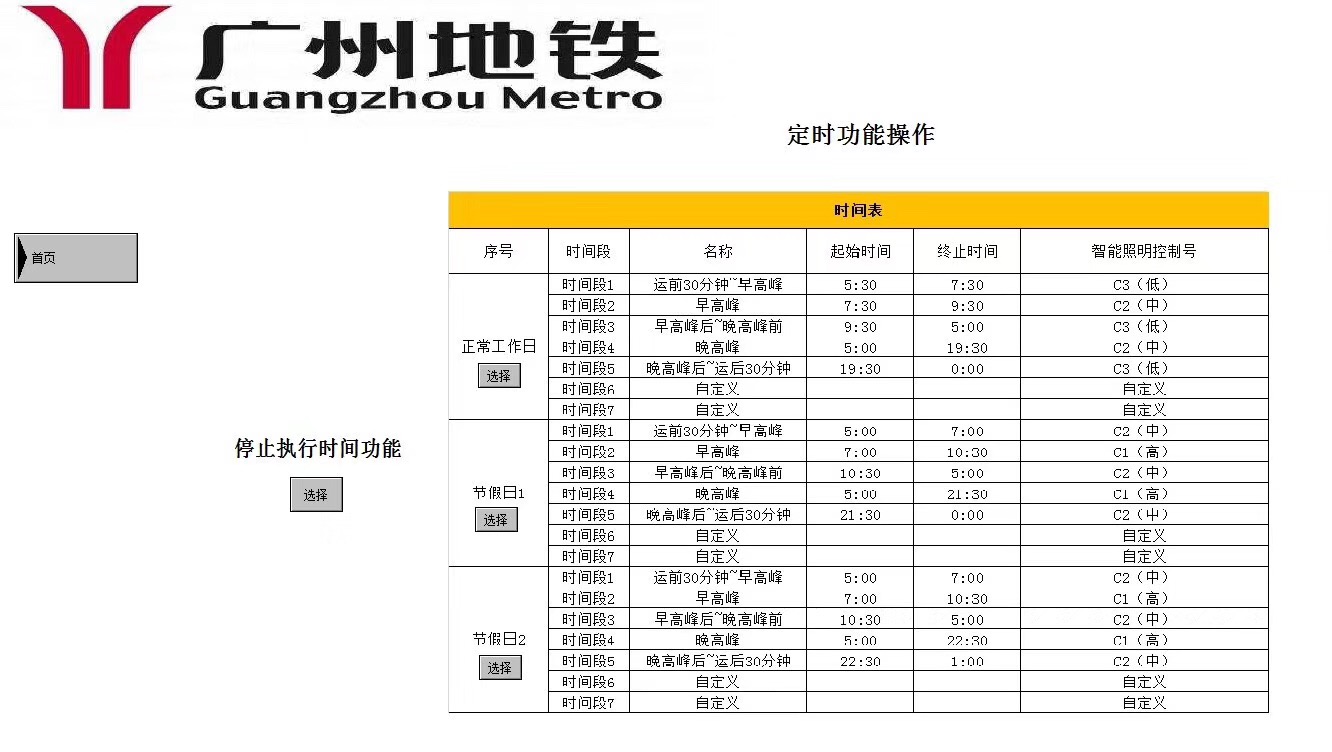

- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description

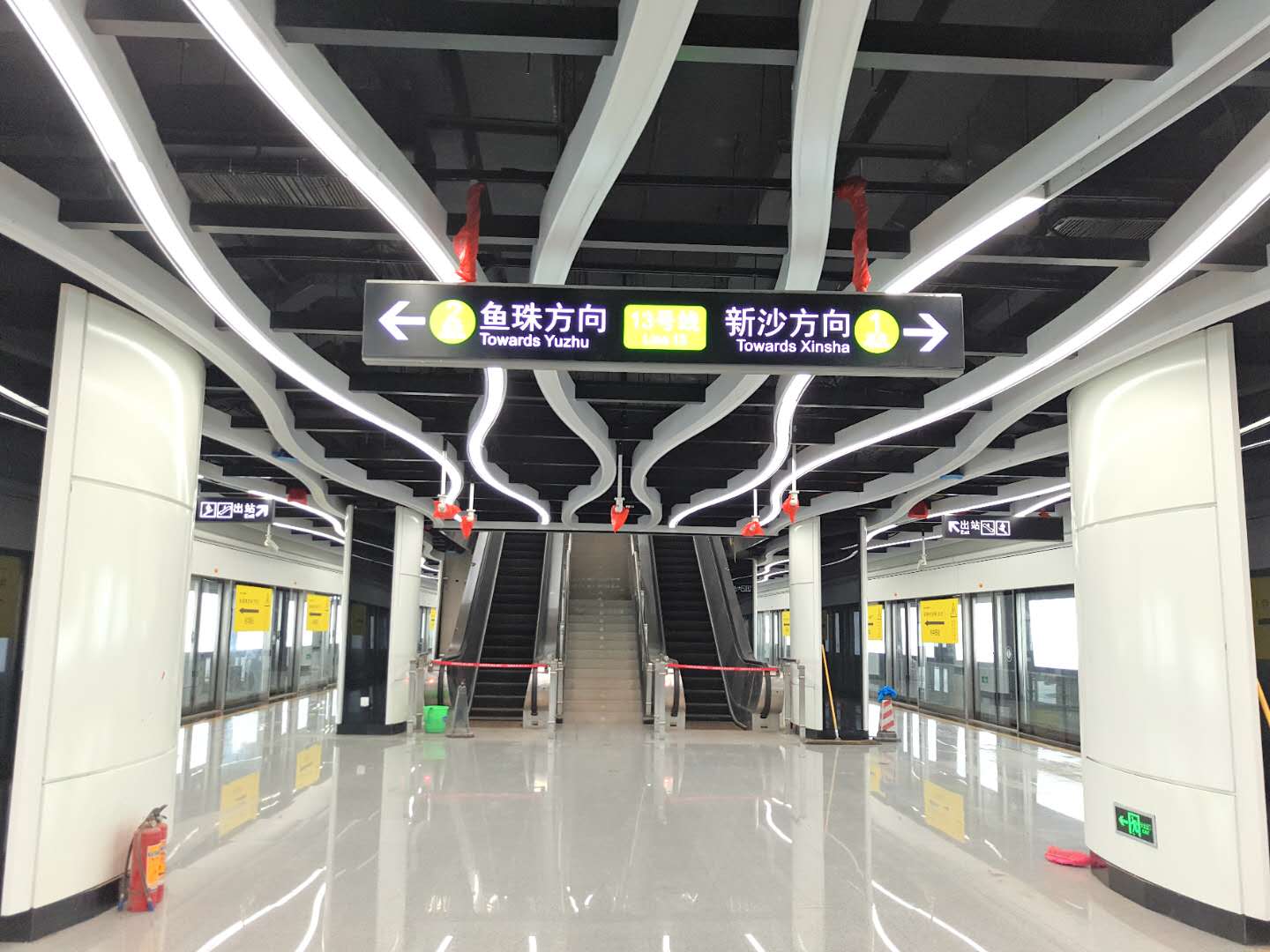

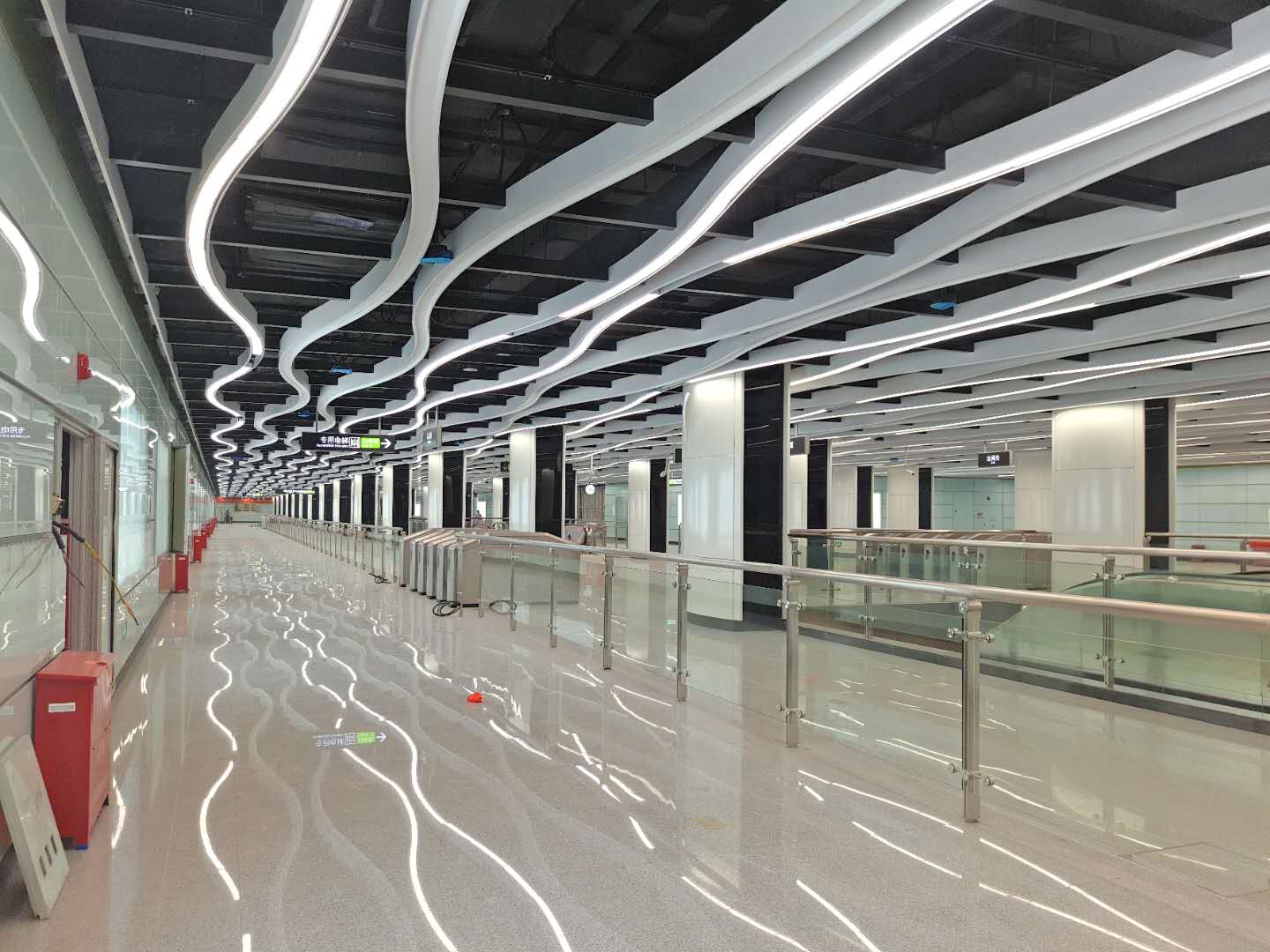

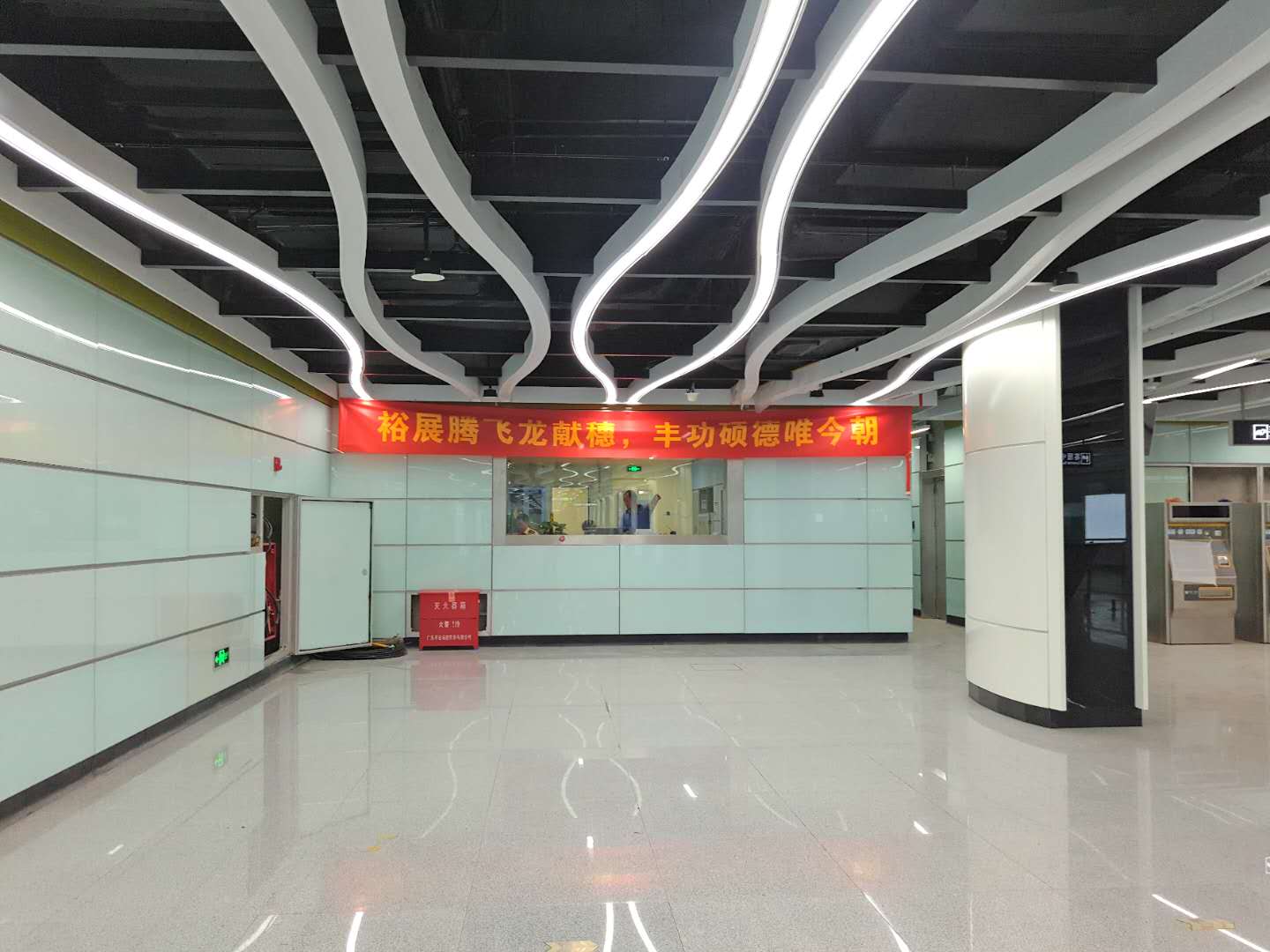

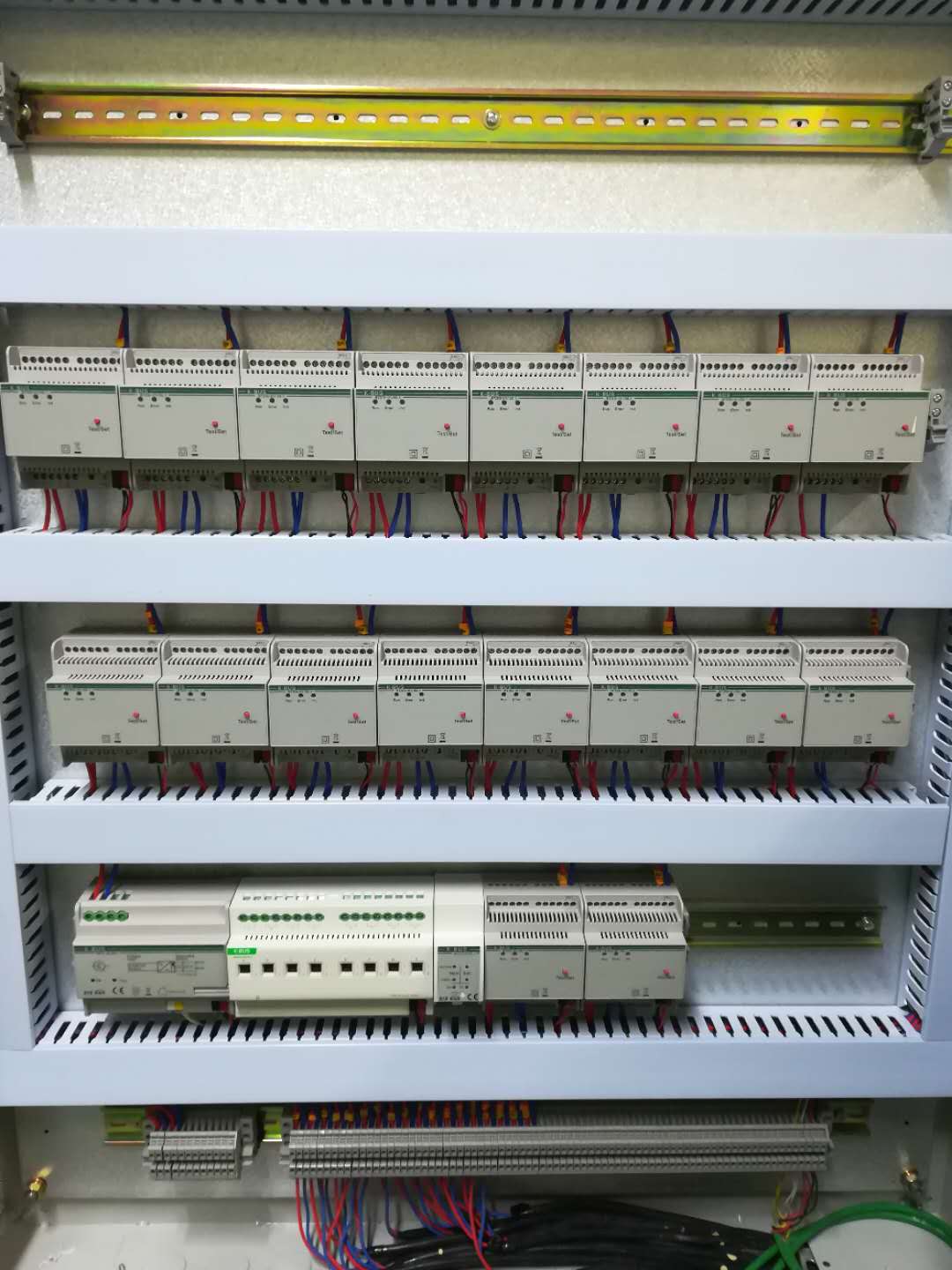

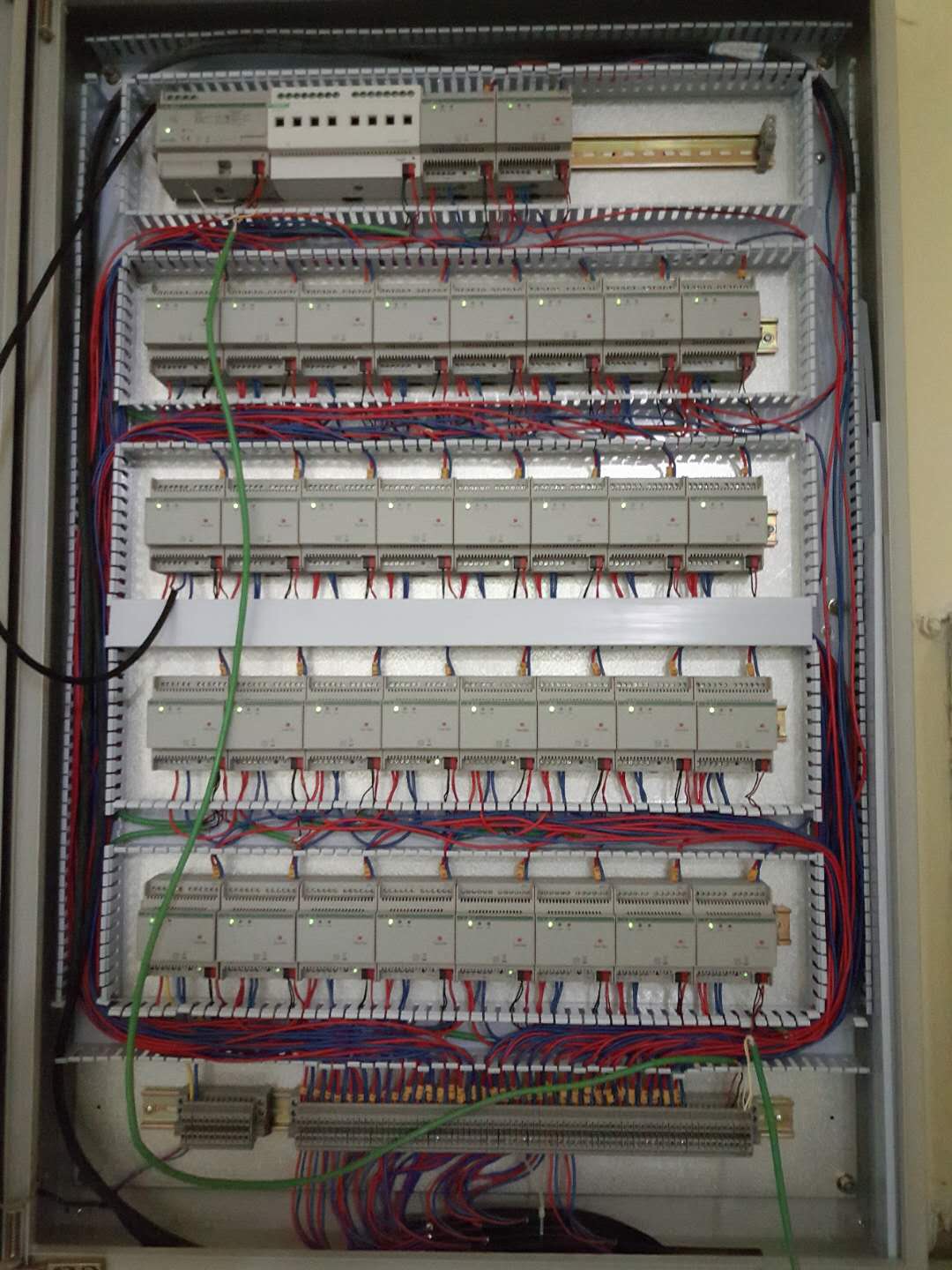

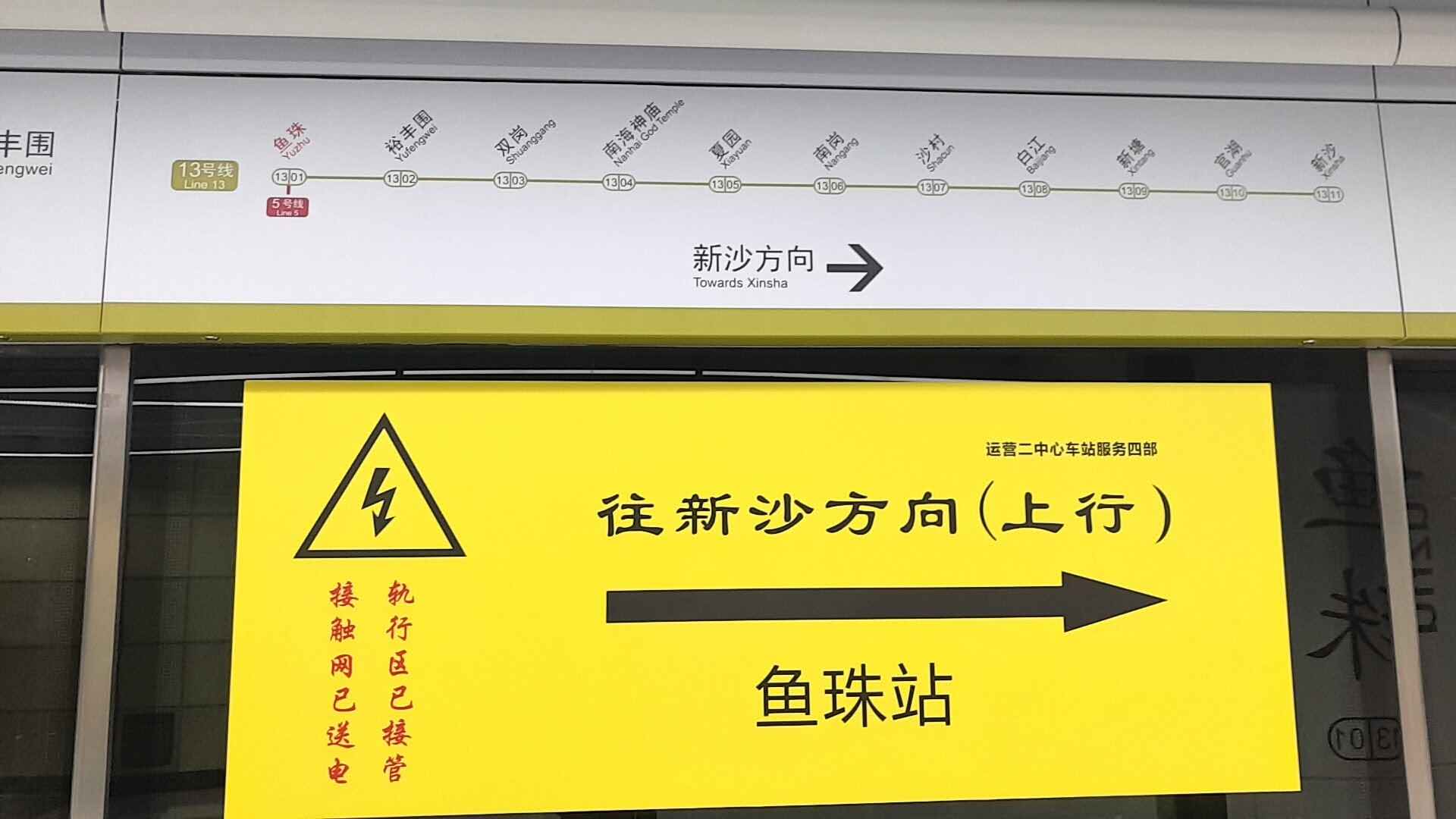

As of the completion of construction in Guangzhou Metro System new lines, GVS has won the KNX part in the metro system automation. The THREE new lines (line #13, #14, #21 with 40 stations) are now being implemented with K-BUS (KNX) as well as other KNX brands, functions include public lighting, entrance/exit lighting, centralized/scenario control, sensors, metering etc. are being used into the project. The whole project will be finished within December 2017. ONCE FINISHED, THIS WILL BE A NEW RECORD (LARGEST) OF KNX AUTOMATION SYSTEM IN THE CATEGORY OF METRO STATION AUTOMATION WORLDWIDE.
Contact Information
| Company Name | Guangzhou Video-Star Intelligent Corp. Ltd |
| Company Email | jack_zhan@video-star.com.cn |
| Company Website | http://www.video-star.com.cn |
| Contact Name | Jack Zhan |
| Contact Function | Planner |
