Hawaikirangi - Whakaata Maori Studios
Public building in Auckalnd
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Public building |
| Project Type | Commercial |
| Year of Completion | 2023 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety - Smoke/Fire Detection
- Operation and Visualisation - Switches / Push Buttons, Touch Panels & Display Panels
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Timed Functions, Logical Functions
- Blind and Shutter Control
Customers Description

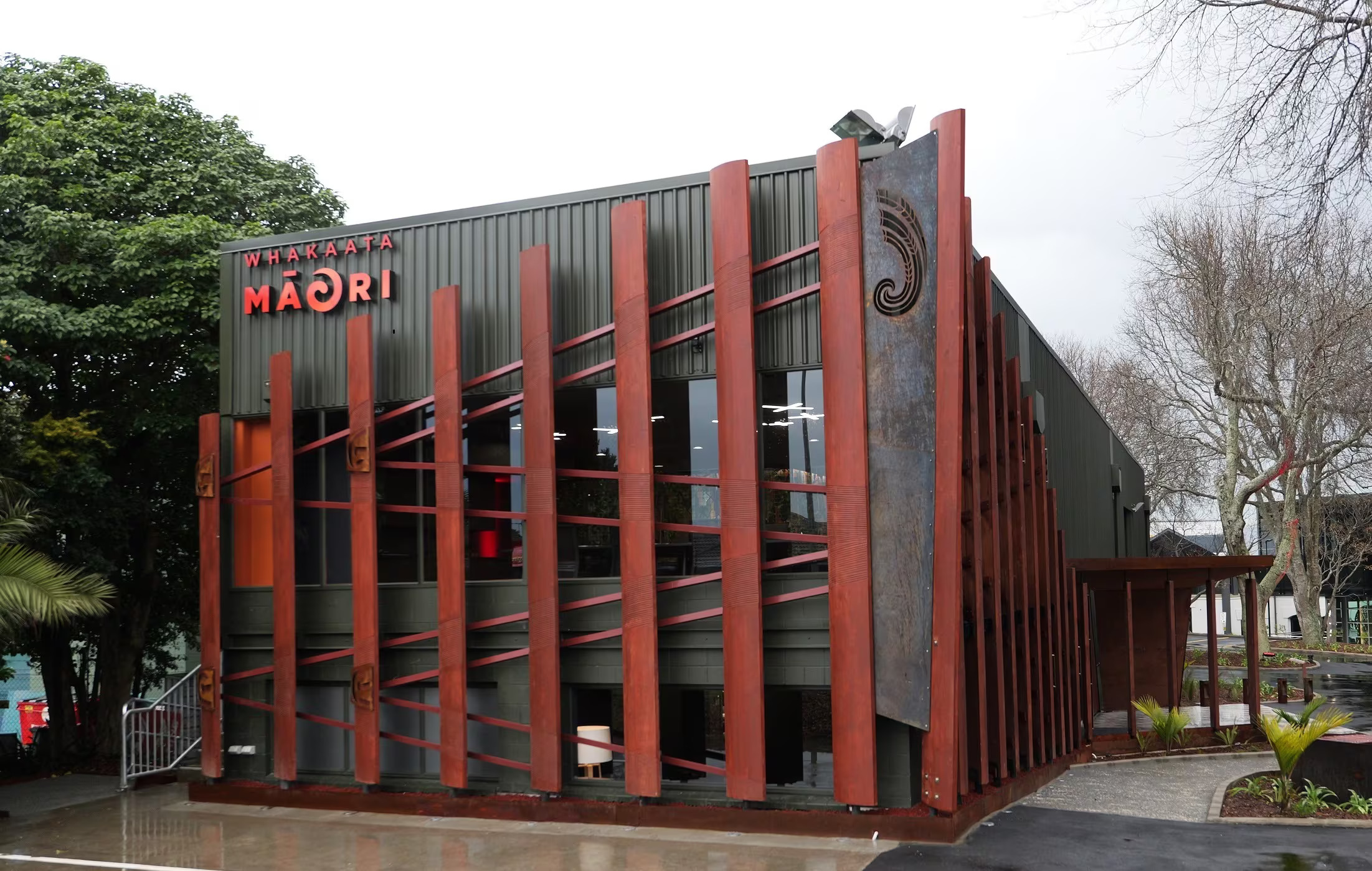

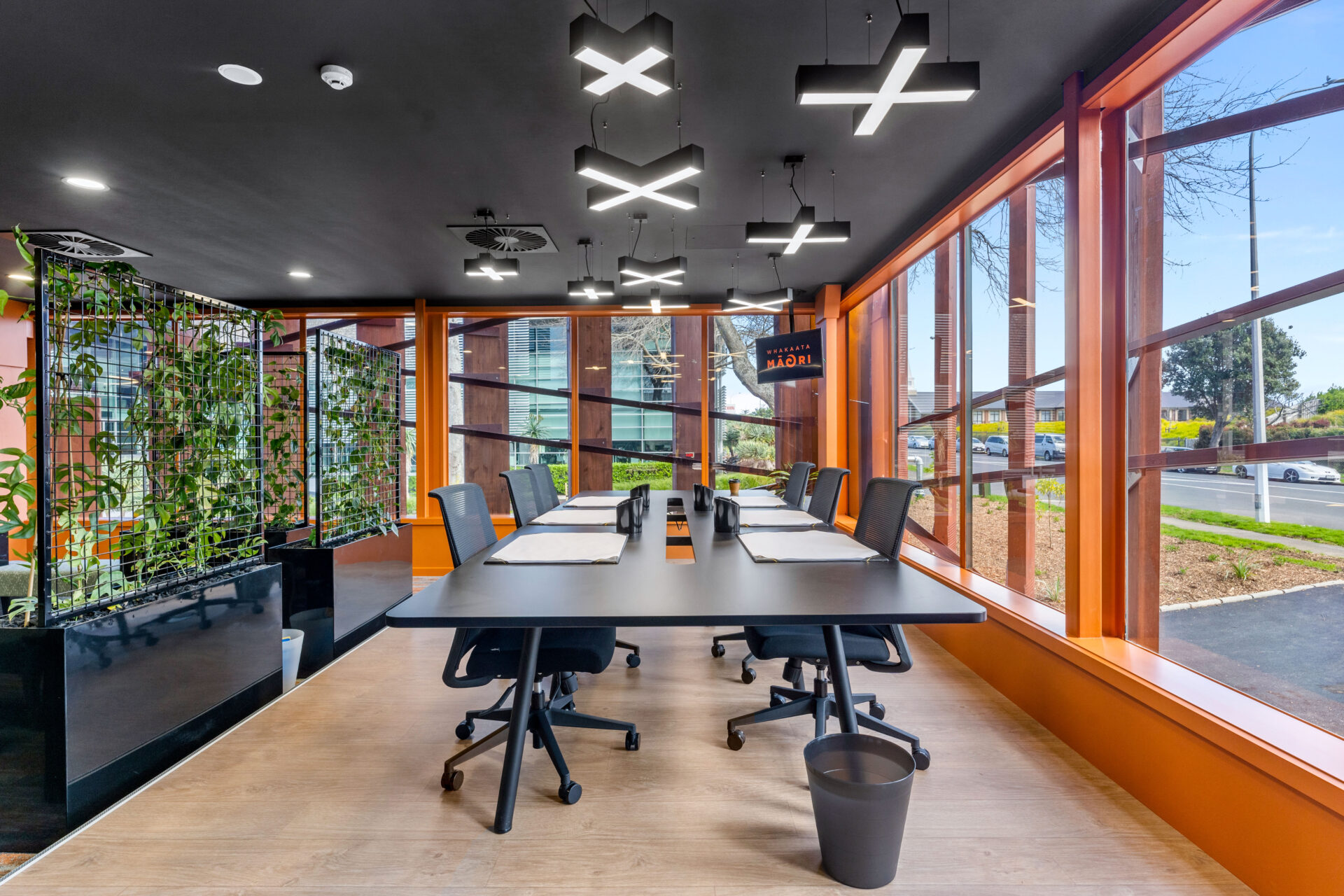

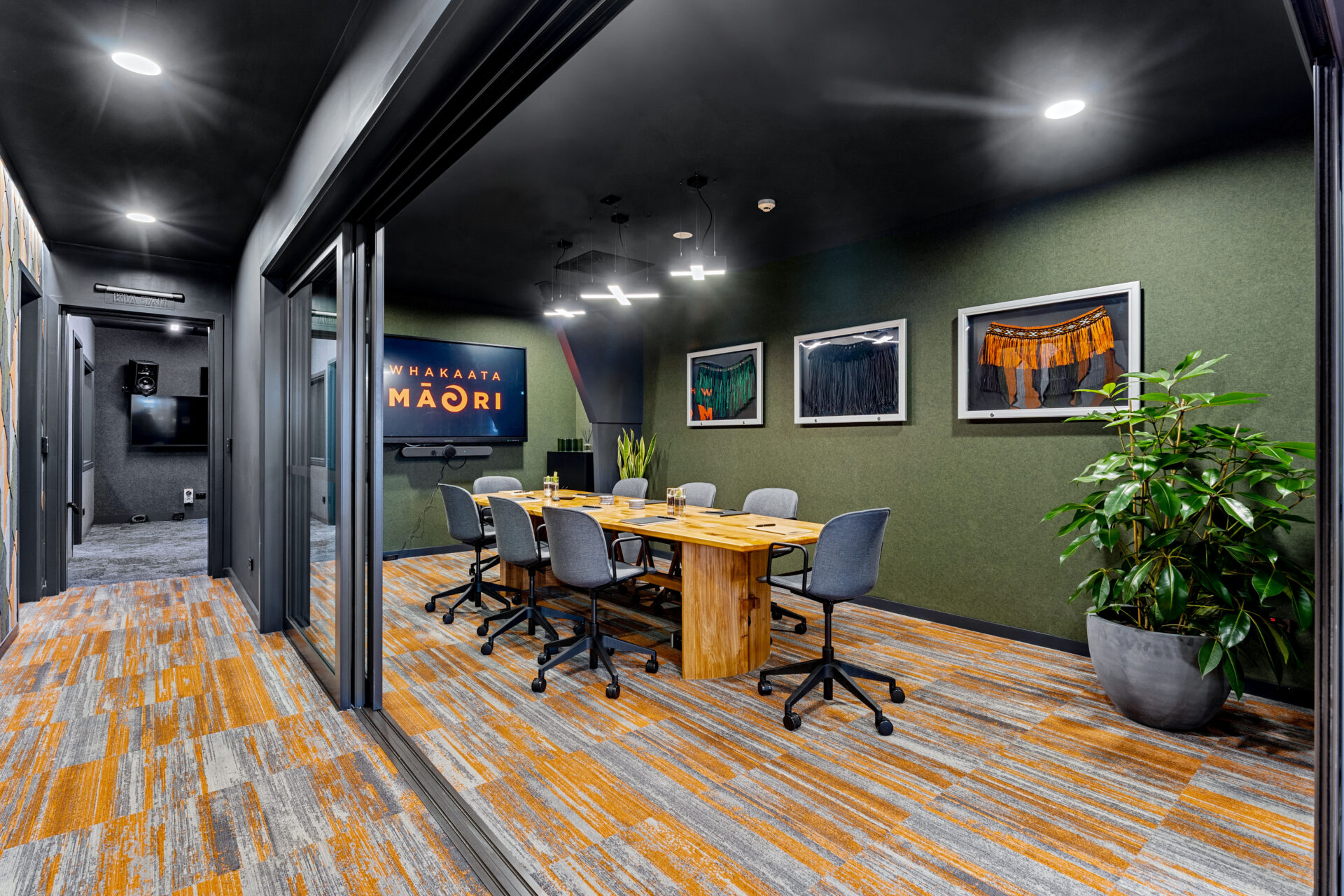

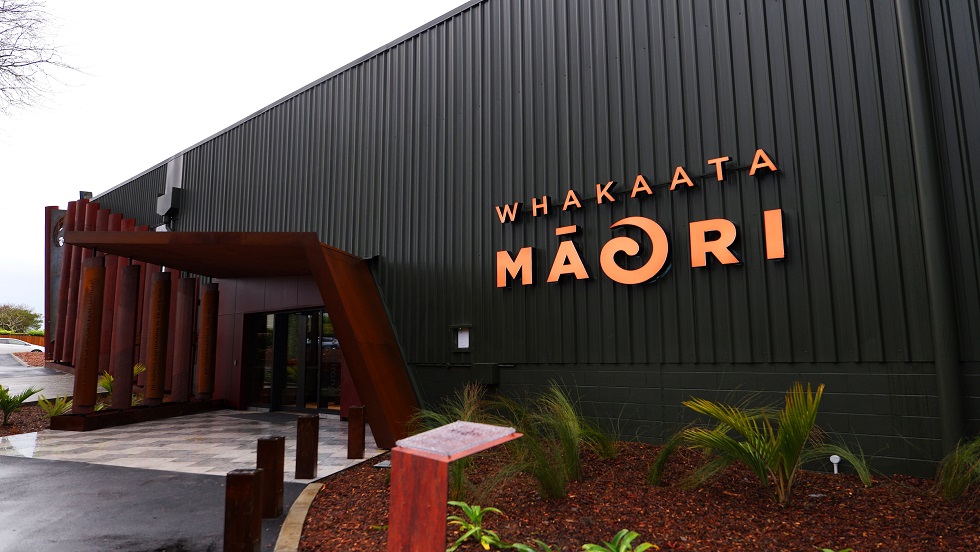

This building is used for the television production of the biggest indigenous population in New Zealand’s public broadcasting space. Spanning 232 Square meters & built with sustainable materials. The project is significant since the Maori TV broadcasting station has been built, there has been no more reliance on using external facilities to film any production as now it can be done inhouse. The Lighting automation system was built in such a way that the light levels controlled via DALI are changeable by the clients in many of the rooms built in for the ability to change from a meeting room to a production room all from a click of a button (Scene control). The Lighting Control System is being controlling the Outside lighting & signage, Audience/Stairwell areas, Green Room & production room.
Contact Information
| Company Name | Smart Building Technologies |
| Company Email | info@smartbt.co.nz |
| Company Website | http://www.smartbt.co.nz/ |
| Contact Name | Aleksandar Soldatovic |
| Contact Function | System Integrator |
