Hirschgässlein

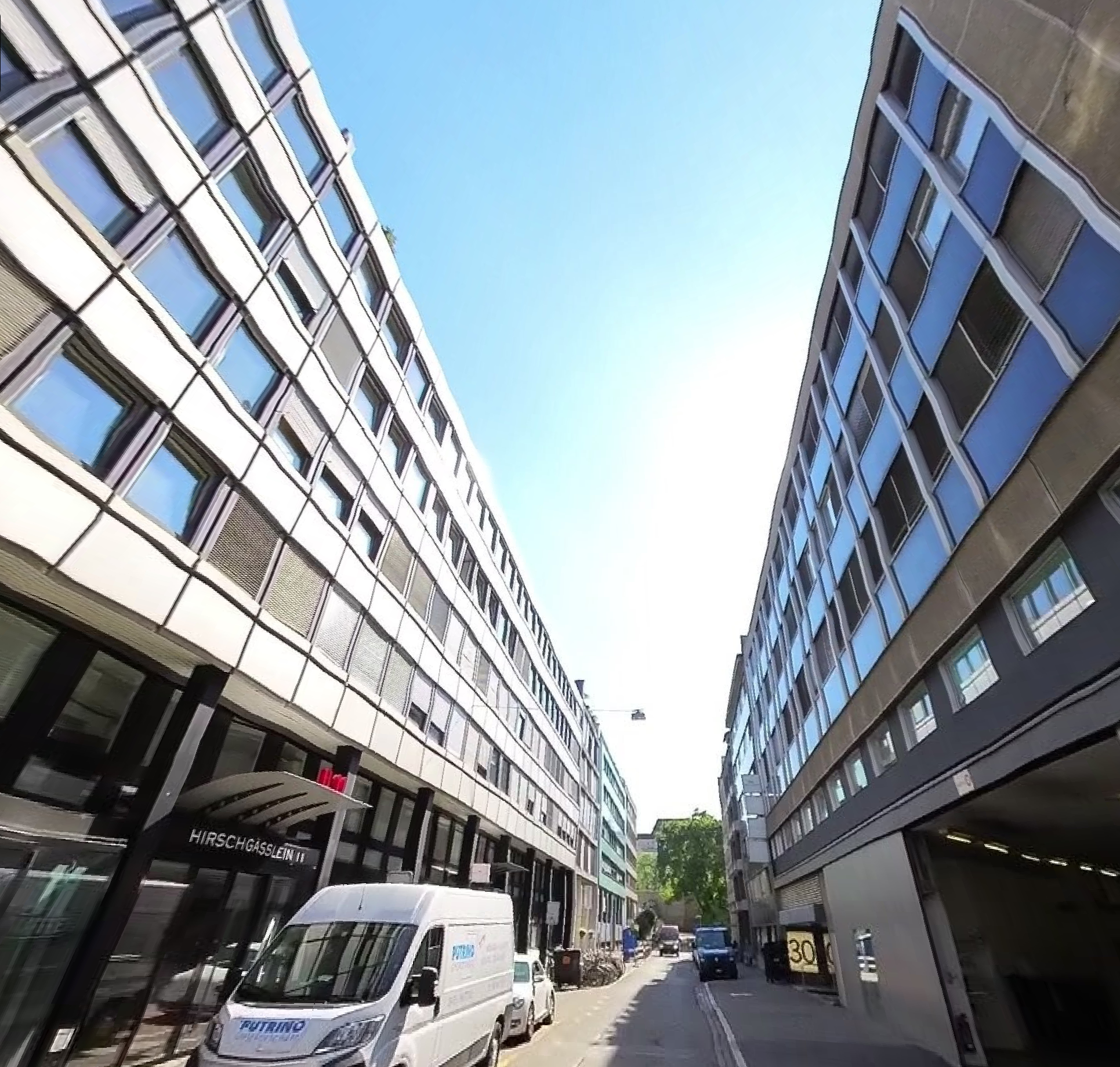

Office building in Basel
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Office building |
| Project Type | Commercial |
| Year of Completion | 2025 |
| Project Size | 501 – 1.000 |
| Number of KNX Devices Used | 101 – 300 |
| KNX Transmission Media | IP |
| Man Hours | 501 – 1.000 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Individual Room Control / Zone Control, Natural Ventilation
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering
- Other
- Automation and Remote Access - Internet Access, Remote Programming
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Wind and Rain Protection, Sun Tracing (interaction with HVAC / lighting)
Customers Description
The Hirschgässlein project in Basel features a KNX-based automation system designed to meet local energy efficiency regulations that require automatic shading control for HVAC systems exceeding 20 kW. Solar radiation is continuously monitored using pyranometric sensors to measure irradiance in W/m². When solar intensity surpasses 200 W/m² and the cooling system is active, all shutters automatically close and remain locked to prevent heat gain and reduce energy consumption.

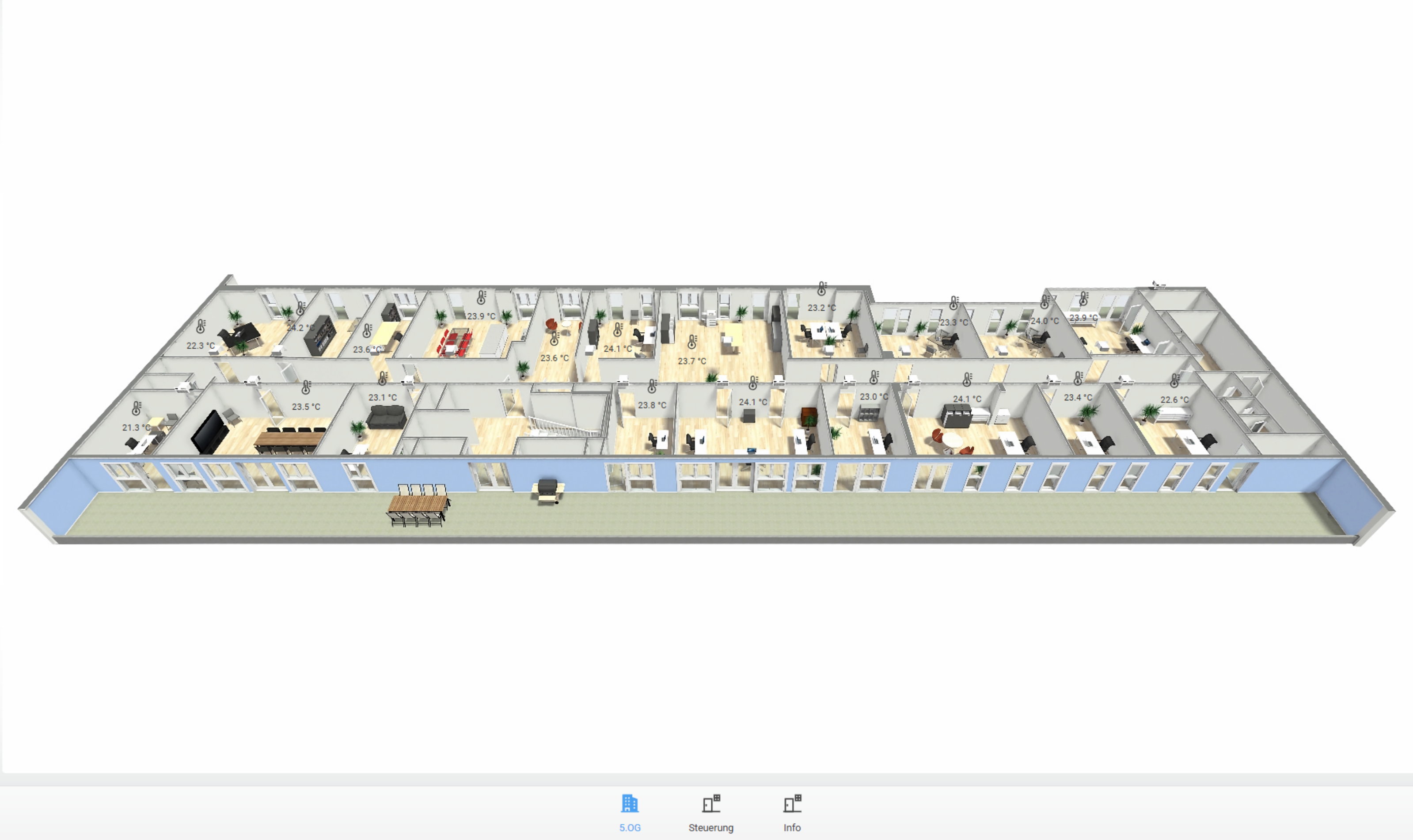

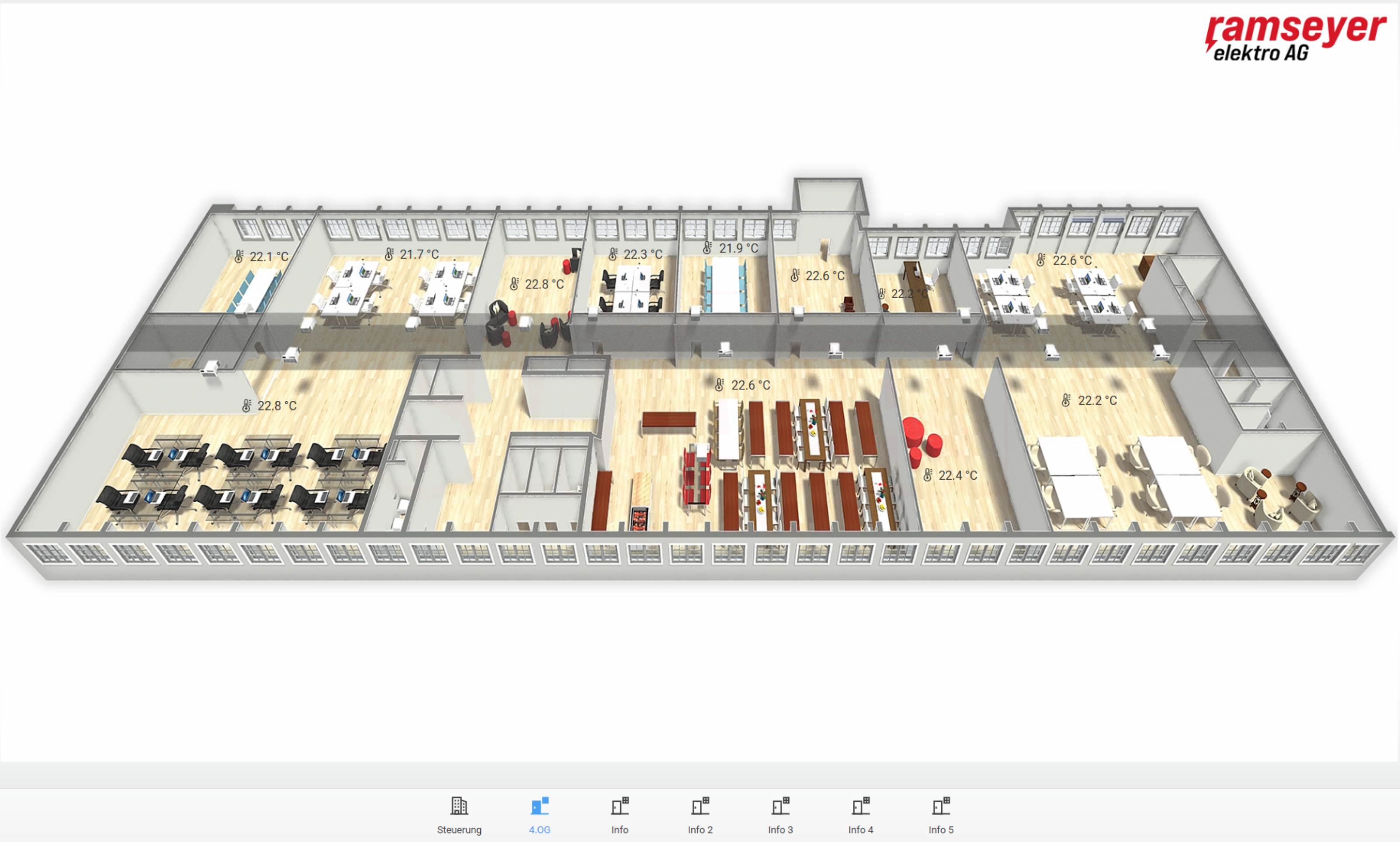

The integration of Ksenia provides window status monitoring, while presence sensors detect occupancy throughout the building. Eelectron keypads with integrated temperature sensors measure room temperature and allow manual shutter operation when permitted. All system logic is managed in ComfortClick, ensuring that air conditioning activates only if outdoor temperature exceeds 22 °C, indoor temperature exceeds 26 °C, and all windows are closed. Each room operates independently,with real-time 3D visualization.
